CHK
ADJ
REAR BODYWORK, MUDGUARD
3-2
REAR BODYWORK, MUDGUARD

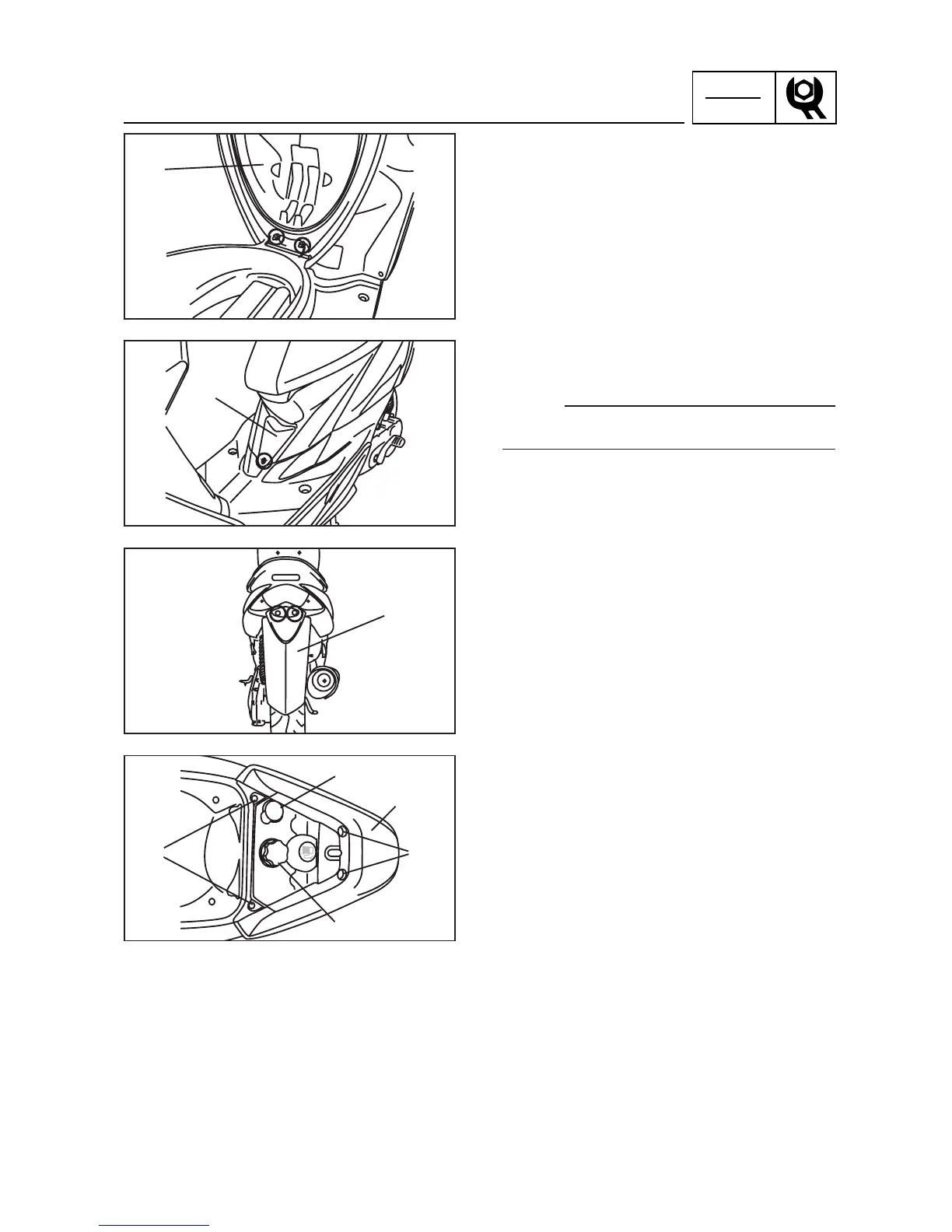

REMOVAL
1. Remove:
• seat
2. Remove:
• central panel
NOTE:
Slide the panel to the front.
3. Remove:
• rear fender
4. Remove:
• oil tank cap and grommet
• fuel tank cap and grommet
• passenger hand grap bolts and collars
• passenger hand grap
oil
