COOL

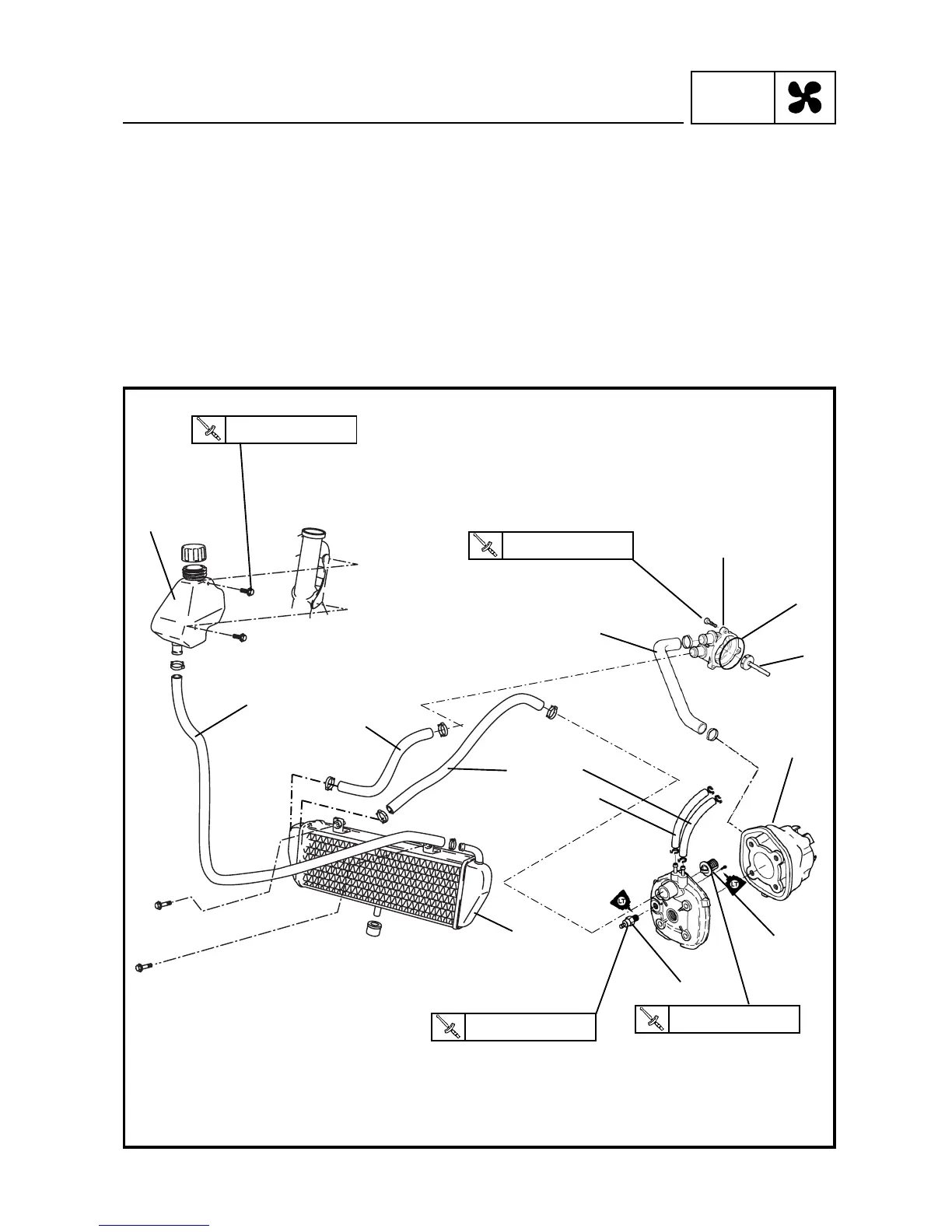

RADIATOR AND WATER PUMP
5-1
EAS00454
COOLING SYSTEM (CS50Z only)
RADIATOR AND WATER PUMP
Radiator
Radiator inlet hose
Radiator outlet hose
Carburetor inlet hose
Carburetor outlet hose
Impeller
Water pump cover
Water pump outlet hose
O-ring
10 Reservoir tank
11 Reservoir tank hose
12 Thermostatic valve
13 Thermo switch
11
10
9 Nm (0.9 m • kg)
7 Nm (0.7 m • kg)
16 Nm (1.6 m • kg)
13
5 Nm (0.5 m • kg)
12
