HANDLEBAR AND STEERING
7-28
EAS00673

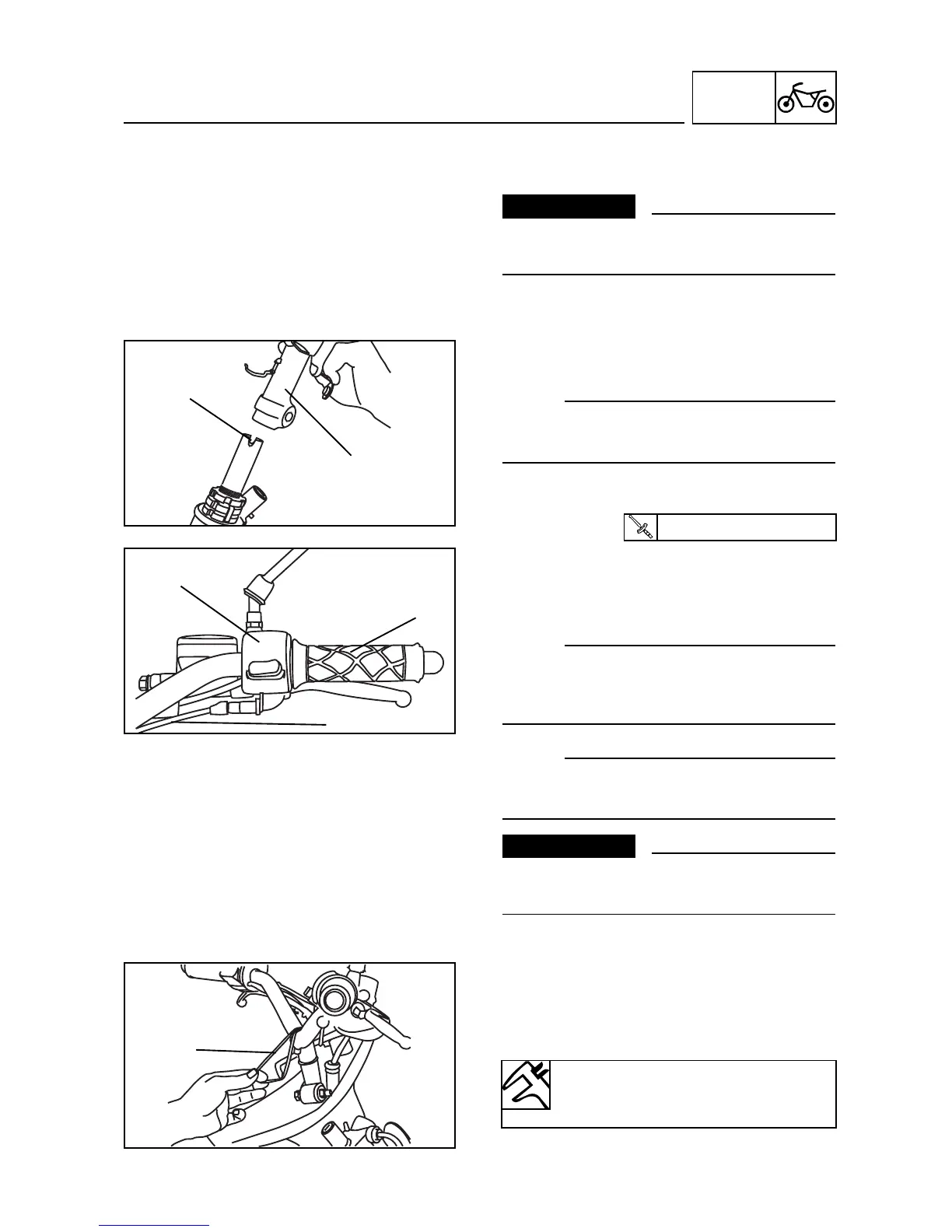

INSTALLING THE HANDLEBAR
1. Stand the scooter on a level surface.
ss
WARNING
Securely support the scooter so that there
is no danger of it falling over.
2. Install:
• handlebar 
NOTE:
Align the slot a on the steering with the pin on
the handlebar.
3. Tighten:
• handlebar securing nut
4. Install:
• right handlebar switch 
• throttle cable 
• throttle grip 
NOTE:
Lubricate the inside of the throttle grip with a
thin coat of lithium-soap-based grease and
install it onto the handlebar.
NOTE:
• Align the projection on the right handlebar
switch with the hole on the handlebar.
ss
WARNING
Make sure the throttle grip operates smo-
othly.
5. Fasten:
• wire harness
(fixed to steering head with a strap )
6. Adjust:
• throttle cable free play
Refer to “ADJUSTING THE THROTTLE
CABLE FREE PLAY” in chapter 3.
42.5 Nm (4.25 m • kg)
Throttle cable free play (at the
flange of the throttle grip)
2 ~ 5 mm



a


