ENG

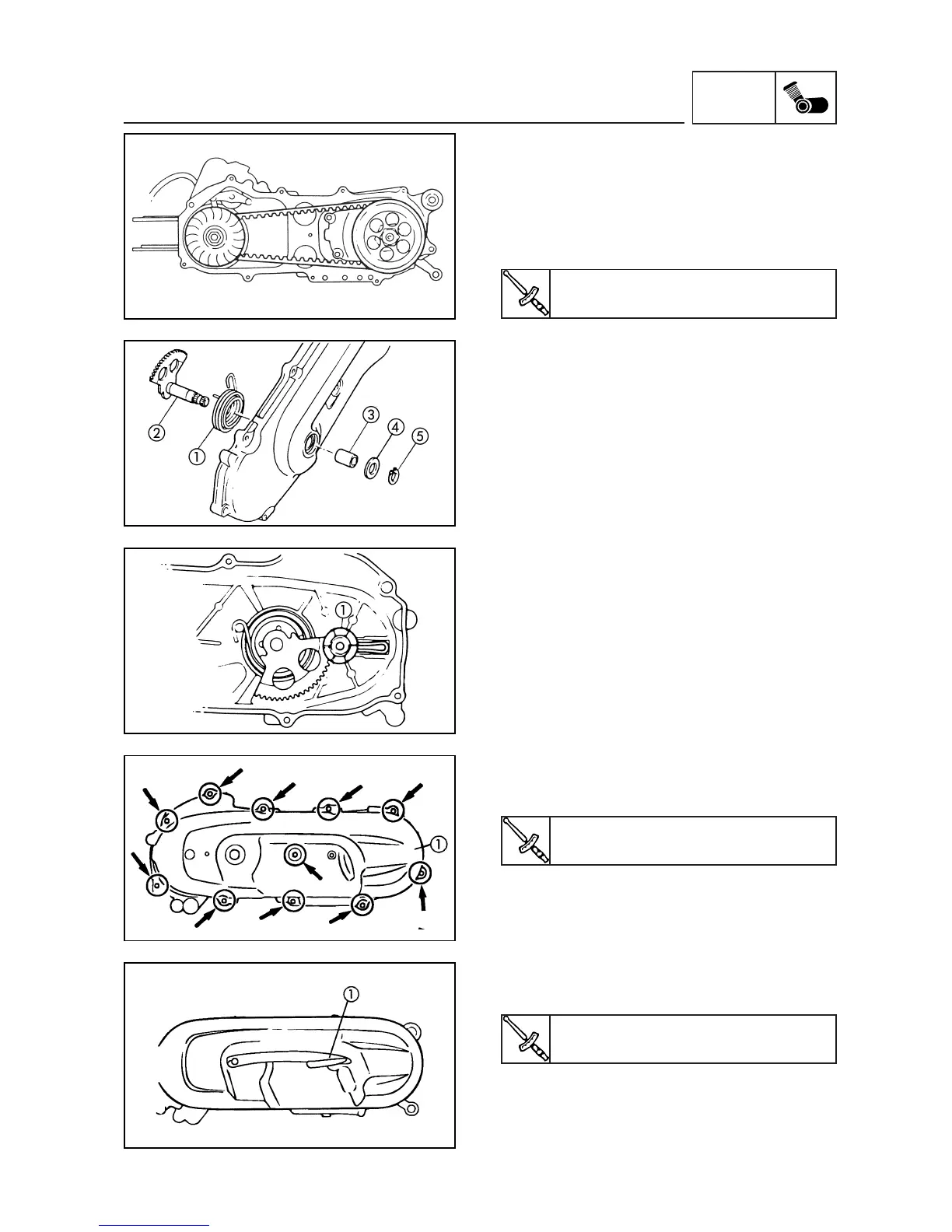

ENGINE ASSEMBLY AND ADJUSTMENT

4-36

8. Adjust:

• v-belt

Tense the V-belt by turning the primary she-

ave several times.

9. Install:

• fan (CS50 only)

Side right

INSTALLING THE KICKSTARTER

1. Install:

• return spring 

• kick shaft 

• collar 

• flat washer 

• circlip 

2. Hook on:

• return spring

(on kick gear and hub)

3. Install:

• kick pinion gear 

4. Install:

• crankcase cover 

5. Install:

• kick crank 

Screw (fan)

7 Nm (0.7 m • kg)

Screw (crankcase cover)

9 Nm (0.9 m • kg)

Bolt (kick crank)

10 Nm (1.0 m • kg)
