ELEC
ELECTRIC STARTING SYSTEM
8-16
EAS00767

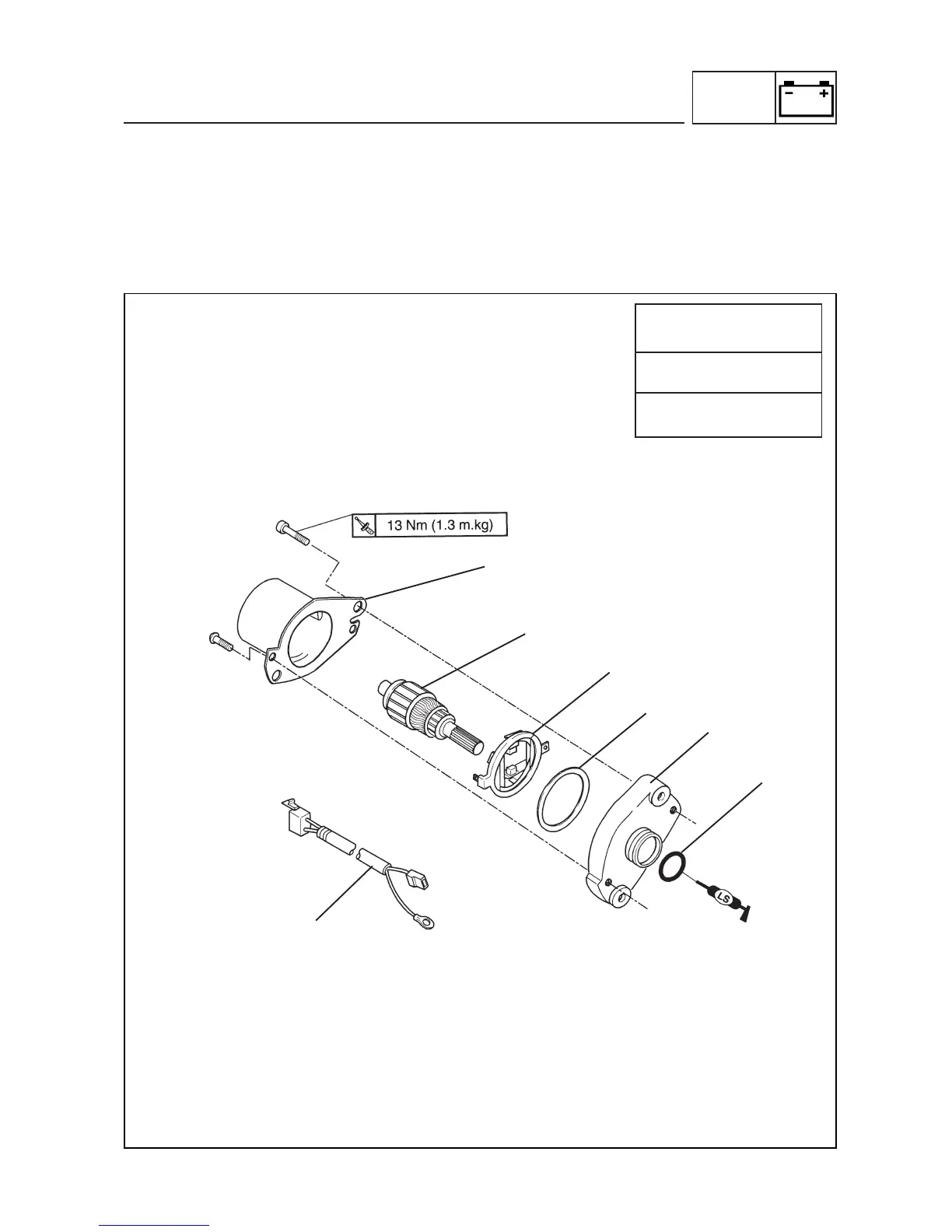

STARTER MOTOR
O-ring
Starter motor front cover
Rubber seal
Brush holder / brushes
Armature assembly
Starter motor rear cover
Wiring
Brush wear limit:
0.9 mm
Commutator wear limit:
14.8 mm
Mica lower cut-off:
1.15 mm
