CHAS
HANDLEBAR AND STEERING
7-24
EAS00666

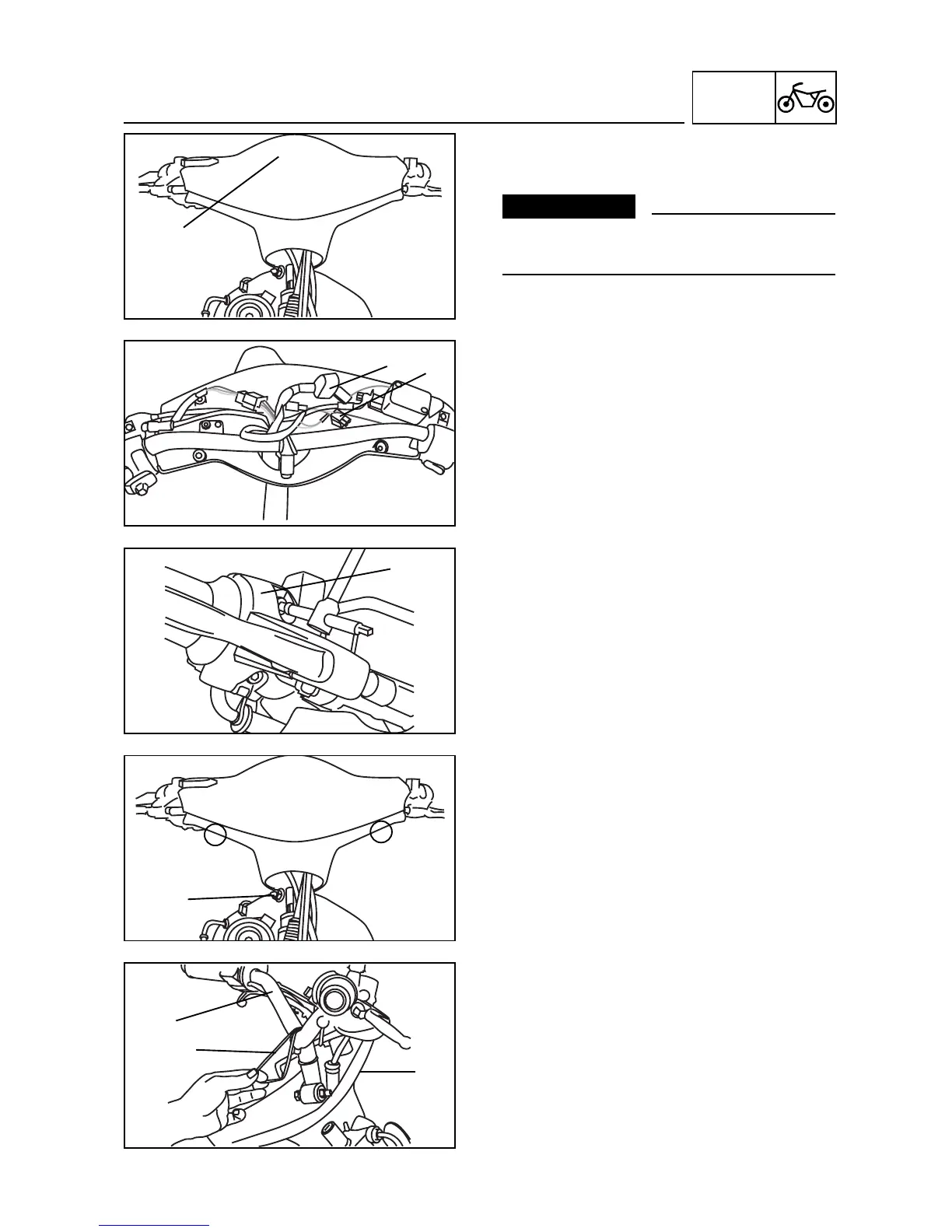

REMOVING THE HANDLEBAR
1. Stand the scooter on a level surface.
ss
WARNING
Securely support the scooter so that there
is no danger of it falling over.
2. Remove:
• front upper cowling
• front middle cowling
• legshield
• handlebar cover (upper)
3. Disconnect:
• meter coupler
• flasher relay
4. Disconnect
• handlebar switch couplers (left and right)
• brake switch connectors (front and rear)
• rear brake cable
5. Remove:
• handlebar switch (right)
6. Disconnect:
• throttle cable
7. Remove:
• throttle grip
8. Loosen:
• handlebar securing nut
9. Remove:
• screws (lower handlebar cover)
10. Remove:
• wire harness fixed strap
11. Remove:
• handlebar
• handlebar cover (lower)
