ENG
ENGINE ASSEMBLY AND ADJUSTMENT
4-31

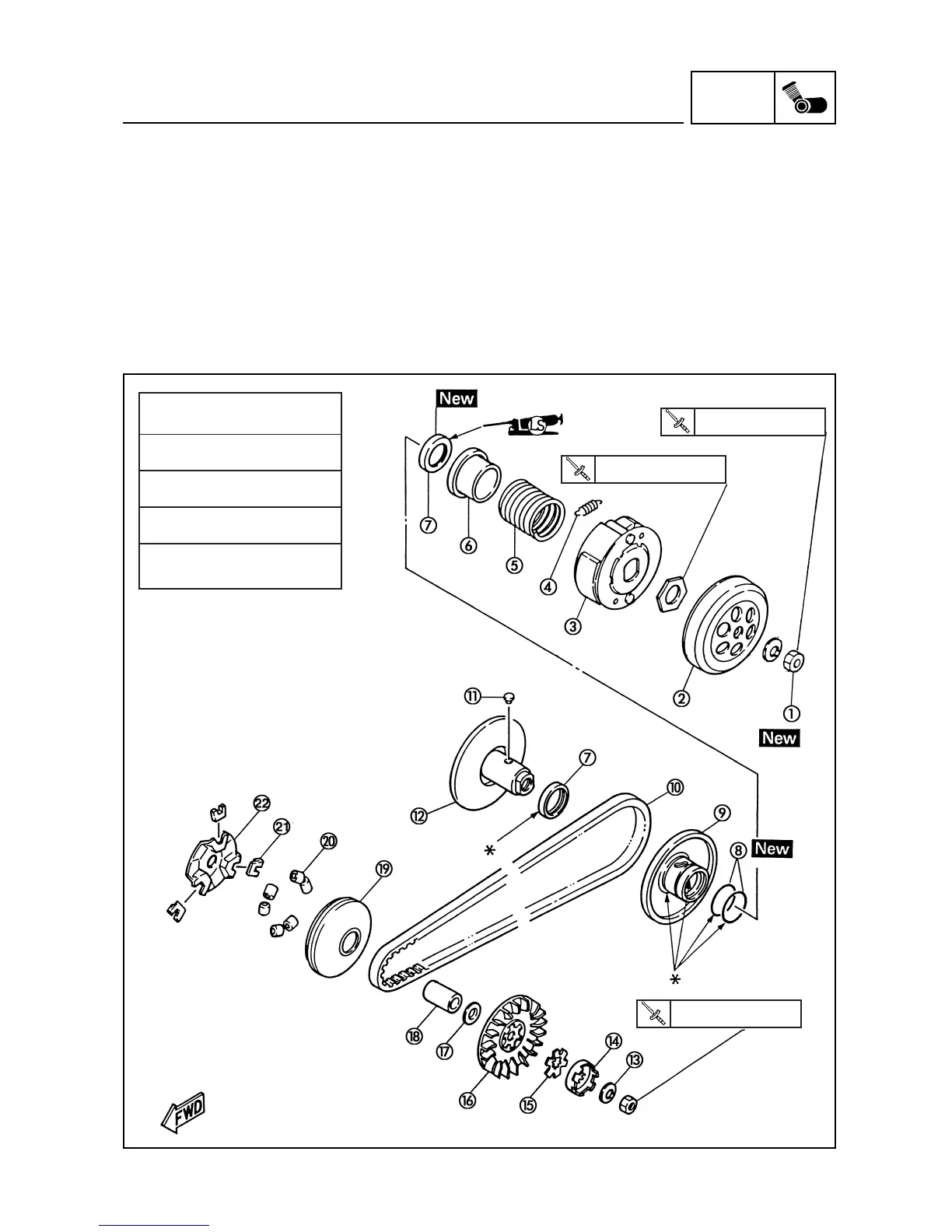

PRIMARY AND SECONDARY SHEAVE
Nut
Clutch drum
Clutch plate
Clutch spring
Spring
Spring seat
Oil seal
O-ring
Secondary sliding sheave
V-belt
Guide pin
Secondary fixed sheave
Conical washer
One-way clutch
Special washer
Primary fixed sheave
Shim
Collar
Primary sliding sheave
Weight
21 Slider
22 Cam
*: Apply assembly lube
50 Nm (5.0 m • kg)
40 Nm (4.0 m • kg)
33 Nm (3.3 m • kg)
Free length limit of spring:
29.9 mm
Waste limit of clutch housing:
107.4 mm
Waste limit of clutch shoes:
1.0 mm
Trapezoidal belt waste limit:
15.7 mm
Variator roller limit:
14.5 mm
