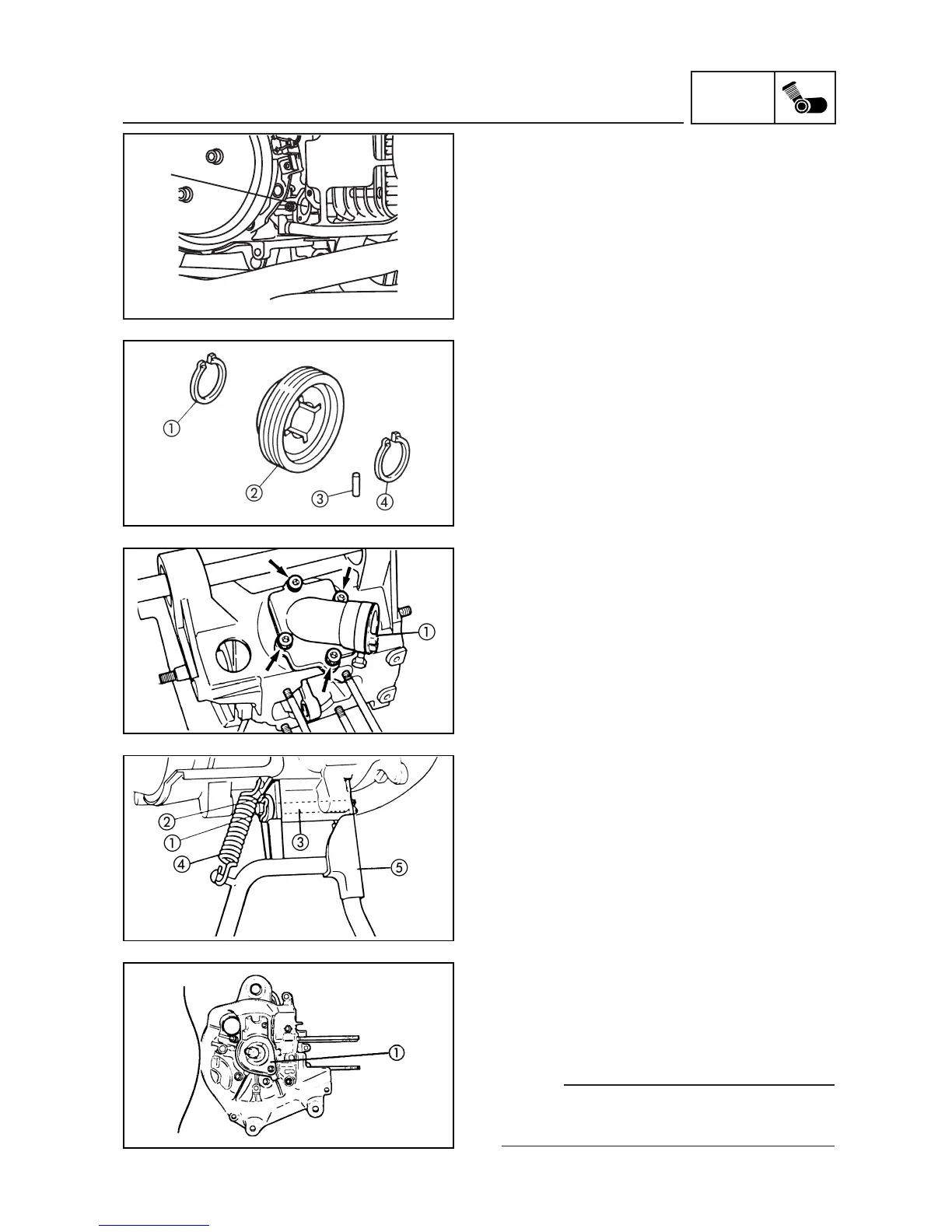

AUTOLUBE OIL PUMP
1. Remove:
• autolube oil pump 
2. Remove:
• circlip 
• pump drive gear 
• pin 
• circlip 
3. Remove:
• carburetor joint 
• reed valve
• reed valve gasket
REMOVING THE CENTERSTAND
1. Remove:
• clip 
• rubber washer 
• axle 
• spring 
• central stand 
DISASSEMBLING THE CRANKCASE AND
CRANKSHAFT
1. Remove:
• oil seal stopper 
• screws (crankcase)
NOTE:
Loosen each screw 1/4 of a turn and remove
them after loosening them.

