ELEC

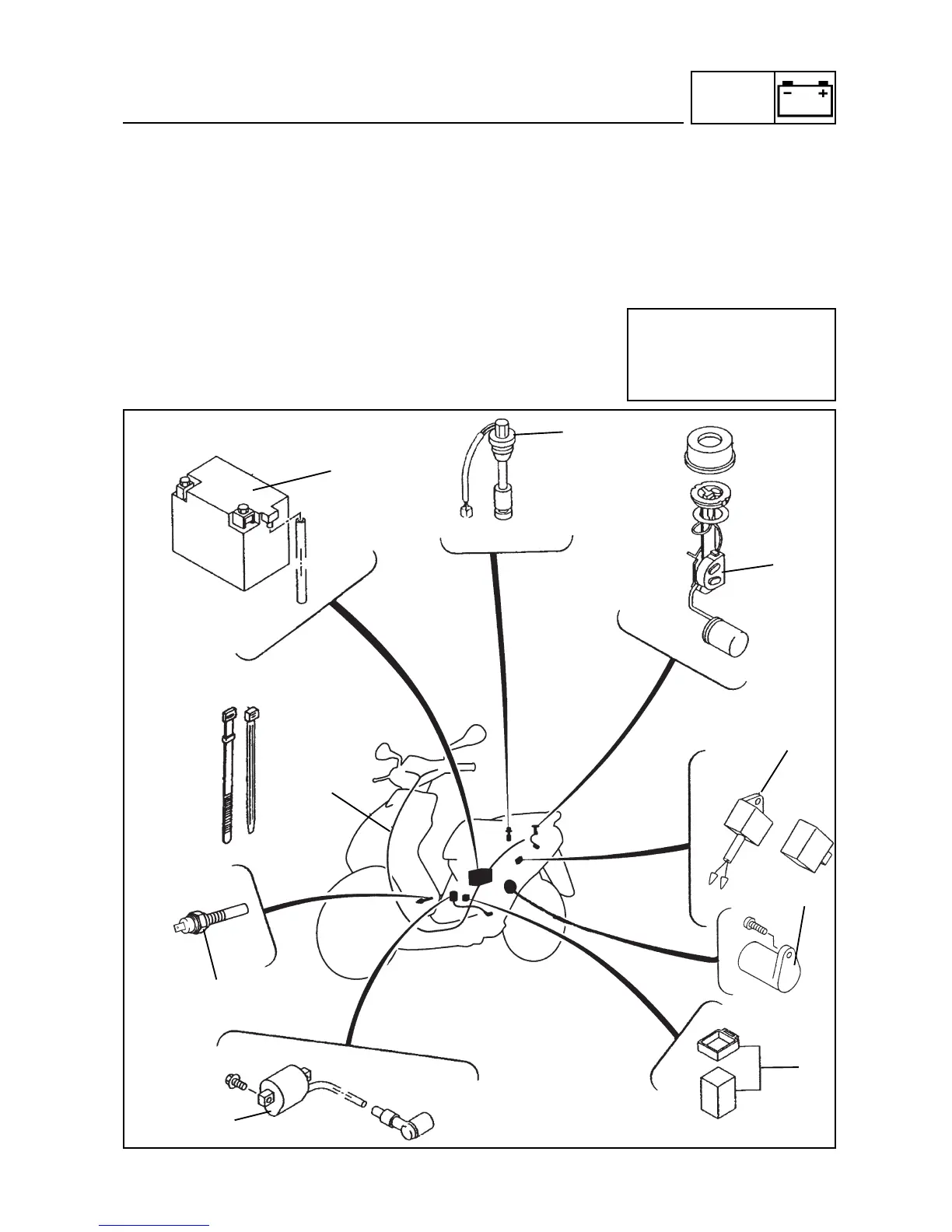

ELECTRICAL COMPONENTS
8-1
EAS00729
ELECTRICAL SYSTEM
ELECTRICAL COMPONENTS
Wire harness
Starter motor
DC-CDI Unit
Engine oil level gauge
Starter relay
Fuel sender gauge
Battery
Ignition coil
Temperature sender (CS50Z only)
Ignition coil:
Primary coil resistance:
0.56 ~ 0.84 Ω at 20 °C
Secondary coil resistance:
5.68 ~ 8.52 Ω at 20 °C
