ENGINE REMOVAL
4-1
ENGINE
ENGINE REMOVAL
COVER REMOVAL
1. Remove:
• center cover
• helmet box
Refer to “REAR BODYWORK, MUD-
GUARD” in chapter 3.

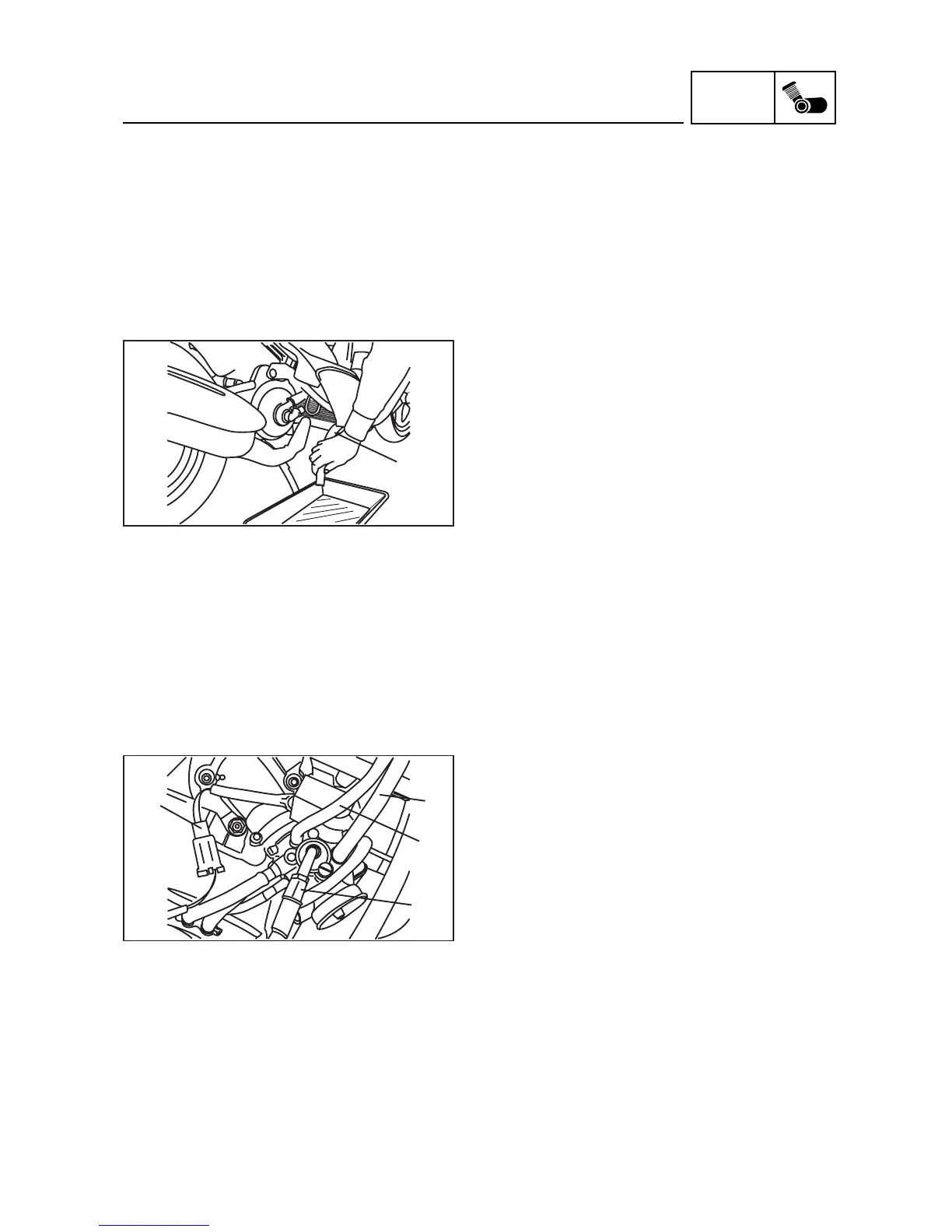

COOLING SYSTEM (CS50Z only)
1. Disconnect:
• coolant hose
(on water pump cover)
Drain the coolant
• coolant hose (on cylinder head)
CABLES, LEADS AND HOSES
1. Loosen:
• rear axle nut
2. Disconnect:
• rear brake cable
3. Disconnect:
• starter motor leads (positive/negative leads)
4. Disconnect:
• DC-CDI magneto lead
• spark plug cap
• temperature sensor lead on the cylinder
head
• autochoke lead
• throttle cable (with throttle valve)
• vaccum hose
• fuel hose
5. Disconnect:
• oil hose delivery (oil tank-oil pump)
