ENG

ENGINE DISASSEMBLY

4-7

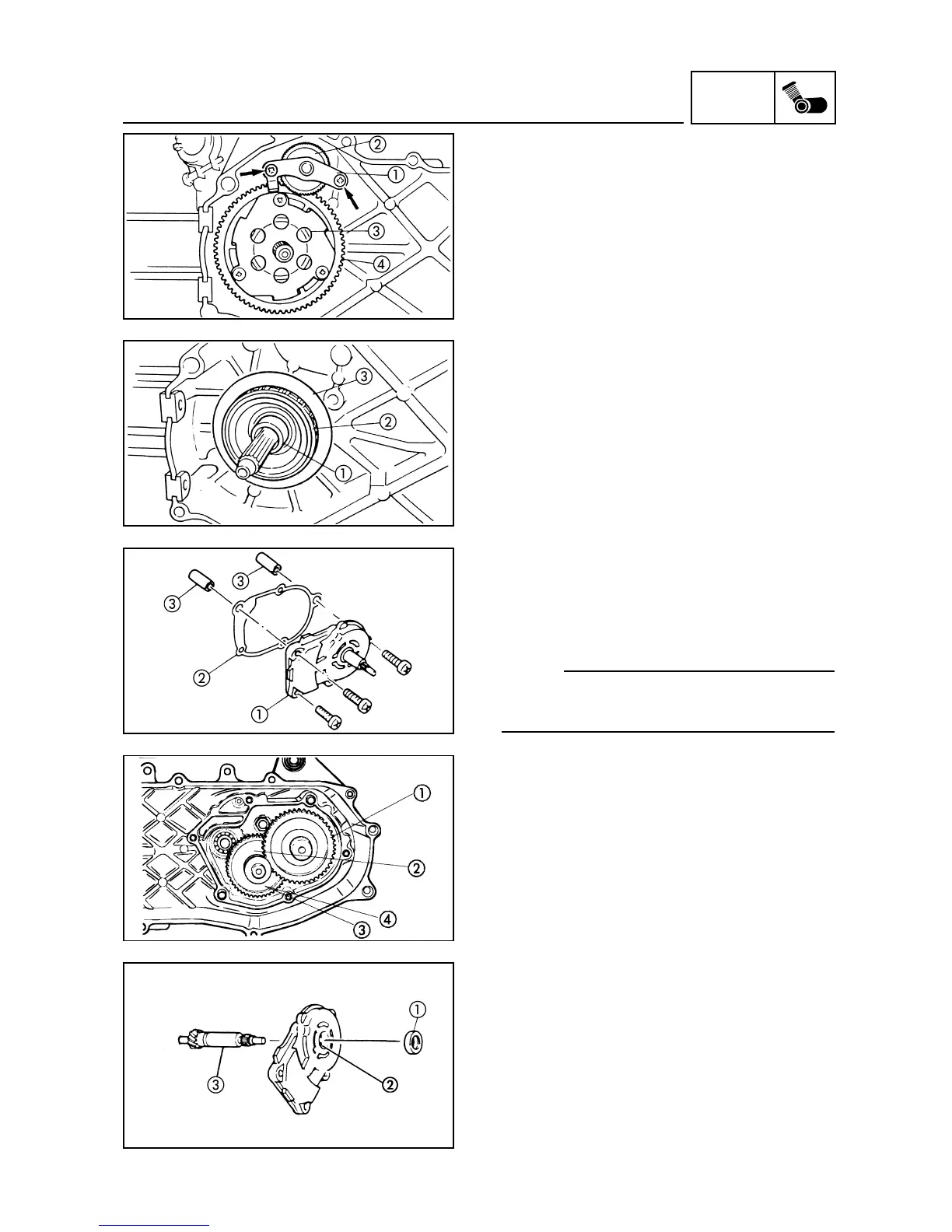

REMOVING THE STARTER SYSTEM

1. Remove:

• plate  (intermediate gearing)

• intermediate gearing 

• starter clutch assembly 

• starter wheel gear 

2. Remove:

• spacer 

• bearing 

• washer 

• starter motor

TRANSMISSION

1. Remove:

• transmission box cover 

• gasket 

• dowel pins 

NOTE:

Before proceeding to disassemble the trans-

mission cover, empty the oil.

2. Remove:

• main shaft 

• drive shaft 

• flat washer 

• conical spring washer 

3. Remove:

• oil seal 

• bearing 

• secondary sheave axle 
