ENG

ENGINE ASSEMBLY AND ADJUSTMENT

4-22

ENGINE ASSEMBLY AND ADJUSTMENT

EAS00381

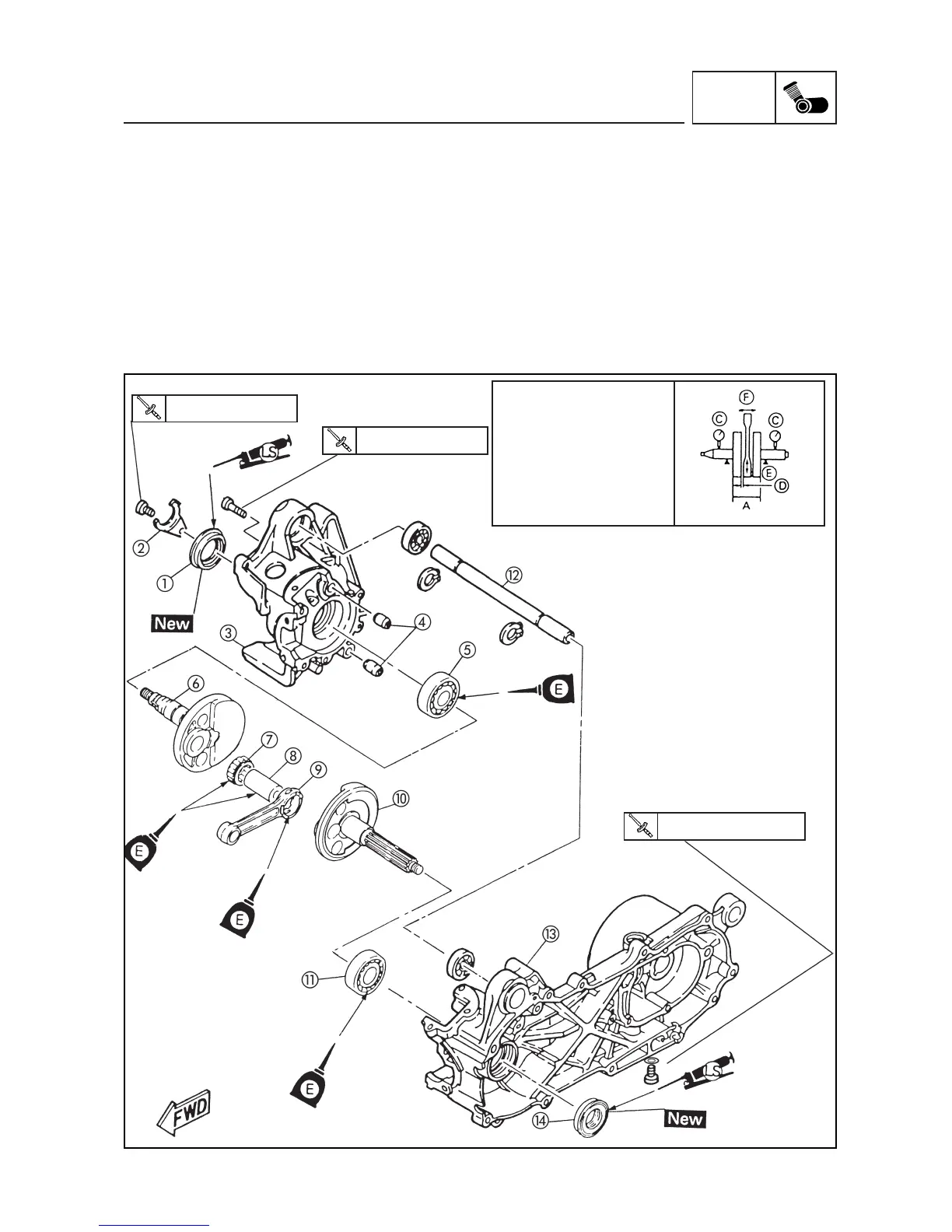

CRANKSHAFT AND CRANKCASE

 Oil seal

 Oil seal catch

 Crankcase (right)

 Dowel pin

 Bearing

 Crankshaft (right)

 Bearing

 Crankshaft pin

 Connecting rod

 Crankshaft (left)

 Bearing

 Engine mounting spacer

 Crankcase (left)

 Oil seal

Crankshaft:

A: 37.90 ~ 37.95 mm

C: 0.03 mm

D: 0.2 ~ 0.5 mm

E: 0.004 ~ 0.017 mm

F: 0.4 ~ 0.8 mm

9 Nm (0.9 m • kg)

13 Nm (1.3 m • kg)

17.5 Nm (1.75 m • kg)
