CHAS
FRONT FORK
7-17
EAS00646

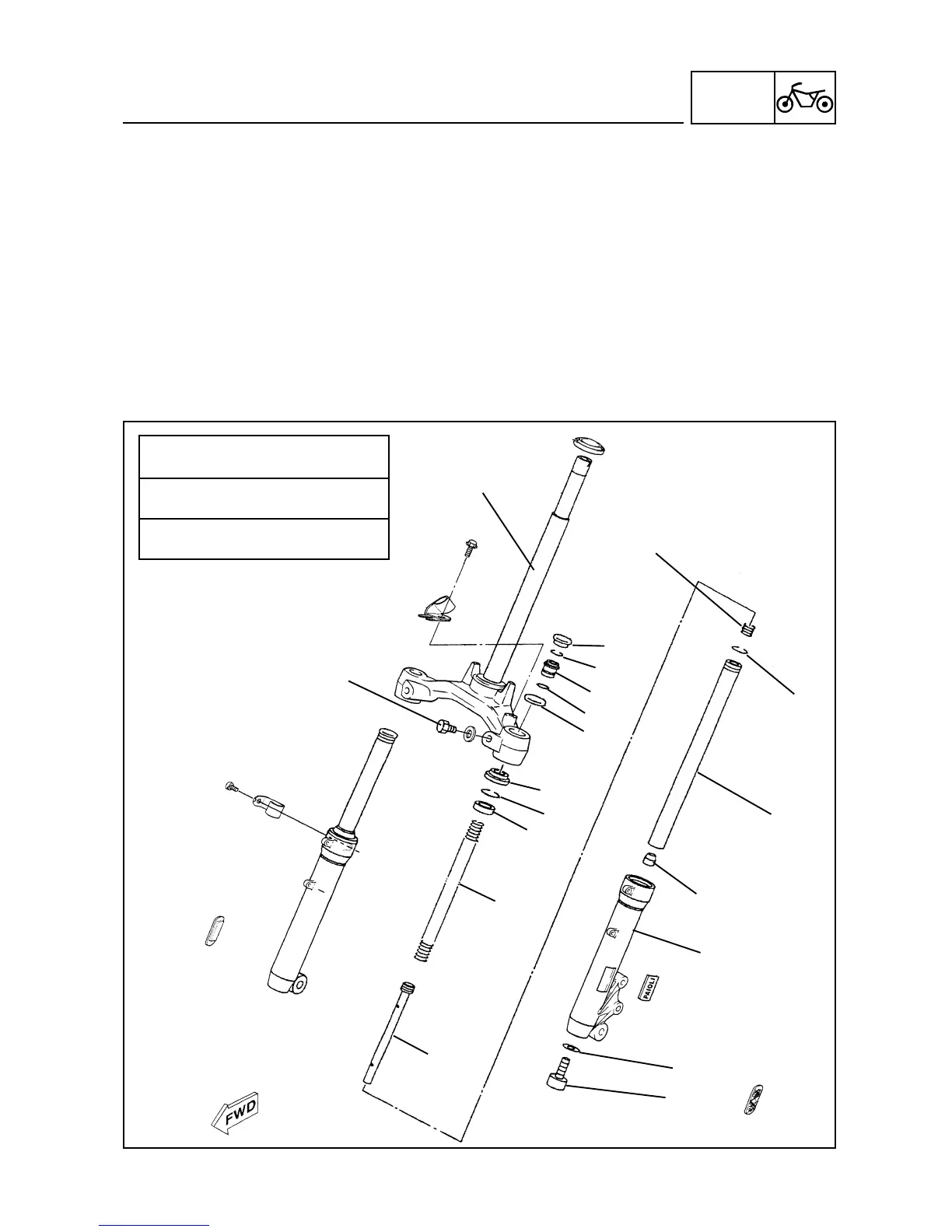

FRONT FORK
Steering bracket
Bolt
Rubber cap
Circlip
Spring stopper
O-ring
Collar
Dust seal
Oil seal circlip
10 Oil seal
11 Spring
12 Piston
13 Rebound spring
14 Circlip
15 Inner tube
16 Oil lock piece
17 Outer tube
18 Washer
19 Bolt
Fork spring free lenght:
224 mm
Fork oil capacity:
45 cc ± 1 cc
Oil grade:
SAE 10 W oil fork or equivalent
13
14
15
16
17
18
19
10
11
12
