CHAS

HANDLEBAR AND STEERING

7-25

EAS00678

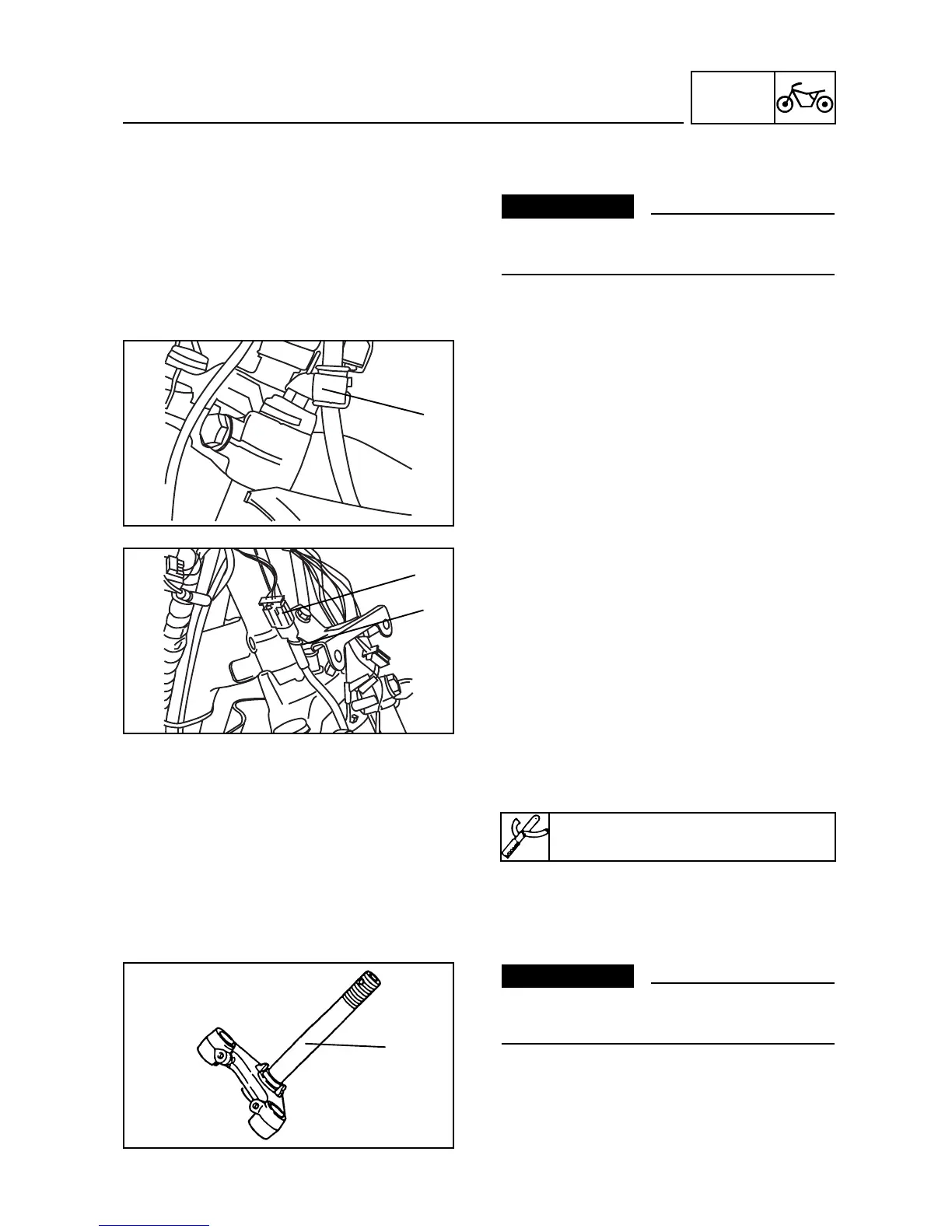

REMOVING THE LOWER BRACKET

1. Stand the scooter on a level surface.

WARNING

Securely support the scooter so that there

is no danger of it falling over.

2. Remove:

• handlebar

3. Remove:

• brake caliper

• brake hose holder 

4. Disconnect:

• speed sensor coupler 

5. Remove:

• clamp 

6. Remove:

• ring nut (upper)

(with the ring nut wrench)

7. Remove:

• lock washer

• ring nut (center)

• rubber washer

• ring nut (lower)

WARNING

Securely support the lower bracket so that

there is no danger of it falling.

8. Remove:

• lower bracket 

(with wheel and front forks)

Ring nut wrench

90890-01403






