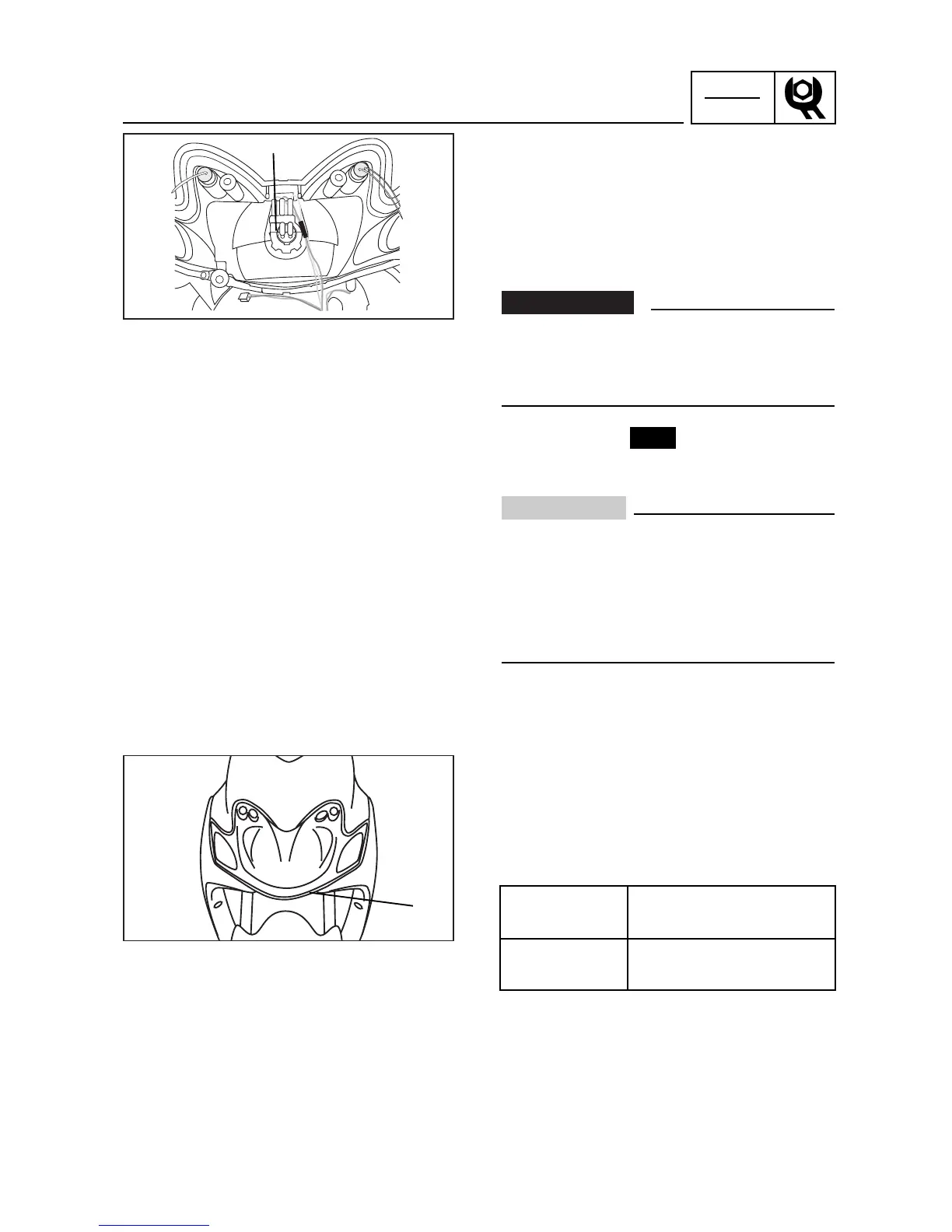

REPLACING THE HEADLIGHT BULB/
ADJUSTING THE HEADLIGHT BEAM
3-31
BYG
EAS00182
REPLACING THE HEADLIGHT BULB
1. Remove:
• front upper cowling
2. Remove:
• headlight bulb holder 
3. Remove:
• headlight bulb
ss
WARNING
Since the headlight bulb gets extremely hot,
keep flammable products and your hands
away from the bulb until it has cooled
down.
4. Install:
• headlight bulb
Secure the new headlight bulb with the
headlight bulb holder.
CAUTION:
Avoid touching the glass part of the head-
light bulb to keep it free from oil, otherwise
the transparency of the glass, the life of the
bulb and the luminous flux will be adversely
affected. If the headlight bulb gets soiled,
thoroughly clean it with a cloth moistened
with alcohol or lacquer thinner.
5. Install:
• headlight bulb holder
6. Install:
• front upper cowling
EAS00186
ADJUSTING THE HEADLIGHT BEAM
1. Adjust:
• headlight beam (vertically)

a. Turn the adjusting screw  in direction a
or b .

NEW
Direction a Headlight beam is
raised.
Direction b Headlight beam is
lowered.



a

b

