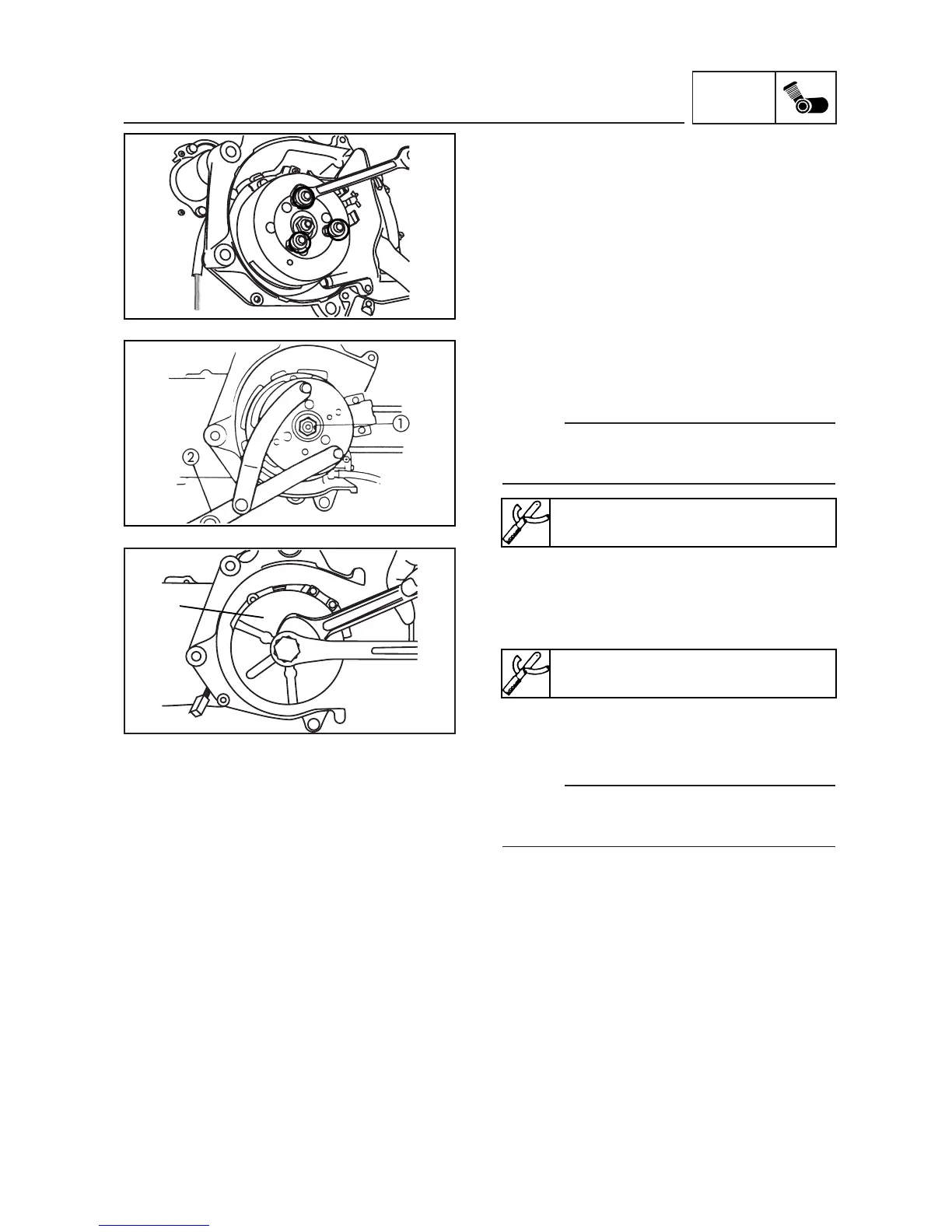

ENGINE DISASSEMBLY
4-8
DC-CDI MAGNETO
1. Remove:
• bolts (CS50Z only)
2. Remove:
•nut  (rotor)
• flat washer
NOTE:
Support the rotor to loosen the nut with the
engine flywheel holder .
3. Remove:
• rotor
• woodruff key
Use the flywheel puller 
• stator assembly
• gasket
NOTE:
Attach the flywheel puller using the flywheel
thread holes.
Flywheel holder
90890-01235
Flywheel puller
90890-01362

