CHAS
FRONT BRAKE
7-9
NOTE:

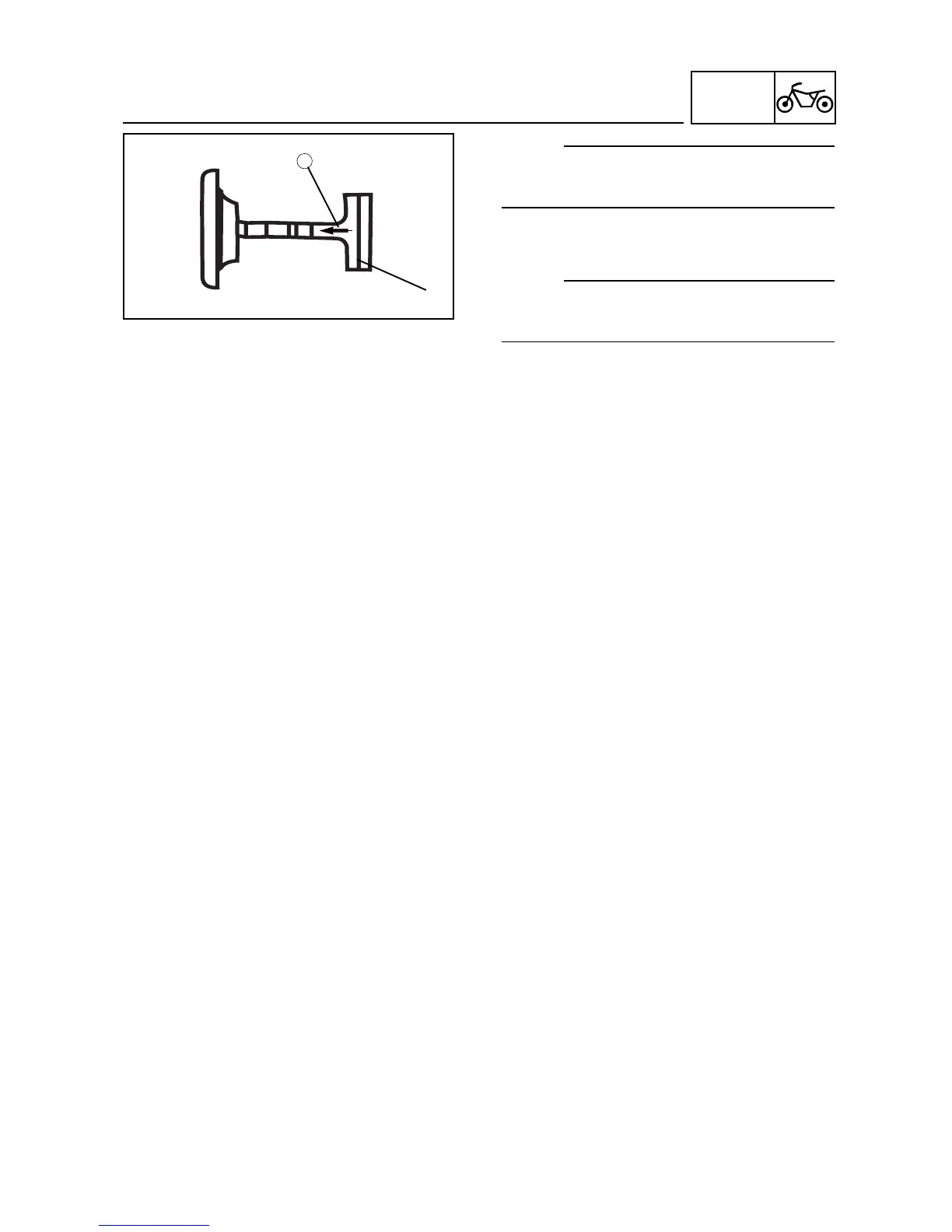

The triangle mark a on the brake pad shim
must point in the direction of disc rotation.
e. Install new brake pads and a new brake pad
spring .
NOTE:
The arrow mark b of the brake pad spring
must point in the direction of disc rotation.
5. Install:
• brake pad pins
• brake pad clips
• brake pad cover
6. Check:
• brake fluid level
Below the minimum level mark
Add the
recommended brake fluid to the proper
level.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” in chapter 3.
7. Check:
• brake lever operation
Soft or spongy feeling
Bleed the brake
system.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” in chapter 3.
