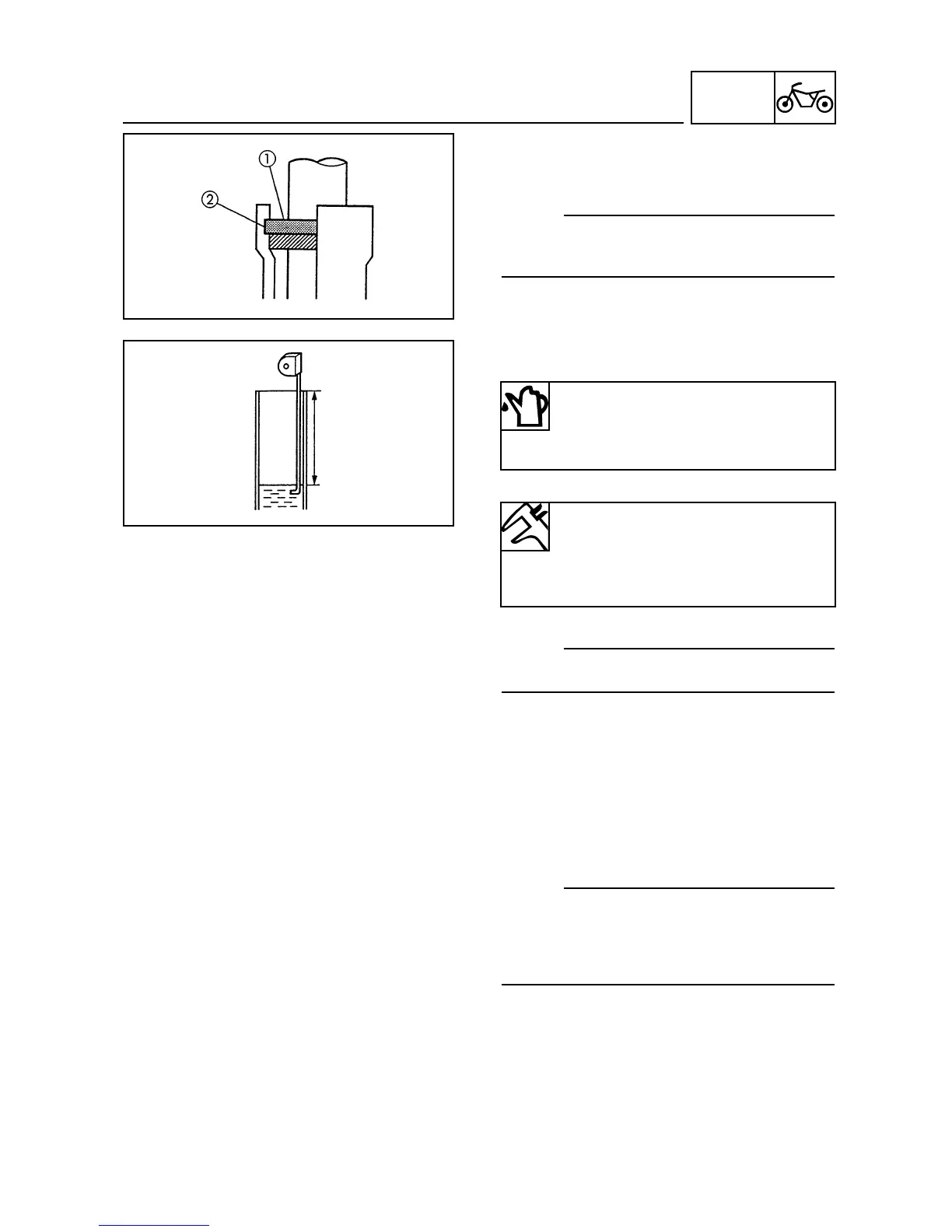

CHAS

FRONT FORK

7-21

3. Install:

• circlip 

• dust seal

NOTE:

Couple the circlip correctly on the groove of

the outer tube .

4. Fill:

• fork oil

NOTE:

Place the fork in a vertical position.

5. Install:

• fork spring

• collar

• spring stopper

• circlip

• rubber cap

NOTE:

• Before installing the spring stopper, apply

grease to the o-ring.

• Couple the circlip correctly on the inner tube

groove.

Quantity (each front fork leg)

45 cc

Recommended oil

SAE 10W or equivalent

From fork leg oil level (from the

top of the inner tube, with the

inner tube fully compressed and

without the fork spring)

105 mm
