1. DC-CDI magneto
2. DC-CDI. unit
3. Ignition coil
4. Spark plug
5. Main switch
6. Fuse
7. Battery
8. Rectifier/regulator
9. Starter relay
10. Starter motor
11. Start switch
12. Auto choke
13. Front brake switch
14. Rear brake switch
15. Tail/brake light
16. License light (for UK only)
17. Position light
18. Turn signal relay
19. Turn signal switch
20. Front turn signal light (Left)
21. Front turn signal light (right)
22. Rear turn signal light (Left)
23. Rear turn signal light (Right)
24. Dimmer switch
25. Headlight
26. Horn
27. Horn switch
28. Fuel sender
29. Thermo switch (for CS50Z only)
30. Oil level switch
31. Water temperature warning light
(for CS50Z only)
32. Fuel meter
33. Turn signal indicator light (right)
34. Turn signal indicator light (left)
35. High beam indicator light
36. Oil level warning light
37. Meter light
38. Clock
39. Speedometer
40. Speed sensor
COLOR CODE
B...............................BLACK
R...............................RED
L................................BLUE
G...............................GREEN
O...............................ORANGE
Y................................YELLOW
P................................PINK
Br. .............................BROWN
Ch.............................CHOCOLATE
Sb.............................SKY BLUE
Dg.............................DARK GREEN
B/Br...........................BLACK/BROWN
B/Y. ...........................BLACK/YELLOW
B/W...........................BLACK/WHITE
G/R...........................GREEN/RED
G/Y............................GREEN/YELLOW
Br/W..........................BROWN/WHITE
W/L...........................WHITE/BLUE
Y/R............................YELLOW/RED
L/G............................BLUE/GREEN
L/W...........................BLUE/WHITE
L/Y............................BLUE/YELLOW
R/Y............................RED/YELLOW

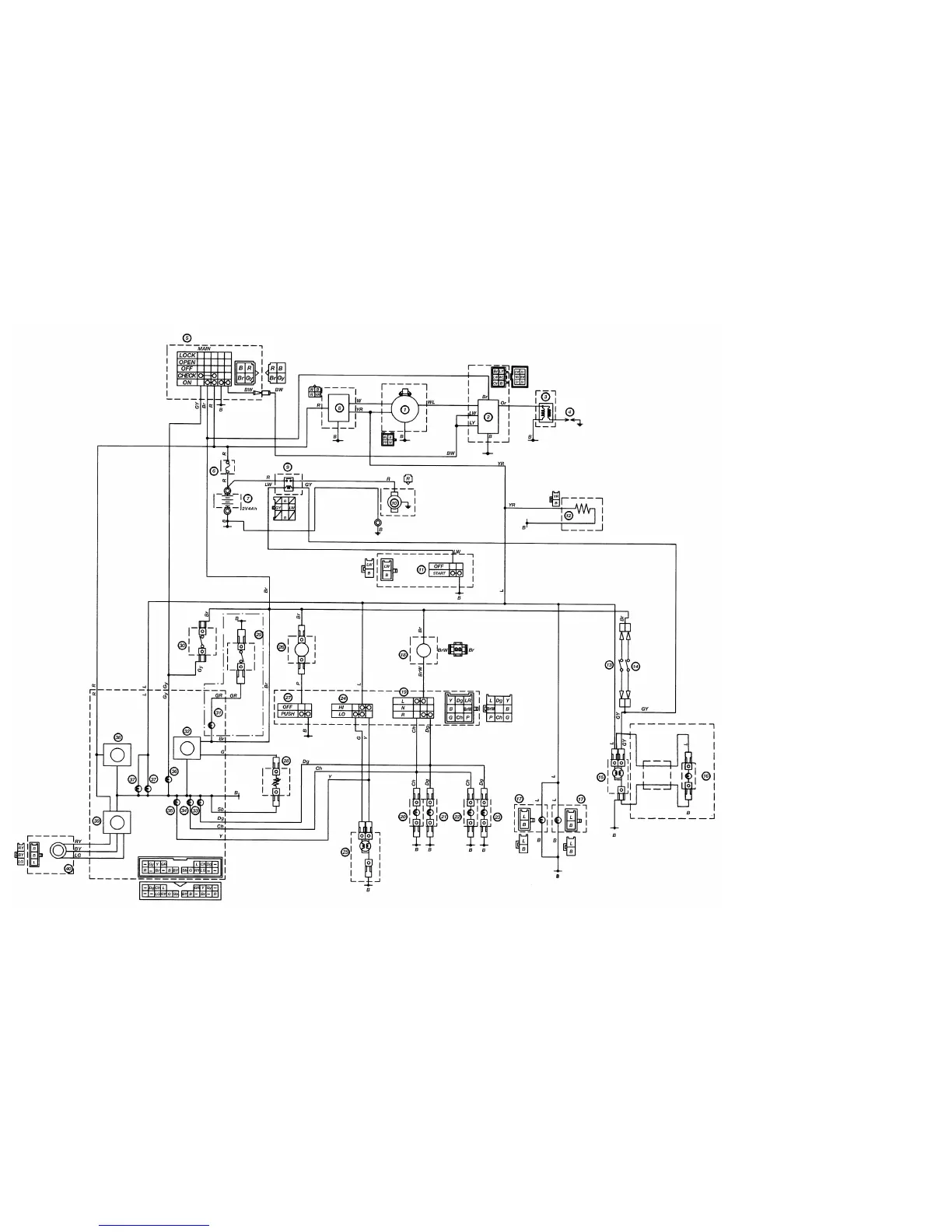

CS50/Z 2002 WIRING DIAGRAM
