4.4.3 Switch Settings
Use these switches to set the operating conditions for the MP2100M when the power is turned ON.
(1) Mode Switch 1 (S1)
* Set the CP number allocated to the communication process logic port. When using two or more
MP2100M, set a different CP number for each MP2100M.
(2) Reset Switch
This switch resets the MP2100M. This switch can be used to turn ON and OFF the MP2100M power without
turning the host computer ON and OFF.
2
3
4
5
6
7
8
1

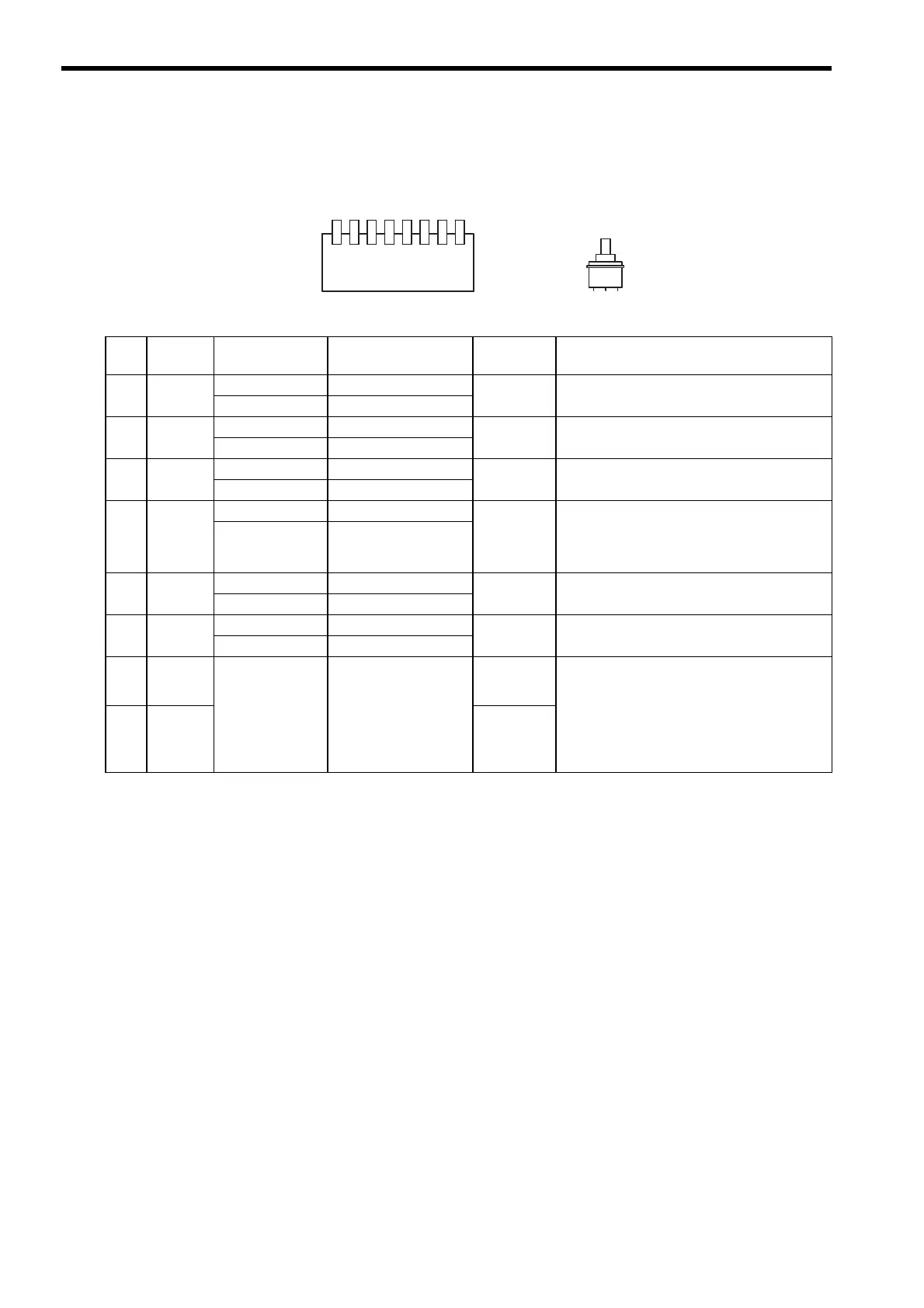

Mode switch 1 (S1) Reset switch
No. Name Status Function Factory
Setting
Details
1 TEST
ON
System use
OFF
Always leave set to OFF.
OFF
Normal operation
2MON
ON
System use
OFF
Always leave set to OFF.
OFF
Normal operation
3 CNFG
ON
Configuration mode
OFF
Set to ON to execute self-configuration for the
connected devices.
OFF
Normal operation
4INIT
ON
Memory clear OFF Set to ON to clear memory. If this switch is set
to OFF, the program stored in flash memory
will be executed. The S registers and M regis-
ters are cleared to 0.
OFF
Normal operation
5SUP
ON
System use
OFF
Always leave set to OFF.
OFF
Normal operation
6STOP
ON
User program stopped OFF Set to ON to stop the user program executing
and perform program debugging.
OFF
User program running
7SLOT0 SLOT
1
ON
ON
OFF
OFF
- SLOT0
- ON
- OFF
- ON
- OFF
CP4
CP3
CP2
CP1
OFF
Use to set CP number.
∗
8SLOT1
OFF
