YASKAWA MP2100 Series User Manual

3 System Startup
3.5.2 Operation
3-56
3.5.2 Operation

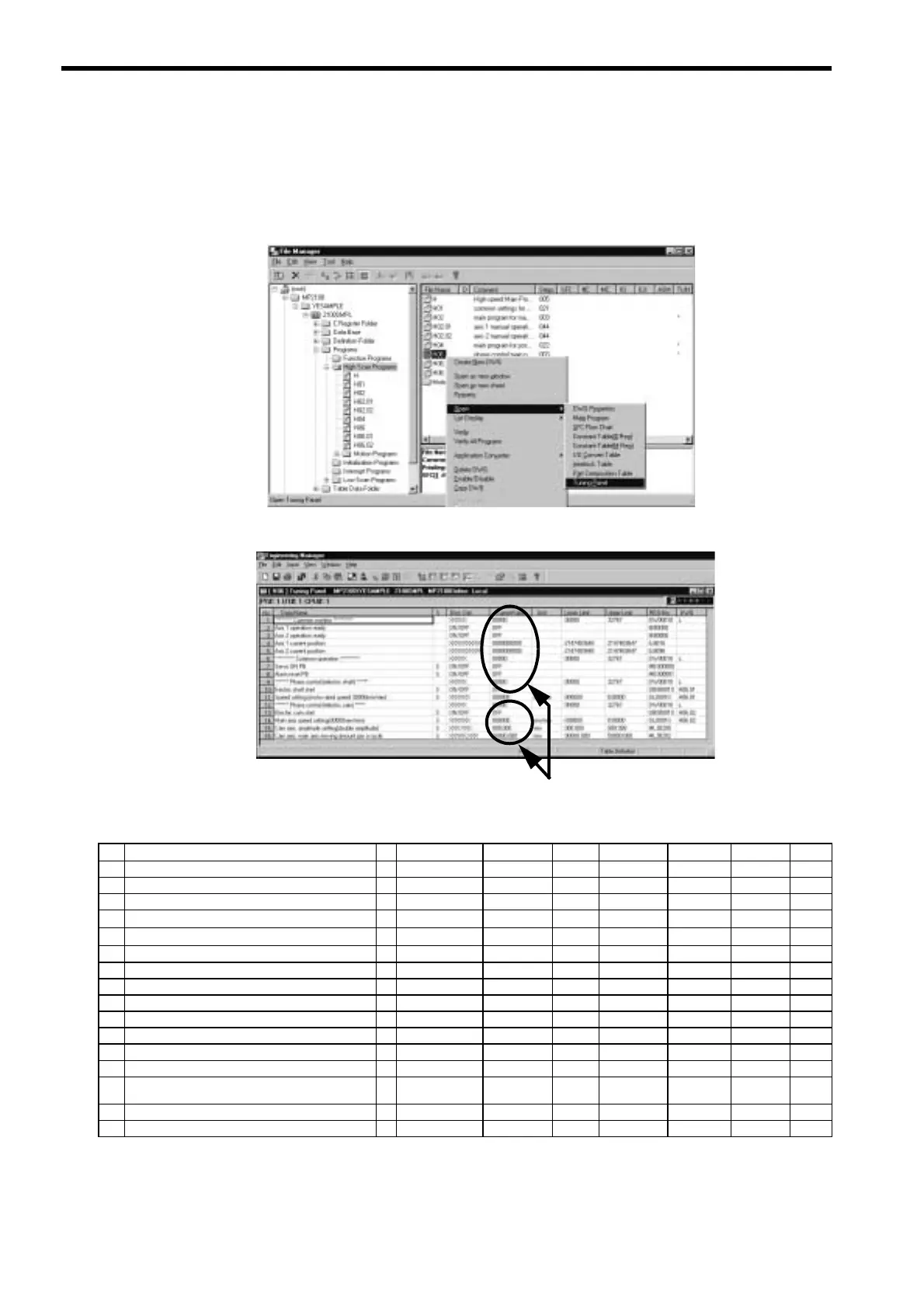

(1) Displays of Tuning Panel Window
1. Use the Tuning Panel Window for the H06 drawing to check operations, just as described in 3.4.2 Opera-
tion. Right-click the H06 drawing in the High Scan Programs Folder and select Open – Tuning Panel.
2. The drawing Tuning Panel Window for the H06 drawing will be displayed.
The details on the Tuning Panel Window display are shown in the following table.
Input position and current value.
No.
Data Name
S Display Definition Current Value Unit Lower Limit Upper Limit REG-NO. DWG
1
∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗
Common monitor
∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗
XXXXX 00000 00000 32767 DW00010 L
2 Axis 1 operation ready ON/OFF ON IB80000
3 Axis 2 operation ready ON/OFF ON IB80800
4 Axis 1 current position XXXXXXXXXX 0000000000
-2147483648
2147483647 IL8016
5 Axis 2 current position XXXXXXXXXX 0000000000
-
2147483648
2147483647 IL8096
6
∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗
Common operation
∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗
XXXXX 00000 00000 32767 DW00010 L
7 Servo ON PB S ON/OFF OFF MB300000
8 Alarm reset PB S ON/OFF OFF MB300001
9
∗∗∗∗∗∗∗∗∗∗
Phase control (Electronic shaft))
∗∗∗∗∗∗∗∗∗
XXXXX 00000 00000 32767 DW00010 L
10 Electronic shaft start S ON/OFF OFF DB000010 H06.01
11 Speed setting (motor rated speed: 30000mm/min) S XXXXXX 000000 mm/min -030000 030000 DL00010 H06.02
12
∗∗∗∗∗∗∗∗∗∗
Phase control (Electronic cam)
∗∗∗∗∗∗∗∗∗∗∗
XXXXX 0000 0000 32767 DW00010 L
13 Electronic cam start S ON/OFF OFF DB000010 H06.02
14 Main axis speed setting
(motor rated speed: 30000 mm/min)
S XXXXXX 00000 mm/min 00000 030000 DL00010 H06.01
15 Cam axis: amplitude setting (double amplitude) S XXX.XXX 010.000 mm 000.000 999.999 ML30200
16 Cam axis: main axis moving amount per cycle S XXXXX.XXX 00500.000 mm 00000.000 50000.000 ML30202
