YASKAWA MP2100 Series User Manual

3 System Startup
3.3.2 Operation
3-46
3.3.2 Operation

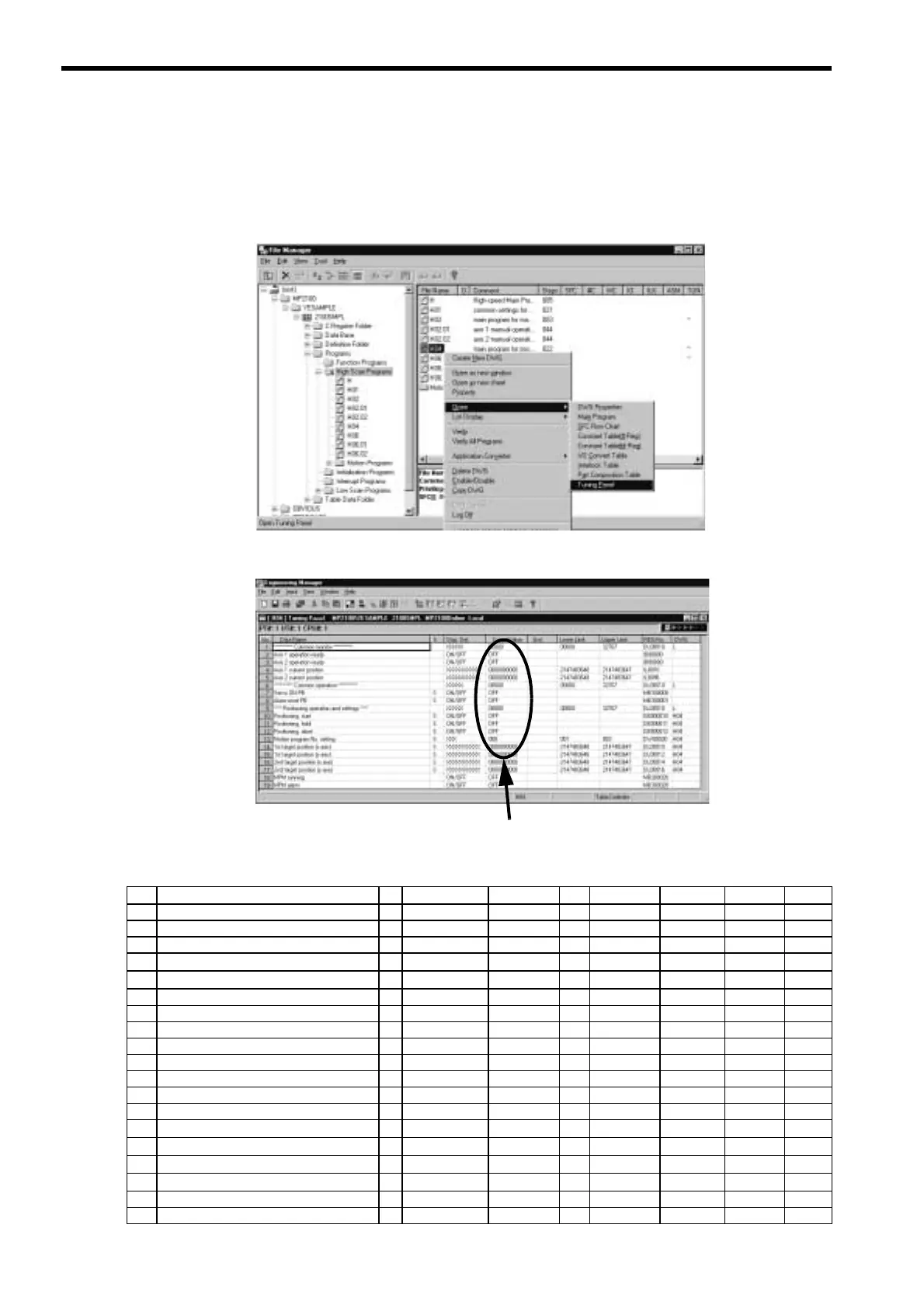

(1) Display of Tuning Panel Window
1. Use the Tuning Panel Window for the H04 drawing to check operations, just as described in 3.2.2 Opera-
tion. Right-click the H04 drawing in the High Scan Programs Folder and select Open – Tuning Panel.
2. The Tuning Panel Window for the H04 drawing will be displayed.
The details on the Tuning Panel Window display are shown in the following table.
Input position and current value.
No.
Data Name
S Display Definition Current Value Unit Lower Limit Upper Limit REG-NO. DWG
1
∗∗∗∗∗∗∗∗∗∗∗∗∗∗
Common monitor
∗∗∗∗∗∗∗∗∗∗∗∗∗∗
XXXXX 00000 00000 32767 DL00010 L
2 Axis 1 operation ready ON/OFF ON IB80000
3 Axis 2 operation ready ON/OFF ON IB80800
4 Axis 1 current position XXXXXXXXXX 0000000000
-
2147483648
2147483647 IL8016
5 Axis 2 current position XXXXXXXXXX 0000000000
-2147483648
2147483647 IL8096
6
∗∗∗∗∗∗∗∗∗∗∗∗∗
Common operation
∗∗∗∗∗∗∗∗∗∗∗∗∗
XXXXX 00000 00000 32767 DW00010 L
7 Servo ON PB S ON/OFF OFF MB300000
8 Alarm reset PB S ON/OFF OFF MB300001
9
∗∗∗∗∗∗
Positioning operation and settings
∗∗∗∗∗∗
XXXXX 00000 00000 32767 DW00010 L
10 Positioning, Start S ON/OFF OFF DB000010 H04
11 Positioning, Hold S ON/OFF OFF DB000011 H04
12 Positioning, Abort S ON/OFF OFF DB000010 H04
13 Motion program No. setting S XXX 001 001 003 DW00030 H04
14 1st target position (X axis) S XXXXXXXXXX 0000010000
-2147483648
2147483647 DL00010 H04
15 1st target position (Y axis) S XXXXXXXXXX 0000020000
-
2147483648
2147483647 DL00012 H04
16 2nd target position (X axis) S XXXXXXXXXX 0000040000
-2147483648
2147483647 DL00014 H04
17 2nd target position (Y axis) S XXXXXXXXXX 0000060000
-2147483648
2147483647 DL00016 H04
18 MPM running ON/OFF OFF MB300020
19 MPM alarm ON/OFF OFF MB300028
