3.6 MP2100M Startup
3-63
3

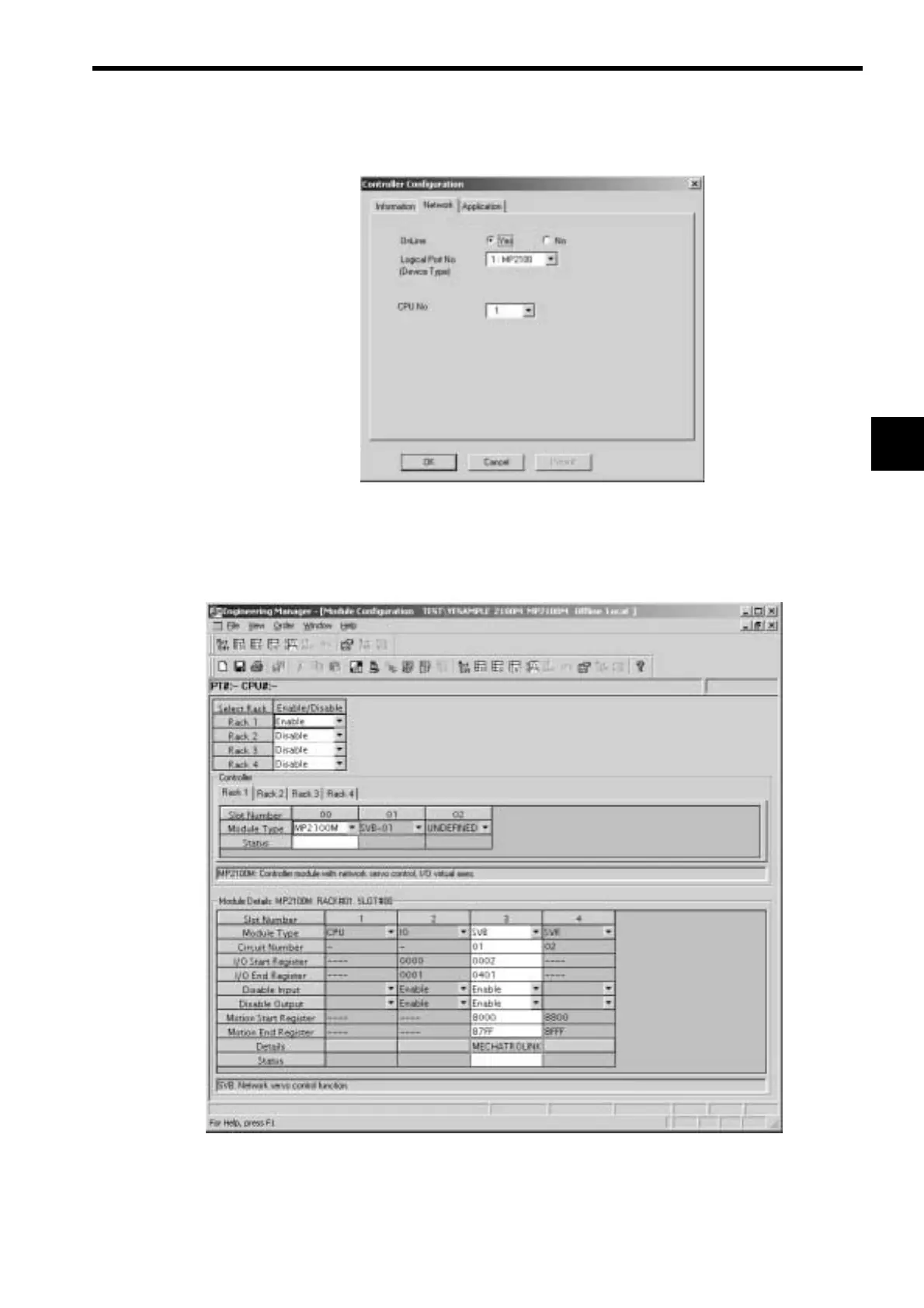

2. Select the Network Tab in the Controller Configuration Window, and set the Logical Port Number
(Device Type)
with the same Logical PT number that was set for the communication process.
3.6.3 Module Configuration Definition
1. Select Controller No.00 MP2100M to display the MECHATROLINK Window for Module No. 3 SVB,
and then set the devices connected to the MECHATROLINK Connector on the CPU Module. Open the
MECHATROLINK Window by selecting MECHATROLINK from the Detail field.
