4.3 MP2100 LED Indicators and Switch Settings
4-7
4
4.3 MP2100 LED Indicators and Switch Settings
4.3.1 Layout

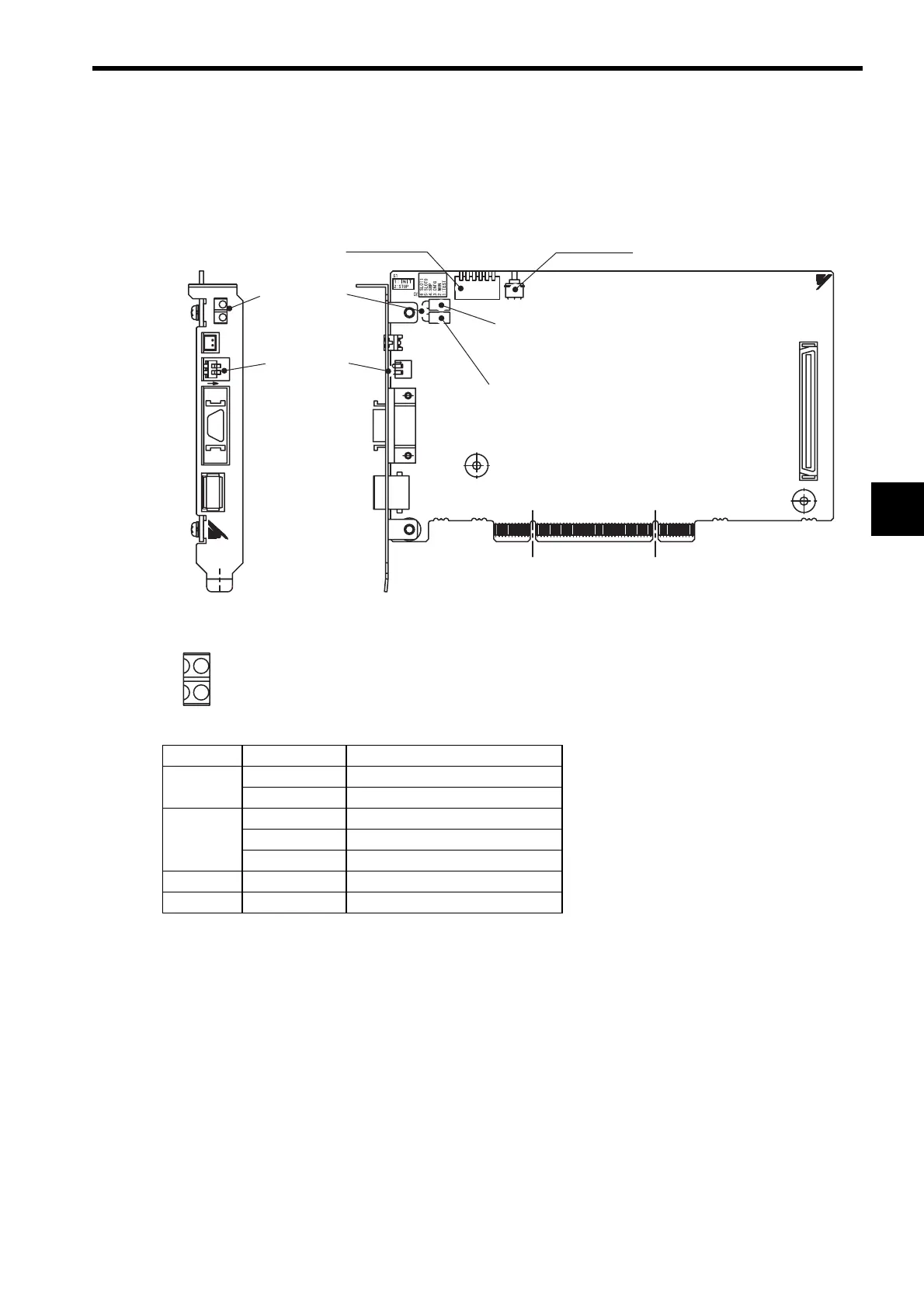

The following diagram shows the layout of the LED indicators and switches for the 2100.
4.3.2 LED Indicators
The following table shows the operating status and error status of the LED indicators of the MP2100.
S2
2
3
4
5
6
1
S1
1
2
ON
ON
I/O
BAT
12
MP2100
BAT
TX
S2 S1
YASKAWA
M-I/II
LED indicators
Mode switch 1
Mode switch 2
Reset switch
System LED
MECHATROLINK
/battery alarm LED
Indicator Display Status
S1
Green
Normal operation (RDY)
Red lit/blinking
Error (ERR)
S2
Green
Normal operation (RUN)
Red lit/blinking
Alarm (ALM)
Not lit
User program stopped
TX
Green
Transmitting data to M-I/II
BAT
Red
Battery alarm
BAT
TX
S2 S1
