3 System Startup
3.1.9 Starting the MPE720
3-20

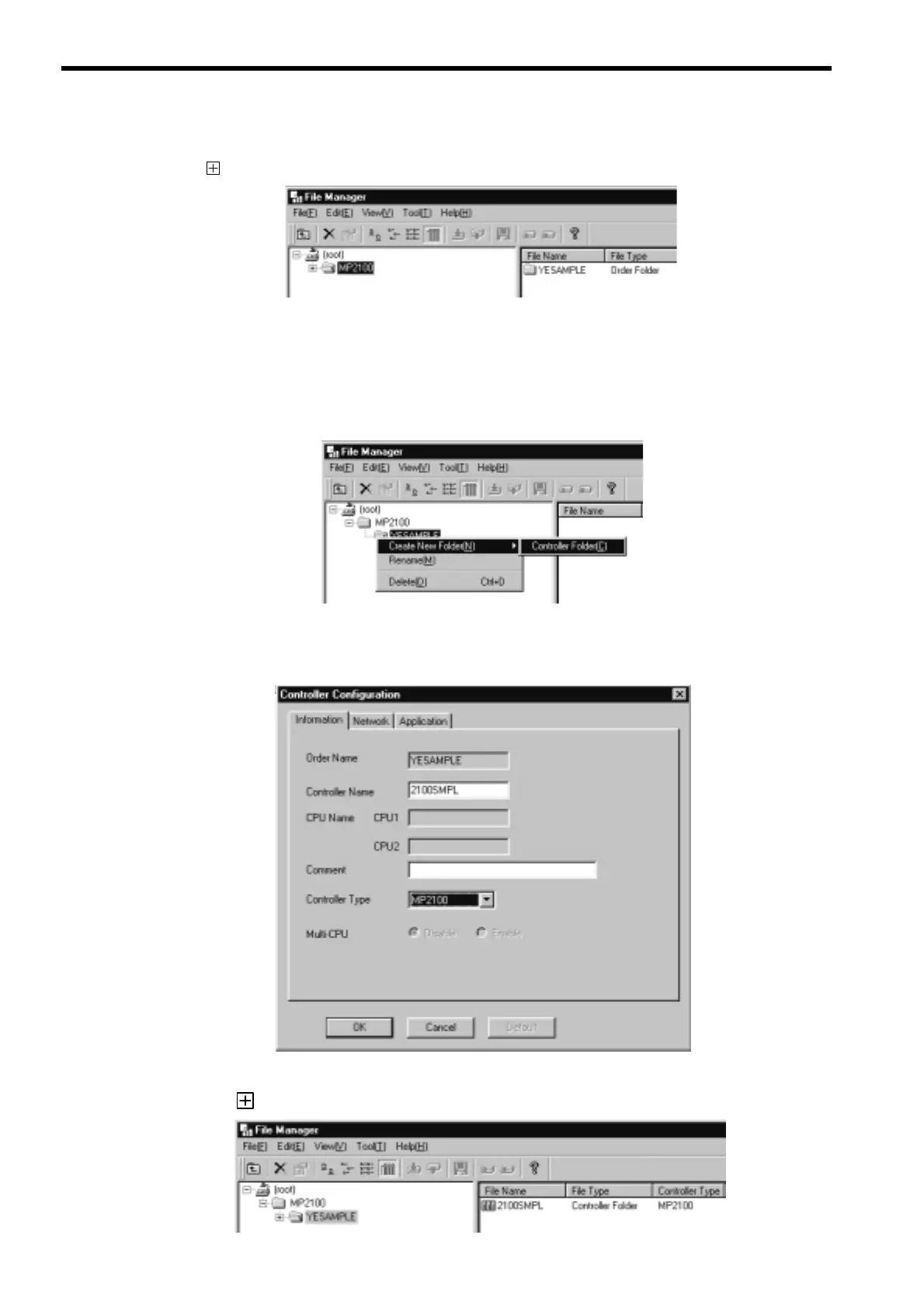

3. The new “YESAMPLE” Order Folder will be created. Double-click the MP2100 Group Folder or click
the Button to display the YESAMPLE order folder.
(6) Creating a Controller Folder
Register the new controller to be used to create the program using the procedure below.
Example: Controller name: 2100SMPL
Controller type: MP2100
1. Right-click the YESAMPLE Order Folder and select Create New Folder – Controller Folder.
2. Set the Controller Name and Controller Type shown below, and click the OK Button.
Controller name: 2100SMPL
Controller type: MP2100
3. A new controller folder “2100SMPL” will be created. Double-click the YESAMPLE Order Folder or
click the Button to display the 2100SMPL Controller Folder.
To Next Page
