Installing the Cooling Fan
Reverse the procedure describe above to reinstall the cooling fan.
1.
Install the replacement fan into the drive. Align the pins as shown in Figure 7.16.

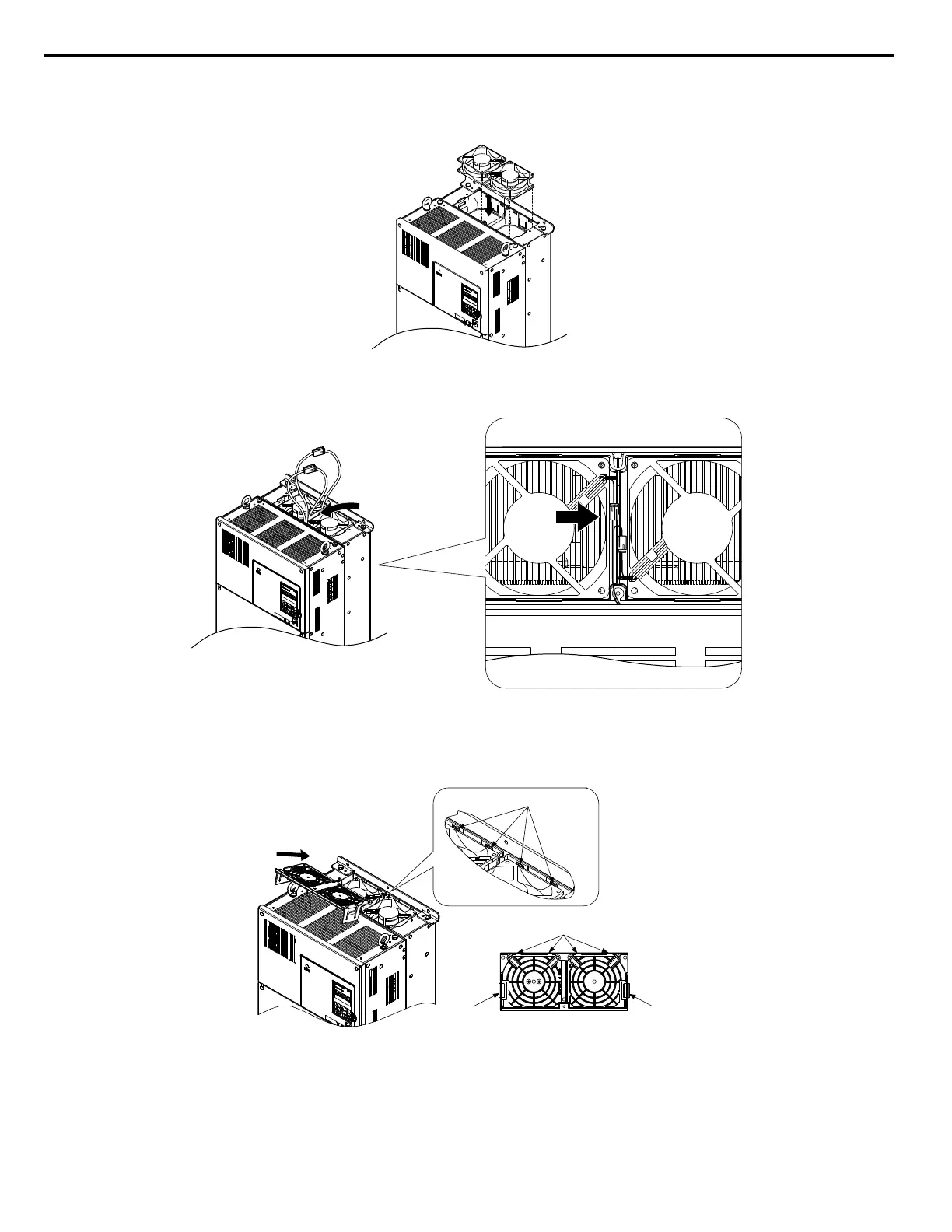

Figure 7.16 Install the Cooling Fan: 4A0088 and 4A0103
2.
Properly connect the fan power lines then replace the power supply connectors and cables into the recess of the drive.
A
B
A – Back B – Front
Figure 7.17 Cooling Fan Power Supply Connectors: 4A0088 and 4A0103
3.
Angle the fan finger guard as shown in Figure 7.18 and insert the connector tabs into the corresponding holes on the
drive.
Front of Drive
Back of Drive
Hook
Fan finger guard
Hook
Four tabs
Holes for connector tabs.
Figure 7.18 Reattach the Fan Finger Guard: 4A0088 and 4A0103
4.
While pressing in on the hooks of the left and right sides of the fan finger guard, guide the fan finger guard until it clicks
back into place.
7.4 Drive Cooling Fans
