A
B
C
D
E
A Fan guard
B Cooling fan
C Fan unit case
D Circulation fan base
E Circulation fan

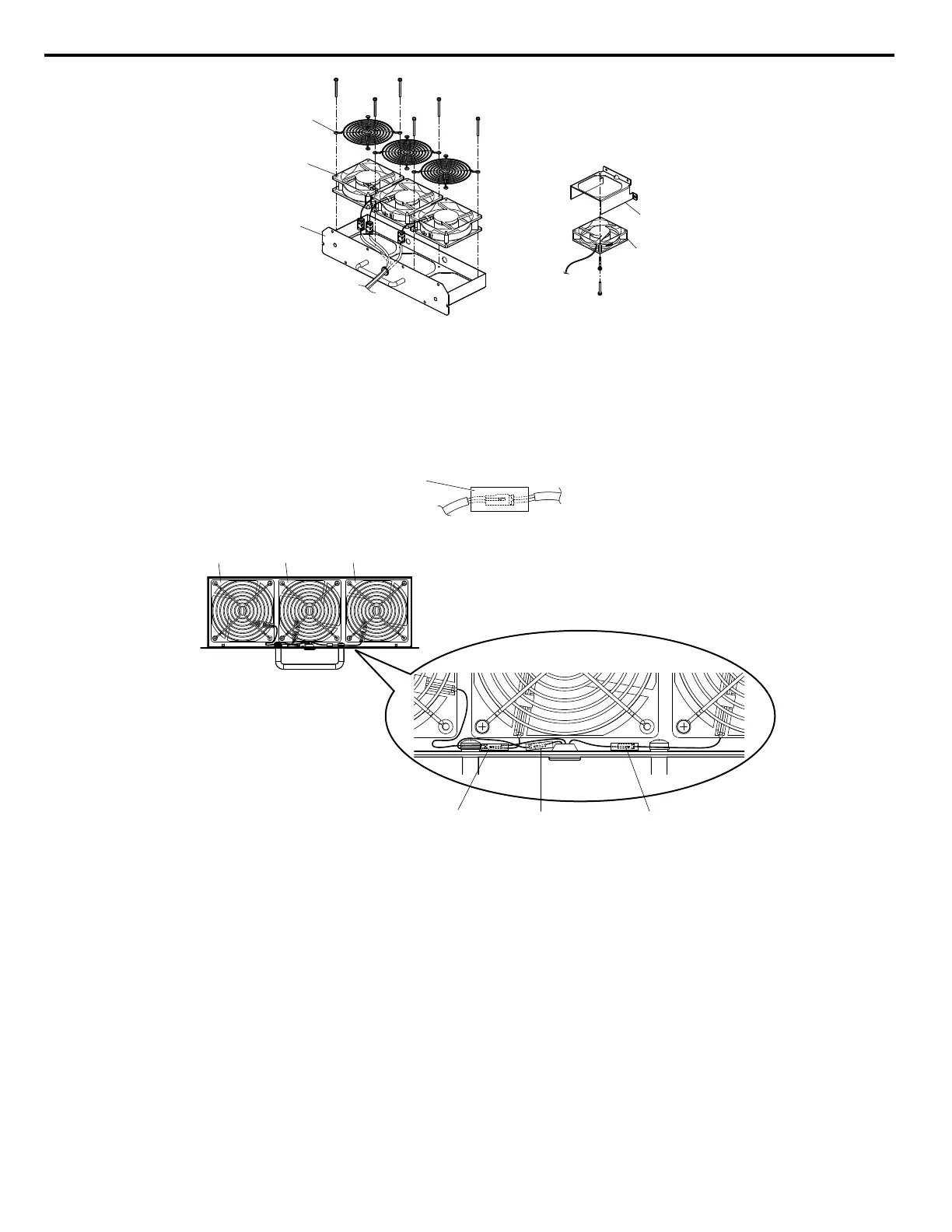

Figure 7.29 Fan Unit Disassembly: 4A0414
n
Cooling Fan Wiring
1.
Position the protective tube so the fan connector sits in the center of the protective tube.
Protective tube
2.
Place the fan connector covered by the tube as shown in Figure 7.30.
Cooling Fan B1 Cooling Fan B2 Cooling Fan B3
Connector
for fan B1
Connector
for fan B2
Connector
for fan B3
Figure 7.30 Cooling Fan Wiring: 4A0414
3.
Double-check the relay connector to ensure that it is properly connected.
n
Installing the Cooling Fan Unit
1.
Reverse the procedure described above to reinstall the cooling fan unit.
7.4 Drive Cooling Fans
360
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual
