YASKAWA P1000 Technical Manual

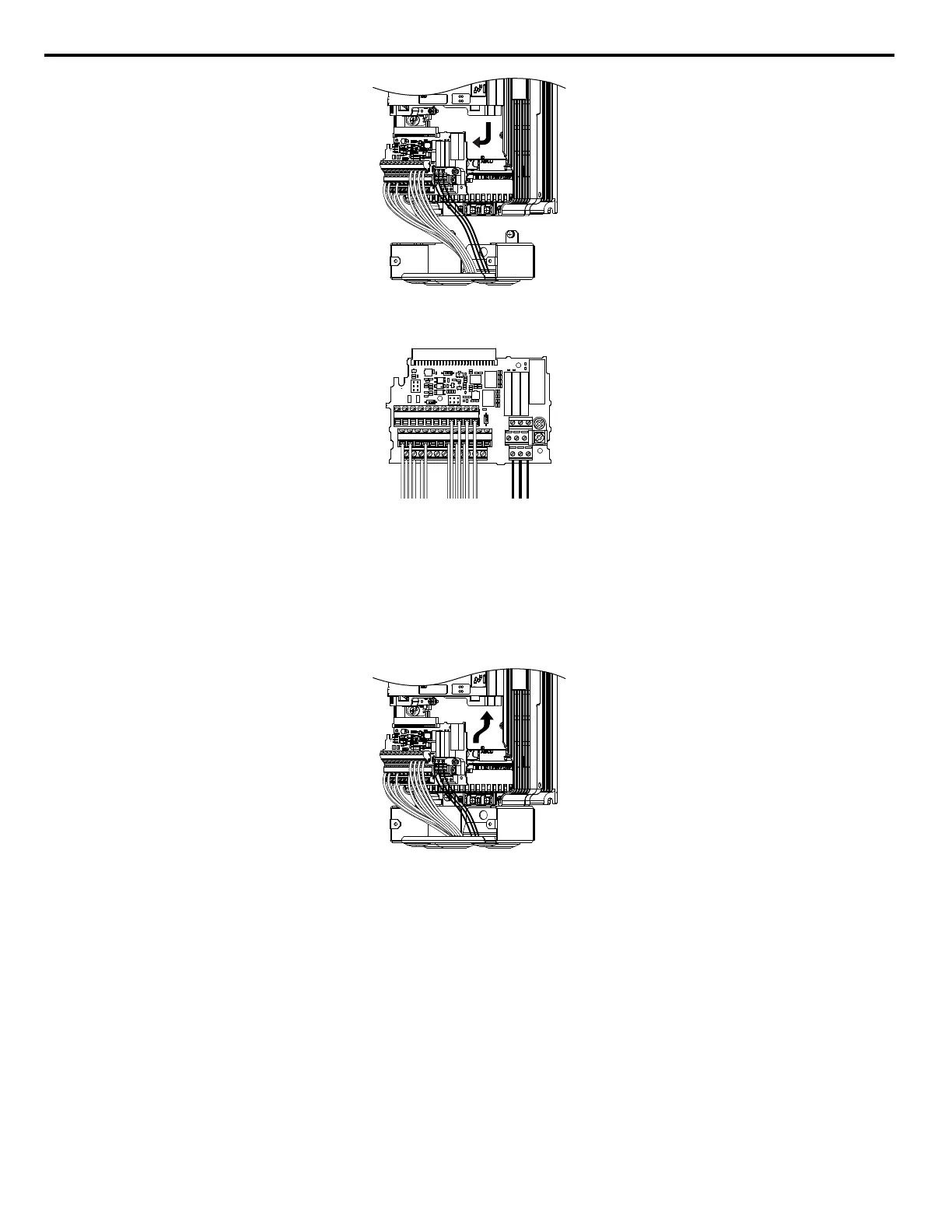

Figure 7.55 Remove the Terminal Board
Figure 7.56 Disconnected Removable Terminal Board
4.
Disconnect all option cards and options, making sure they are intact before reusing.
5.
Replace the drive and wire the main circuit.
n
Installing the Drive
1.
After wiring the main circuit, connect the terminal block to the drive as shown in Figure 7.57. Use the installation screw
to fasten the terminal block into place.
Figure 7.57 Install the Terminal Board
2.
Reconnect options for the new drive the same way the options were connected in the old drive. Connect option boards
to the same option ports in the new drive that were used in the old drive.
3.
Replace the terminal cover.
4.
After powering on the drive, all parameter settings are transferred from the terminal board to the drive memory. If an
oPE04 error occurs, load the parameter settings saved on the terminal board to the new drive by setting parameter
A1-03 to 5550. Reset the Maintenance Monitor function timers by setting parameters o4-01 through o4-12 to 0, and
parameter o4-13 to 1.
7.5 Drive Replacement
372
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
