YASKAWA P1000 Technical Manual

n
Three-Phase AC 200 V Models 2A0360A, 2A0415A
Three-Phase AC 400 V Models 4A0250A to 4A0362A
Three-Phase AC 600 V Models 5A0192A, 5A0242A
A
B
C
D
E
F
G
H
I
J
K
L
M
N
A – Fan guard
B – Cooling fan
C – Fan bracket
D –
Circulation fan
<1>
E – Front cover
F – USB port (type-B)
G – Digital operator
H – Drive cover
I – Terminal cover
J – Front cover screw
K – Terminal board
L – Optional 24 V DC power supply
connector cover
M – Heatsink
N – Mounting hole

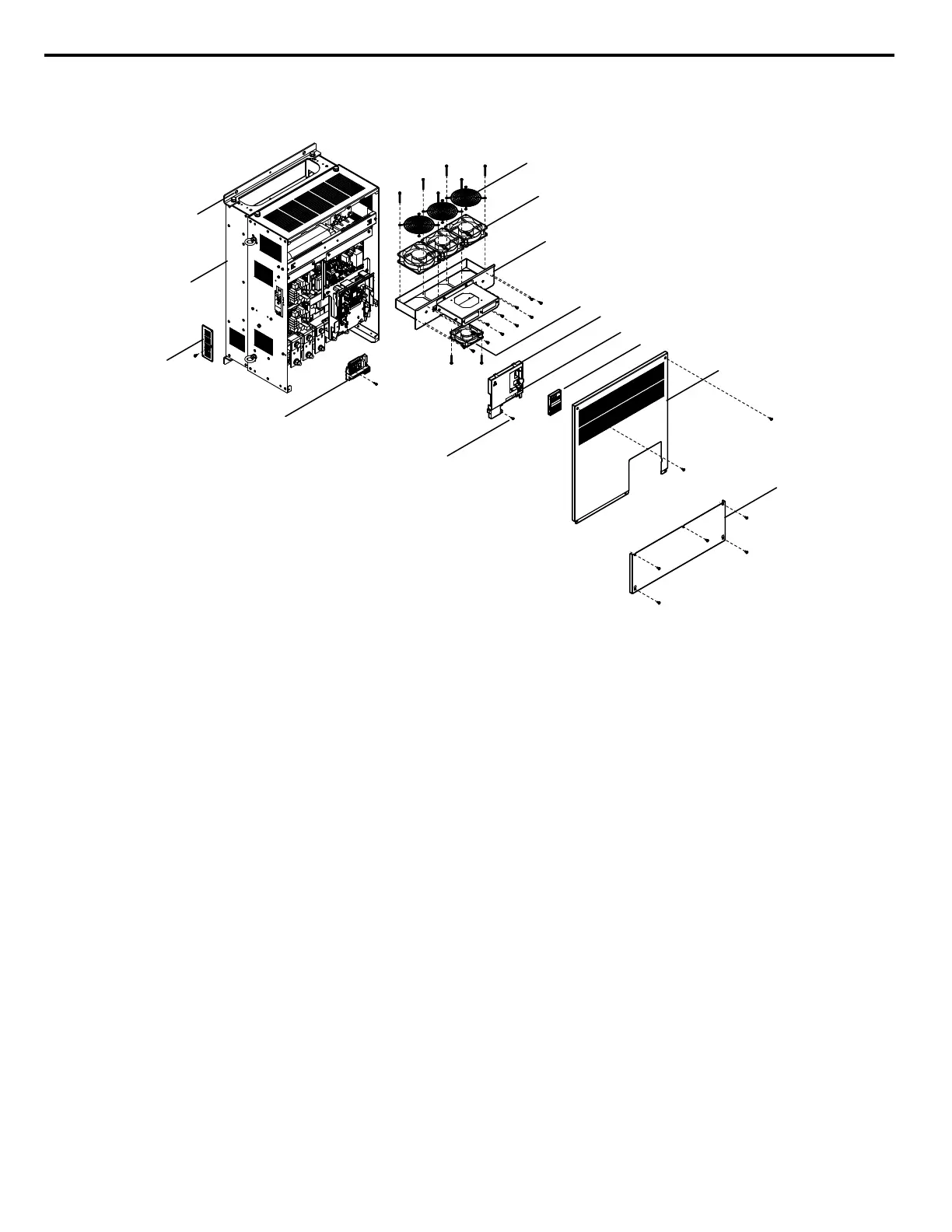

Figure 1.6 Exploded view of IP00/Open Type Enclosure Components (Model 4A0362A)
<1> Drive models 2A0360, 2A0415, and 4A0362 have a built-in circulation fan.
1.5 Component Names
40
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
