YASKAWA P1000 Technical Manual

n
Three-Phase AC 400 V Model 4A0414A
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
M
A – Fan guard
B – Cooling fan
C – Fan bracket
D – Digital operator
E – Drive cover 1
F – Drive cover 2
G – Terminal cover
H – USB port (type-B)
I – Front cover screw
J – Front cover
K – Circulation fan
L – Terminal board
M – Mounting hole
N – Optional 24 V DC power supply
connector cover
O – Heatsink

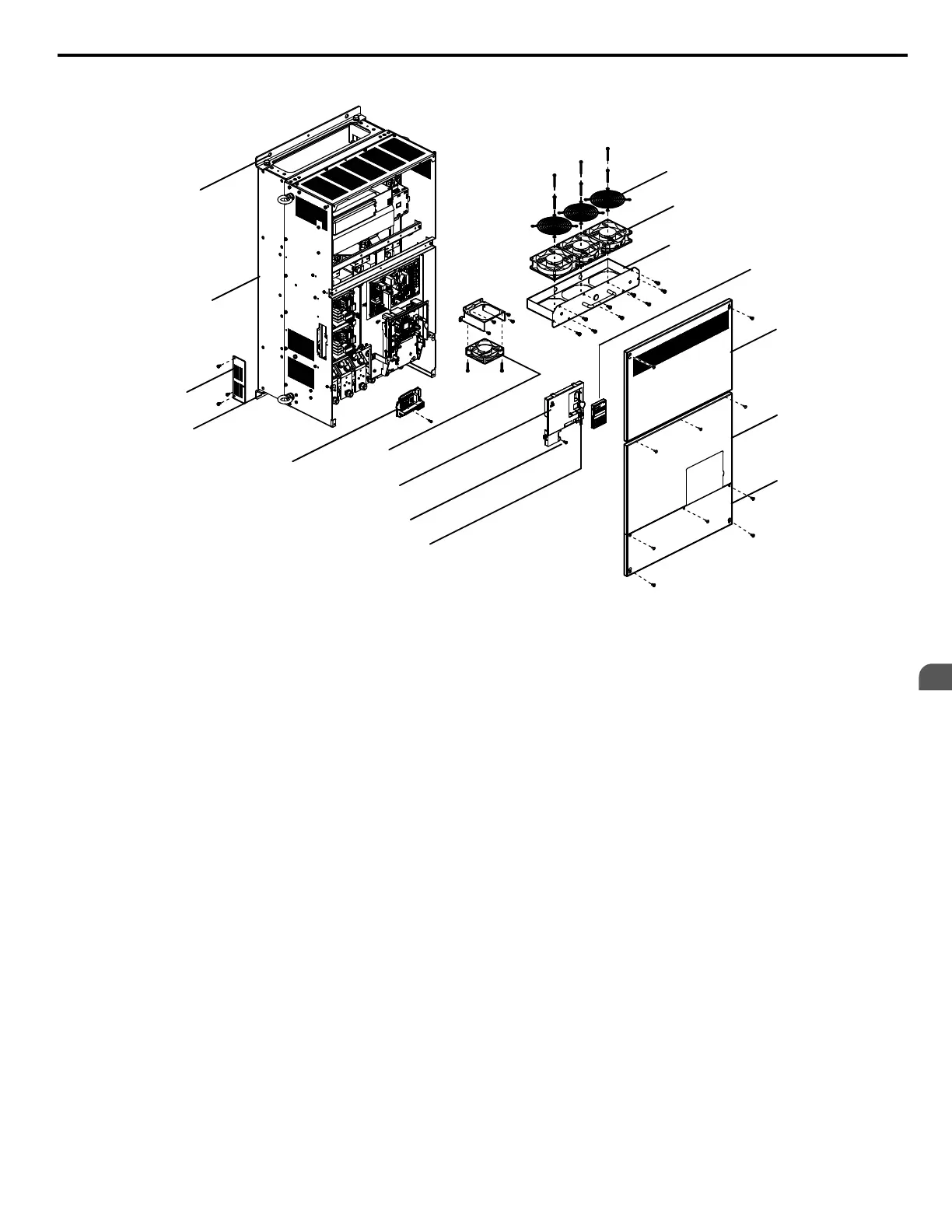

Figure 1.7 Exploded view of IP00/Open Type Enclosure Components (Model 4A0414A)
1.5 Component Names
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual
41
1
Receiving

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
