YASKAWA P1000 Technical Manual

Internal/Flush-Mount
An internal flush-mount requires an installation support set that must be purchased separately. Contact a Yaskawa
representative to order an installation support set and mounting hardware. Figure 2.13 illustrates how to attach the Installation
Support Set A.
1.
Cut an opening in the enclosure panel for the digital operator as shown in Figure 2.14.
2.
Mount the digital operator to the installation support.
3.
Mount the installation support set and digital operator to the enclosure panel.
Enclosure panel
Unit: mm
Digital Operator
Installation Support Set A
M4 × 10
Phillips truss head screw × 4
(for panel widths between 1 and 1.6)
M3 × 6
Phillips recessed
pan head machine screw × 2

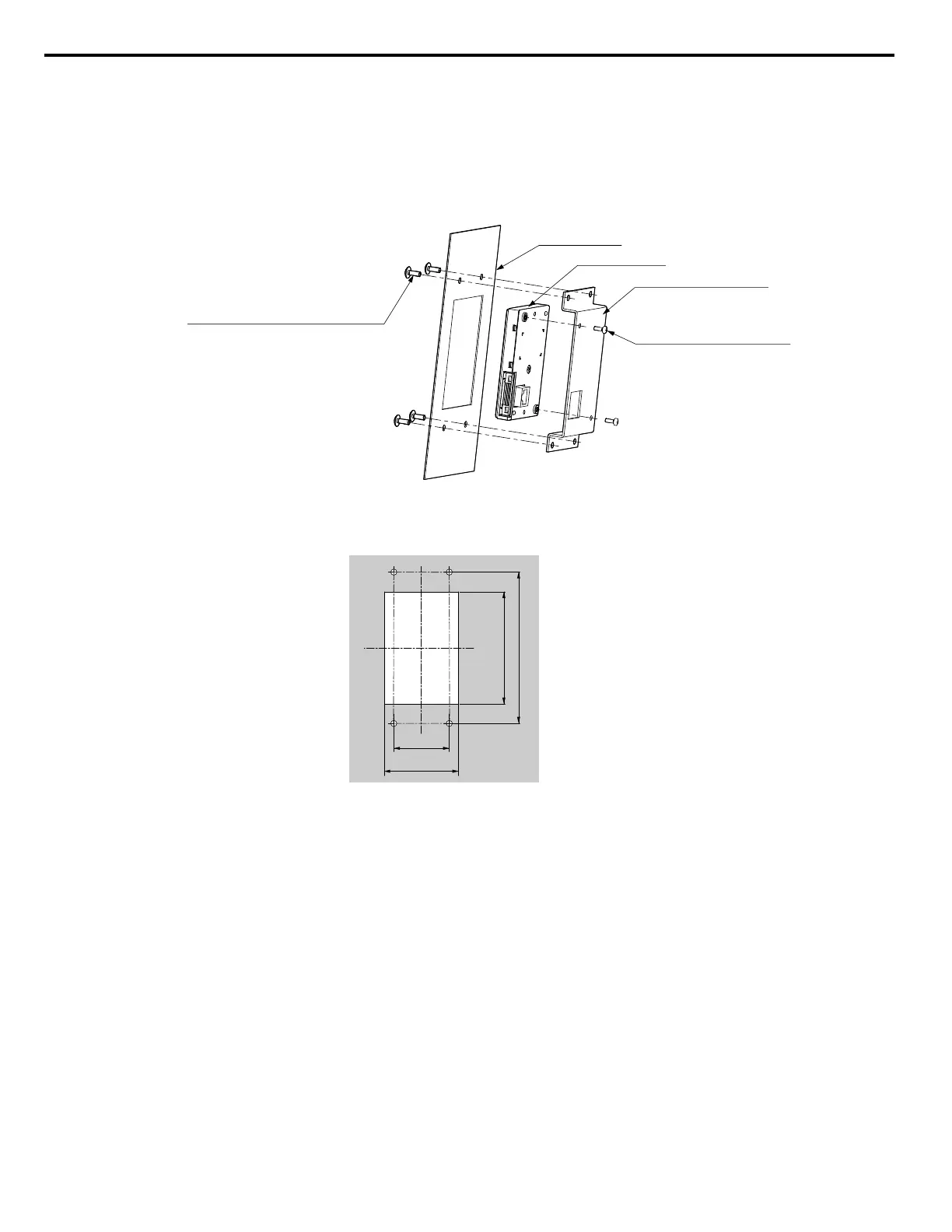

Figure 2.13 Internal/Flush Mount Installation
Note: Use a gasket between the enclosure panel and the digital operator in environments with a significant amount of dust or other airborne debris.
120
45
59
+0.5
0
89
+0.5 0
Unit : mm
Figure 2.14 Panel Cut-Out Dimensions (Internal/Flush-Mount Installation)
2.2 Mechanical Installation
54
YASKAWA SIEP YAIP1U 01C AC Drive - P1000 Technical Manual

YASKAWA P1000 Specifications

General

Operating Temperature	-10°C to +50°C (14°F to 122°F)
Cooling Method	Fan Cooled
Output Voltage	0-Input Voltage
Output Frequency	0-400 Hz
Frequency Range	0.1-400 Hz
Power Rating	0.4 kW to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Ground Fault
Protection Features	Electronic Thermal Overload Protection
Communication	Modbus RTU
Communication Interface	RS-485
Humidity	5% to 95% (non-condensing)
Altitude	Up to 1000m (3280ft) without derating
Enclosure Rating	IP20
