Stratus OCT User Manual PN 2660021134133 A
Configuration Guide
B-7
Configure the Stratus OCT
1. Exit the Stratus OCT software and open the Network Connections dialog by selecting
Start > Settings > Network and Dial-up Connections. The Network and Dial-up
Connections dialog appears (Figure B-4).

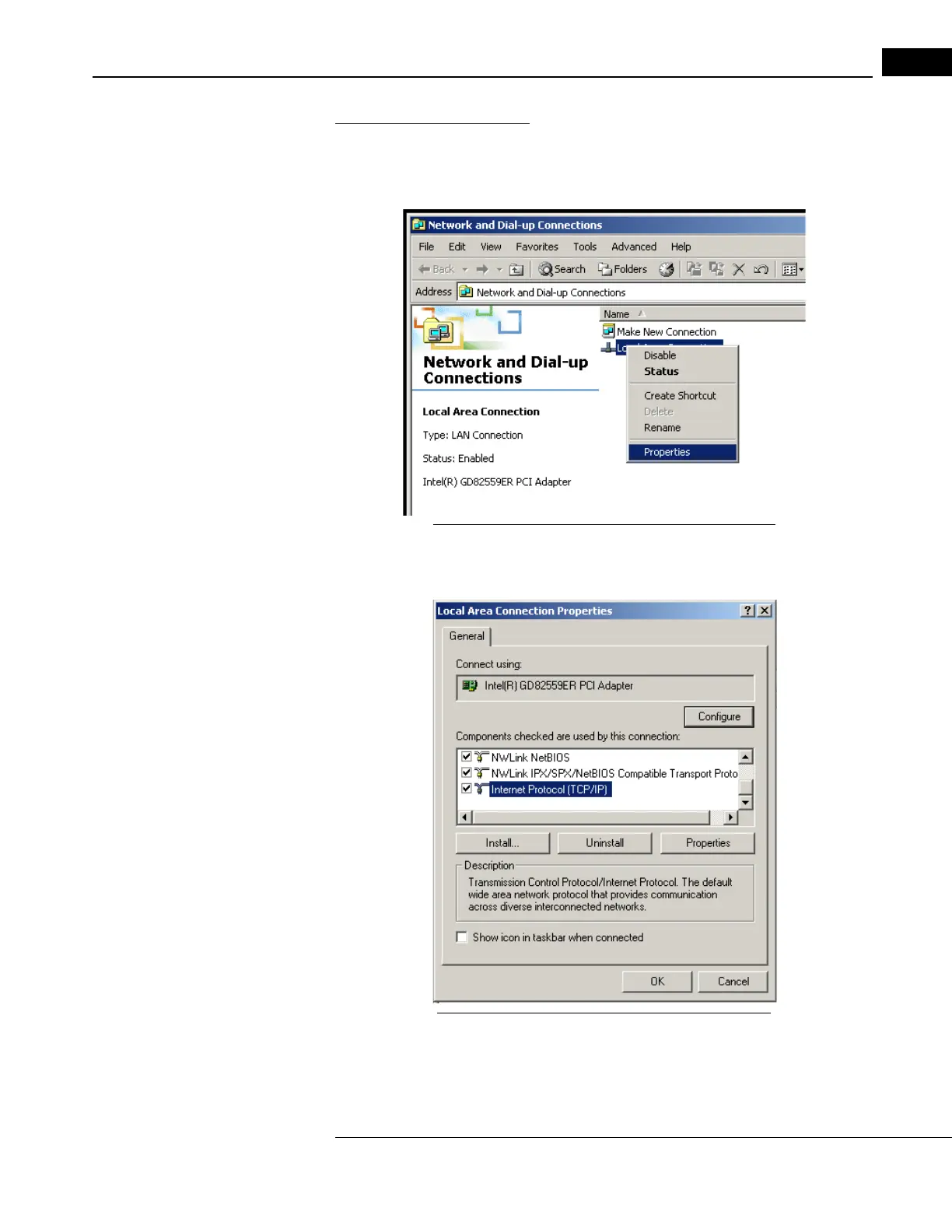

Figure B-4 Network and Dial-up Connections Dialog
2. Right-click on the Local Area Connection icon, and then select Properties as in
Figure B-4. The Local Area Connection Properties dialog appears (Figure B-5).
Figure B-5 Local Area Connection Properties Dialog
Note: The Connect using: hardware will be different for Pentium 4 based
computers.
