Configuration Guide
Stratus OCT User Manual PN 2660021134133 A
B-6
4. Double-click Internet Protocol (TCP/IP) in the component list. The Internet Protocol
(TCP/IP) Properties dialog appears (Figure B-3).

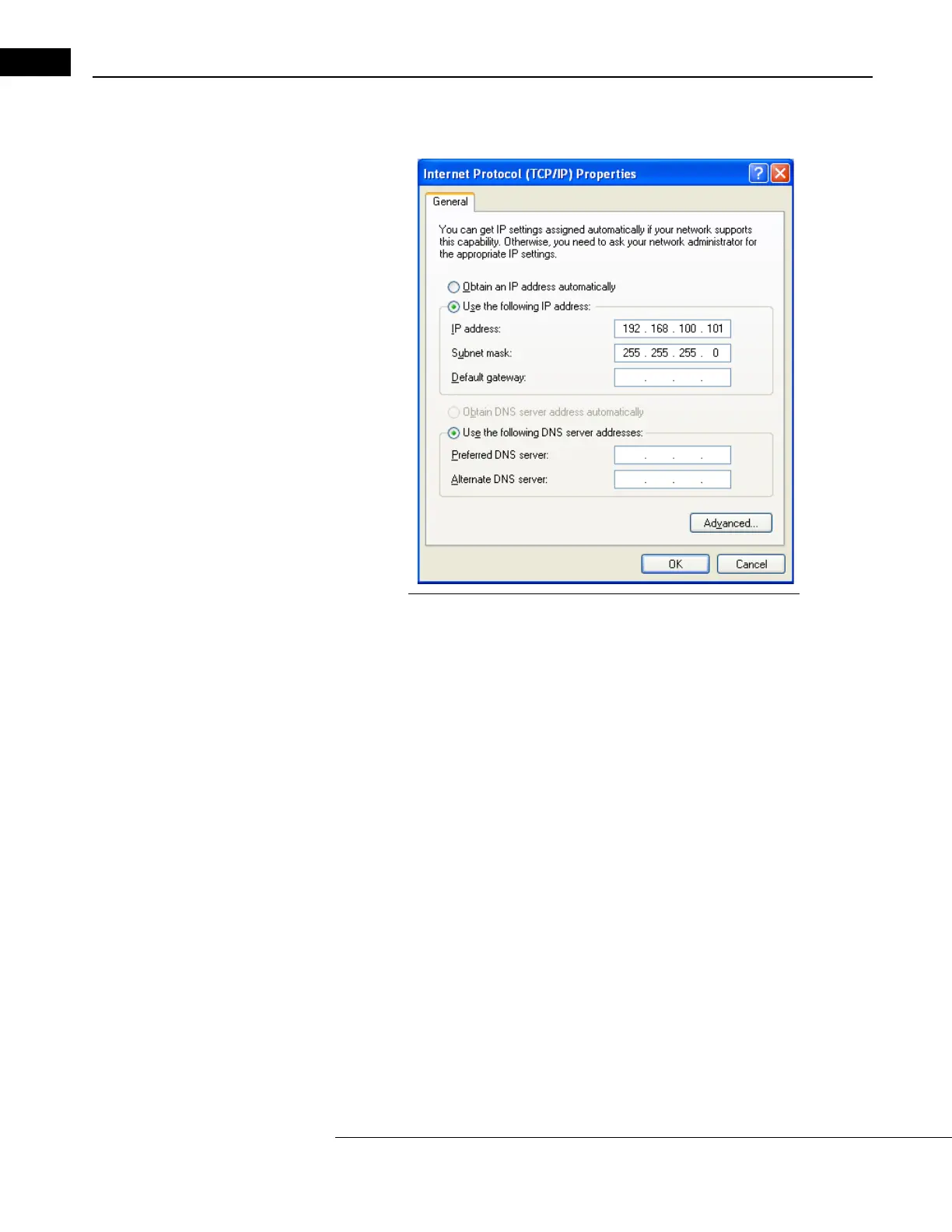

Figure B-3 The Internet Protocol (TCP/IP) Properties Dialog
5. Write down and save any existing configuration parameters such as IP address,
Subnet mask and Default gateway. You may need these to reestablish a connection to
a preexisting network.
6. Select the Use th
e following IP address radio button, and then type in the IP address.
Note: The first three parts of the review station IP address must match what is used
on the Stratus instrument. The fourth part must be a number between 2 and 255
that is unique to this system among all devices on the same network. In the example
in Figure B-3, the review station's IP address is 1
92.168.100.101. A compatible IP
address on the Stratus instrument would be 1
92.168.100.100.
7. Configure the Subnet mask as in Figure B-3. It should read 25
5.255.255.0. It must
be the same as on the Stratus instrument.
8. Click OK to save yo
ur changes and close the Internet Protocol (TCP/IP) Properties
dialog. Click OK again to save changes and close the Local Area Connection
Properties dialog.
Note: The system may prompt you that the computer must be restarted for the
changes to take effect. Restart the computer if so prompted.
