ZOLL R Series Service Manual

R Series Service Manual
3-34 9650-0903-01 Rev. L

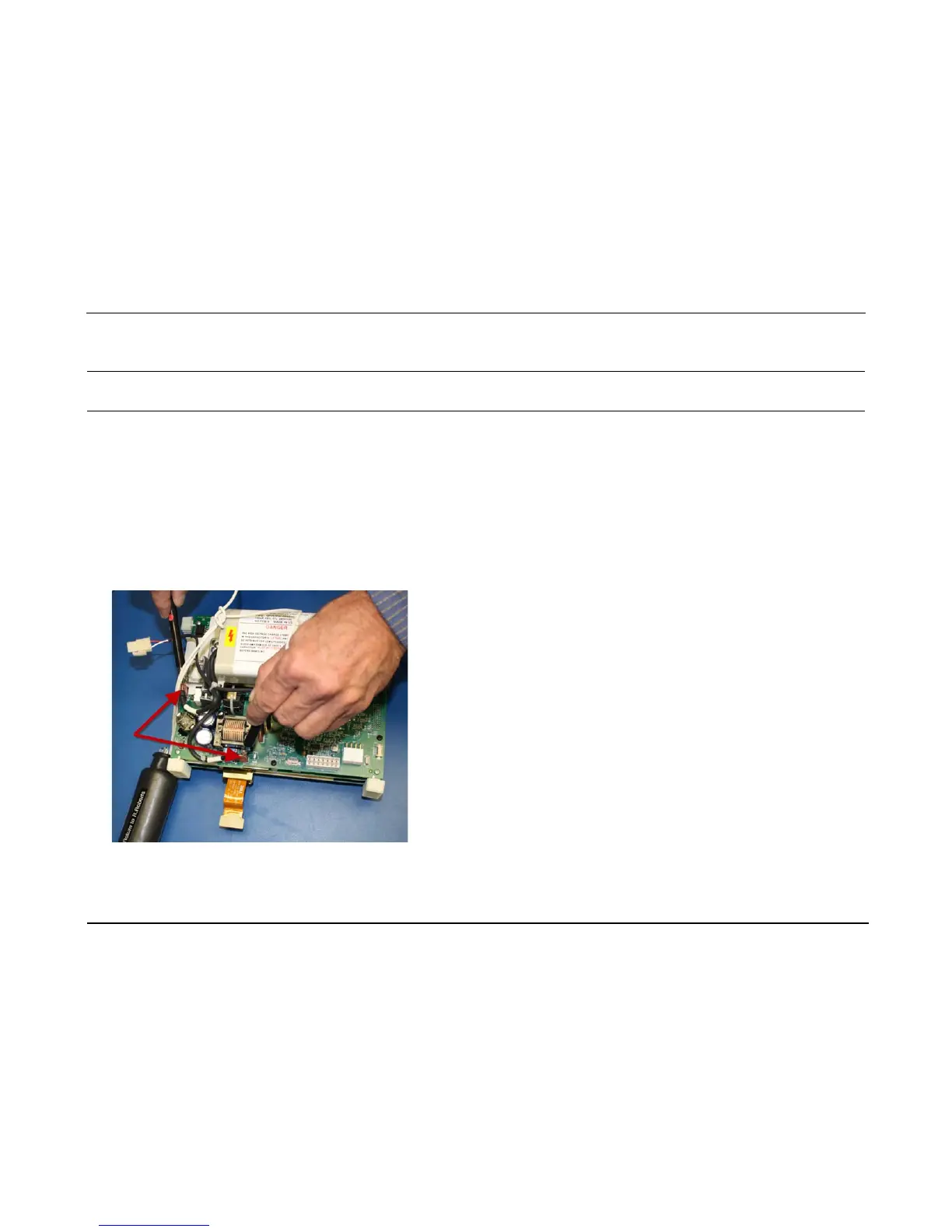

Discharging Capacitor
WARNING! This unit may contain lethal voltages. You MUST completely discharge the high voltage capacitor before removing from unit. DO NOT SHORT
THE TERMINAL ENDS OF THE CAPACITOR.
1. While capacitor is connected to the PD Engine
assembly, discharge the capacitor by bleeding out
the excess voltage using a resistor with values of
approximately 5 kohms, 25 watts for 10-20 seconds.
Apply the resistor across the terminals on the board.
Measure the voltage on the capacitor terminals to
verify that capacitor is discharged.

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
