ZOLL R Series Service Manual

CHAPTER 3AUTOMATED EXTERNAL DEFIBRILLATOR (AED) OPERATION
3–6 www.zoll.com 9650-0904-01 Rev. N

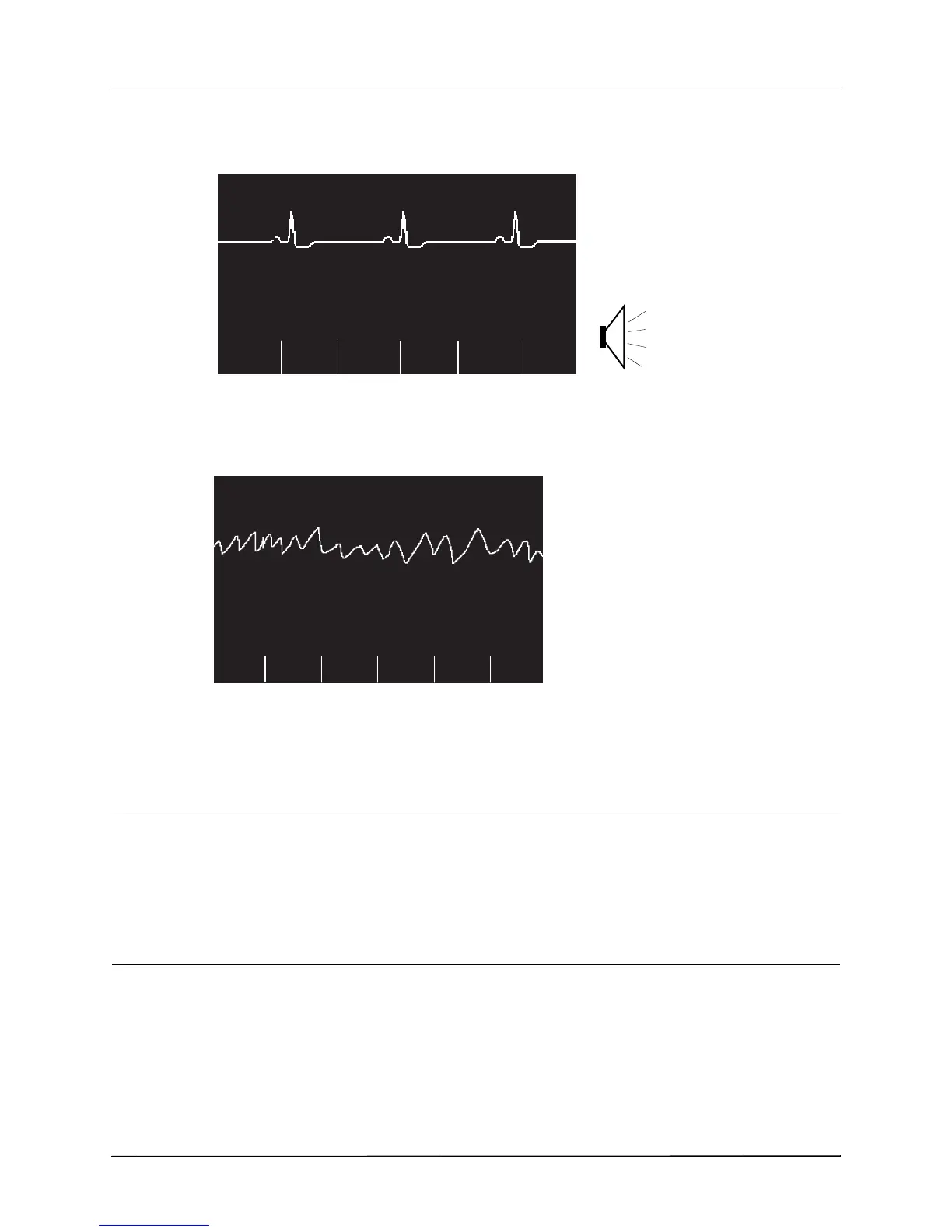

When a nonshockable rhythm is detected, the unit displays a NO SHOCK ADV. message.
Immediately begin chest compressions and continue other treatment per protocol.
If the patient’s rhythm is shockable, the unit displays a SHOCK ADVISED message. The
defibrillator begins charging automatically to the preconfigured energy setting and displays a
CHARGING message.
When charging is completed, the monitor displays the energy level to which the defibrillator
has charged, XXXJ READY.
3 Press SHOCK
WARNING! Warn all persons in attendance of the patient to STAND CLEAR prior to defibrillator
discharge.
Do not touch the bed, patient, or any equipment connected to the patient during
defibrillation. A severe shock can result. Do not allow exposed portions of the patient’s
body to come in contact with metal objects, such as a bed frame, as unwanted pathways
for defibrillation current may result.
150J SEL.
ECG
NO SHOCK ADV.
Manual
Mode
Analyze
NO
SHOCK
ADVISED
CHARGING 76J
Manual
Mode
SHOCK ADVISED
ECG
Analyze

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
