ZOLL R Series Service Manual

Defibrillator Controls and Indicators
9650-0904-01 Rev. N ZOLL R Series Operator’s Guide 2–3
The Front Panel
The front panel of the R Series device includes the display screen, softkeys, battery indicator,
AC power indicator, Code Readiness indicator, SHOCK button, and control panel. The control
panel configuration varies slightly depending on the model and whether the unit is in AED
mode or Manual mode. See Figure 2-1 and Figure 2-2.

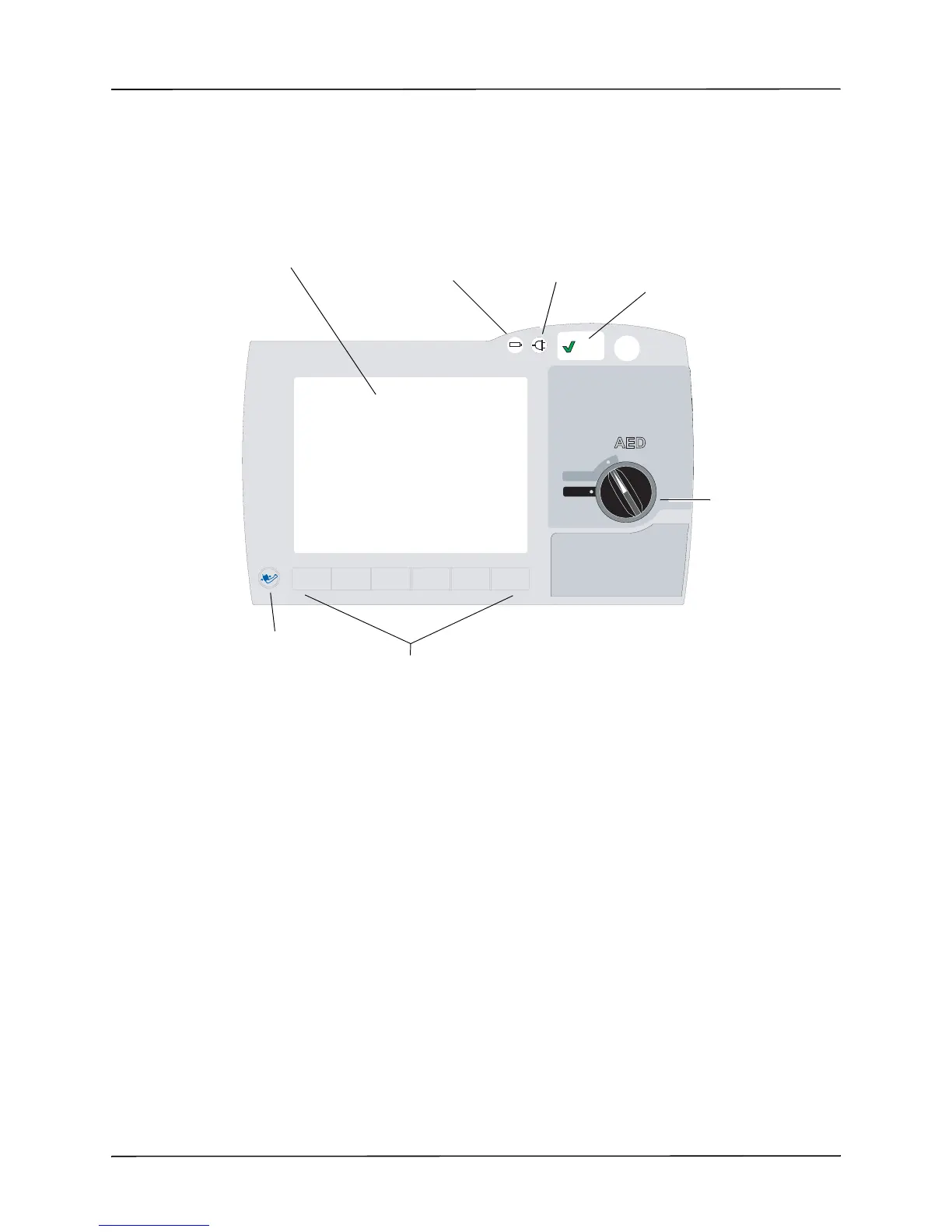

Figure 2-1. R Series Front Panel (AED Mode)
OFF
AED
ON
Display screen
Six softkeys
Mode Selector
AC power
indicator
Battery
indicator
Code
Readiness
indicator
NIBP Button
(optional)

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
