CHAPTER 2PRODUCT OVERVIEW
2–14 www.zoll.com 9650-0904-01 Rev. N
To install a battery pack:
1. Place the end of the battery pack opposite the tab into the end of the compartment closest to
the front of the unit.
2. Lower the tabbed end of the battery pack into the compartment and press down on the tabbed
end until it locks into place.

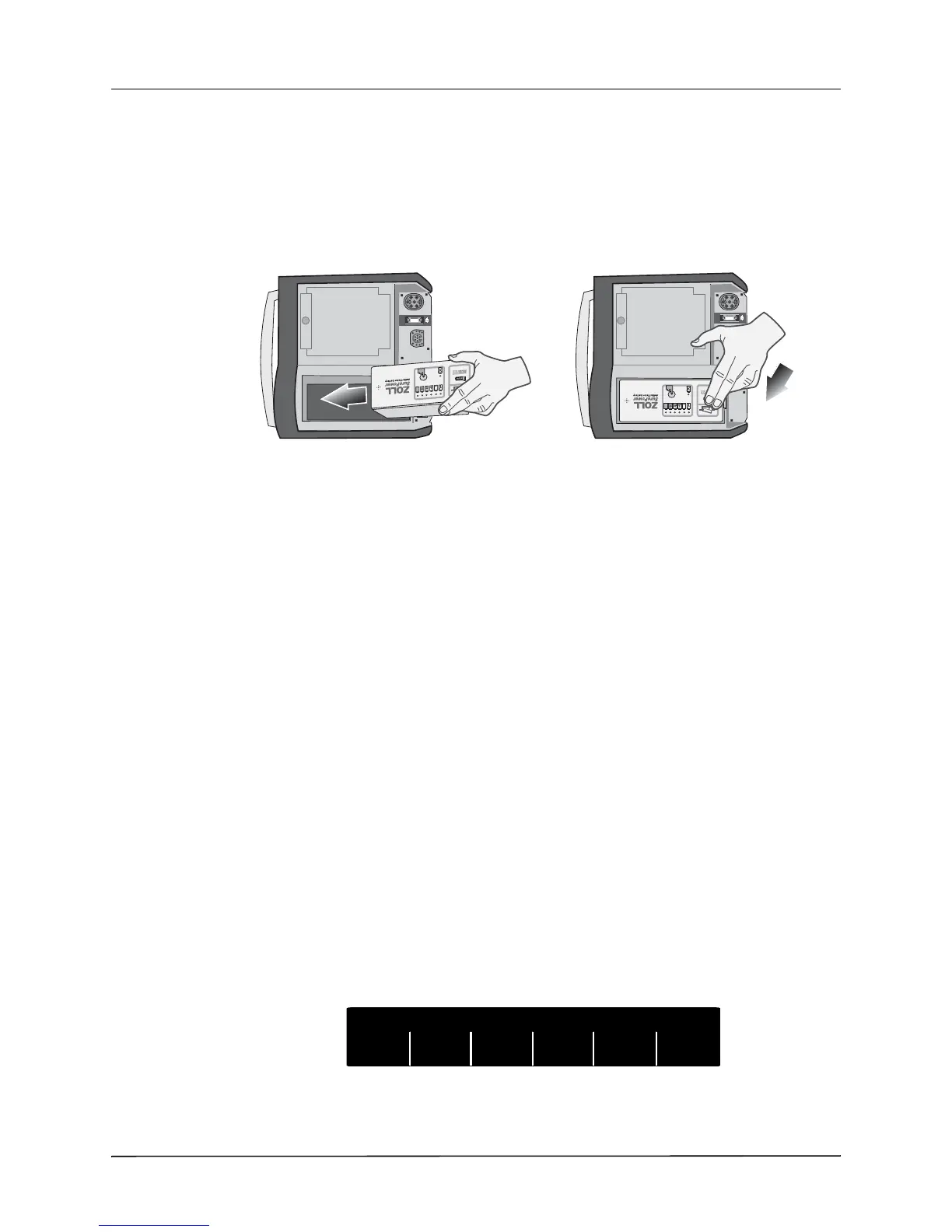

Figure 2-14. Installing a Battery Pack
Adjusting Display Brightness (Manual Mode Only)
To adjust brightness:
1. Turn the Mode Selector to ON.
2. Press the Manual Mode softkey.
Note: If the CONFIRM MANUAL MODE message displays, press the Confirm softkey to
enter the Manual mode of operation.
3. Press the Options softkey.
4. Press the High Bright or Low Bright softkey to select high and low brightness.
Note: Brightness level affects battery run time. Selecting high bright will cause the battery
charge to be depleted at a faster rate than when selecting low bright.
Using Code Markers (Manual Mode Only)
Pressing the CODE MARKER softkey causes the unit to display a preconfigured list of
clinical actions. Pressing the softkey associated with a particular action causes that action, and
6 seconds of ECG, to be recorded along with a date and time stamp in the Summary Report
memory. You can supplement an event summary by manually adding code markers which
itemize drugs or treatments administered to the patient.
Up to six Code Markers can be displayed on the screen at one time.
Figure 2-15. Code Markers
CPR Intubate EPI LIDO Narcan MORE
To Next Page
