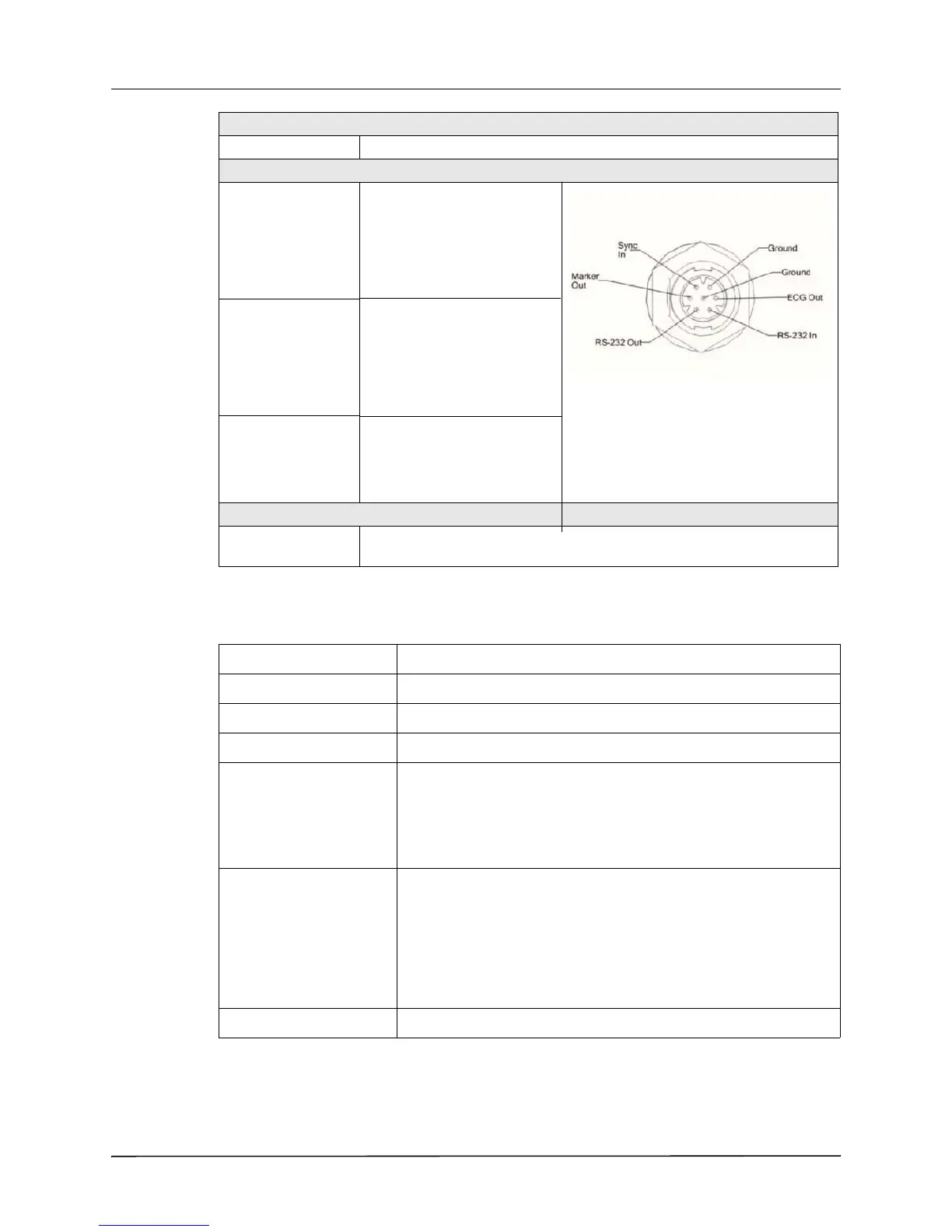

APPENDIX ASPECIFICATIONS
A–6 www.zoll.com 9650-0912-01 Rev. N
Battery Pack Specifications
Data card
Type Compact flash card
Sync in / Marker out / ECG out
Sync In 0-5 V (TTL Level) pulse, active
high, 5 to 15 msec in duration,
no closer than 200 ms apart.
Energy transfer begins within
25 ms of the leading edge of
the external sync pulse.
0-5 V (TTL Level) pulse, active
high, 10 ms in duration, the
leading edge of the pulse
occurs within 35 ms of the
peak of the R-wave)
1.0 V/cm of deflection on
stripchart recorder
<25 ms delay from patient
ECG input
Marker Out
ECG Out
Wi-Fi Card
ZOLL R Series
Data COMM
Model: 802.11 abgn Wireless LAN Compact Flash Card
R Series Connector
Pinout
SWITCHCRAFT CONXALL
17982-7SG-300
Mating Connector:
SWITCHCRAFT CONXALL
16982-7PG-522
Type Rechargeable lithium ion
Weight 1.7 lb (0.77 kg)
Nominal voltage 10.6 V
Recharge time 4 hours or less within R Series.
Operating time For a new, fully charged battery at 20°C:
• 100 defibrillator discharges at maximum energy (200 joules), or
• 4 hours of continuous ECG monitoring, or
• 3.5 hours of continuous ECG monitoring and pacing at 60 mA, 80
pulses per minute
Low battery indicator The message LOW BATTERY is displayed on the screen when there
is approximately 15 minutes of ECG monitoring time left on the
battery. Two-beep low battery tone sounds once a minute until just
before shutdown when the unit beeps twice every 2 seconds.
The time from display of the message LOW BATTERY or REPLACE
BATTERY until the defibrillator shuts down varies depending on the
battery age and condition.
Battery Shelf Life 3 months before retest and recharge
