Summary Report
9650-0912-01 Rev. N ZOLL R Series Operator’s Guide 10–7
Note: If the first two segments are shockable, only two asterisks appear on the stripchart, and
the third segment is not analyzed.

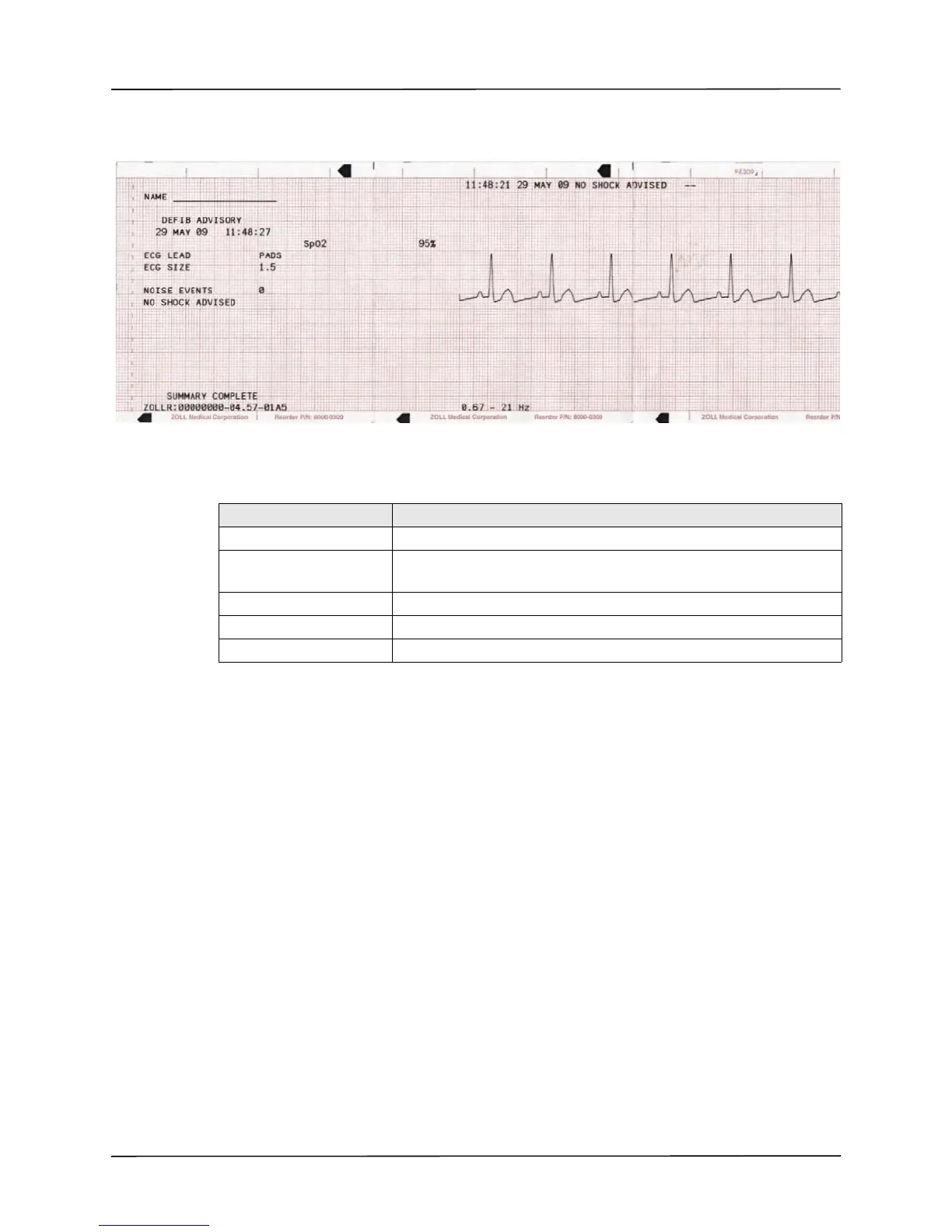

Figure 10-9. Analyze Format
In addition, the ECG rhythm analysis report can include the following annotations:
Printing the Entire Summary Report
To print all summary report data:
1. Press the Report Data softkey, then press Print Chart.
2. Press the Print All softkey.
The unit prints all stored code events and code markers in chronological order beginning
with the oldest entry. If the stripchart recorder is on or the defibrillator is charged, summary
report printing is disabled. To stop printing a report, press the RECORDER button or turn
off the unit. You can print an unlimited number of copies of the report by repeating this
procedure.
Note: Summary report printing is interrupted when a, ECG analysis is in progress, or the
defibrillator is charging or charged. Also, if a summary report is printing and you press
the
Report softkey to print another type of report (such as the log report), the device
stops printing the summary report and begins printing the selected report.
If the recorder is out of paper when the Report Data softkey and a corresponding print
softkey are pressed, a CHECK RECORDER message appears on the display. Load paper and
press the Report Data softkey again to select the report to print.
Annotation Description
POOR PAD CONTACT The hands-free therapy electrodes are improperly connected.
ANALYSIS HALTED A fault condition occurred, or the operator pressed the ANALYZE
button again.
NOISY ECG Excessive noise was detected.
SHOCK ADVISED A shockable rhythm was detected.
NO SHOCK ADV. No shockable rhythm was detected.
