ZOLL R Series Service Manual

CHAPTER 3MANUAL DEFIBRILLATION
3–6 www.zoll.com 9650-0912-01 Rev. N
Emergency Defibrillation Procedure with Hands-Free
Therapy Electrodes
Determine the Patient’s Condition Following Local Medical Protocols
Verify:
• Unconsciousness.
• Absence of breathing.
• Absence of pulse.
Begin CPR Following Medical Protocols
Request additional assistance.
Prepare Patient
Remove all clothing covering the patient’s chest. Dry chest if necessary. If the patient has
excessive chest hair, clip or shave it to ensure proper adhesion of the electrodes.
Attach hands-free therapy electrodes according to instructions on the electrode packaging.
Ensure that the therapy electrodes are making good contact with the patient’s skin and are not
covering any part of the ECG electrodes.
Connect the hands-free therapy electrodes to the OneStep cable if not preconnected.

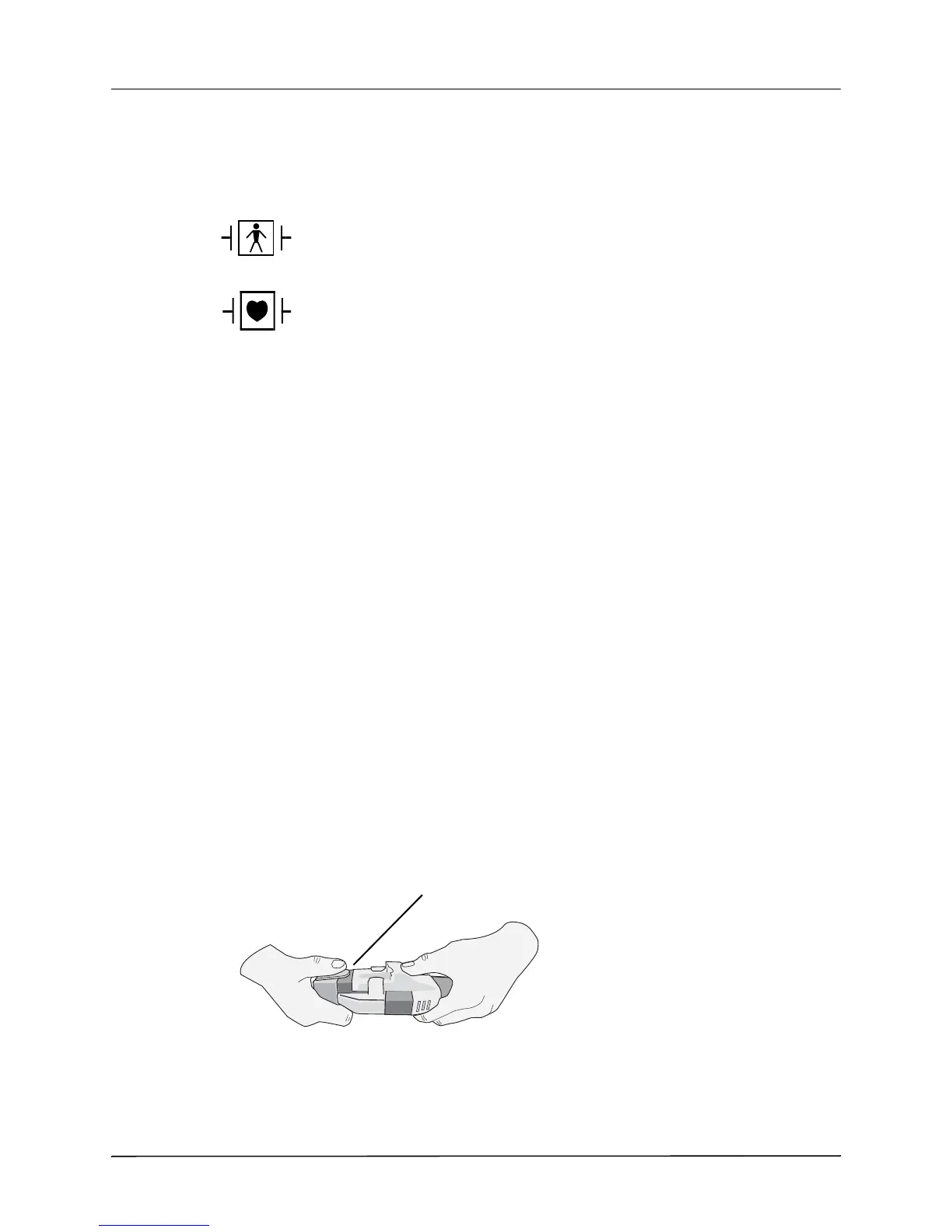

When connecting a OneStep electrode to the OneStep cable, push the two connectors together
until the latch clicks, as shown.
ZOLL hands-free therapy electrodes are a defibrillation-protected Type BF patient
connection.
ECG leads are a defibrillation-protected Type CF patient connection.
Latch

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
