Recorder On Format
The summary report function records 6 seconds of patient ECG prior to turning on the recorder.
Also recorded are the ECG lead, ECG size, patient's heart rate, actual event time, and date. The
date/time printed on the top of the strip corresponds to the ECG data occurring 6 seconds before
the event. If the pacer is on during this event, the pacing rate and current are also recorded. If
Async pace is active, the annotation ASYNC PACE is recorded.

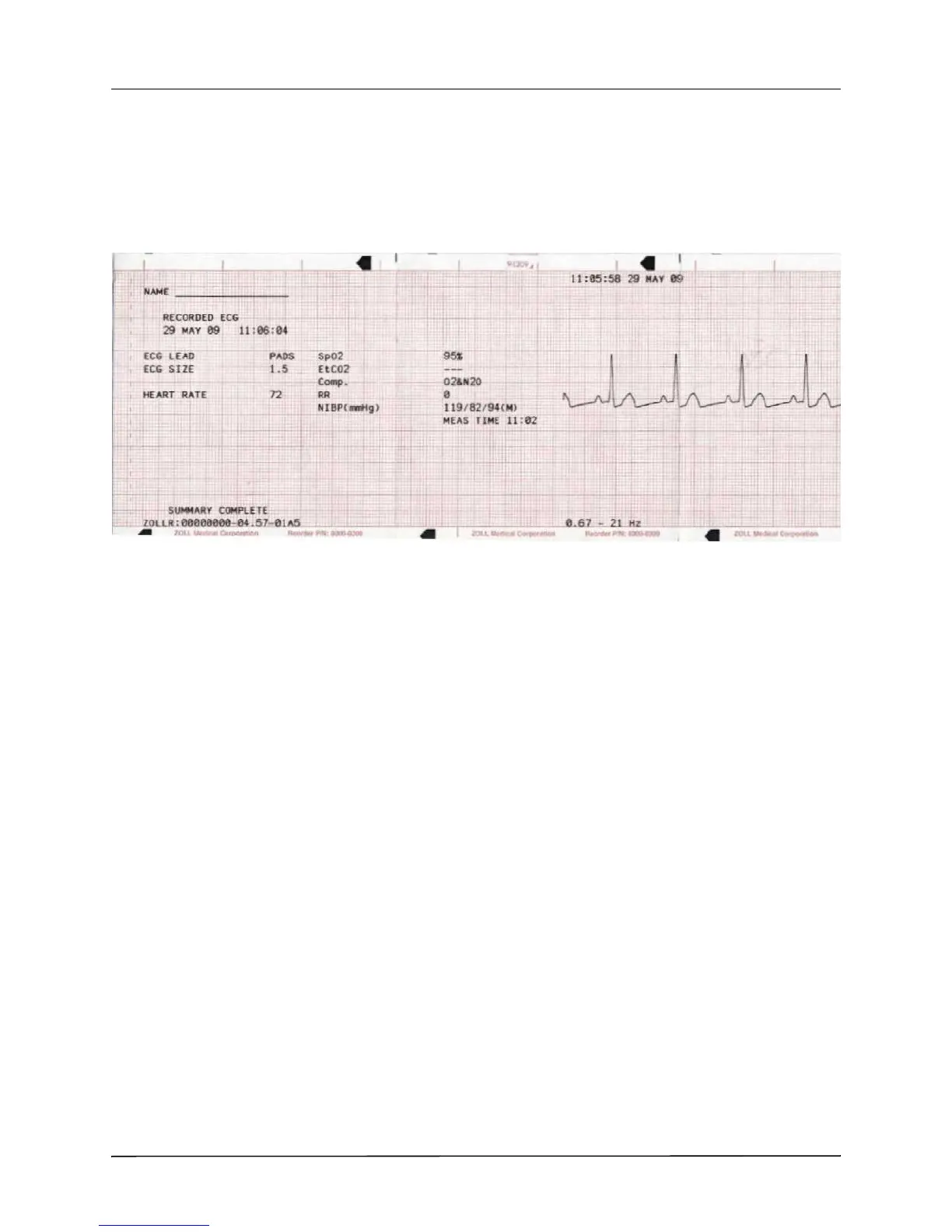

Figure 10-8. Recorder On Format
Analyze Format
The summary report function records six seconds of pre analysis ECG, 12 seconds of ECG
recorded during the analysis and the annotation SHOCK ADVISED or NO SHOCK ADVISED.
The date/time printed on the top of the strip corresponds to the ECG data occurring 6 seconds
before the analysis was started.
The analysis normally consists of three consecutive 3-second ECG rhythm analyses. Each
segment is represented at the top of the strip with either an asterisk (*) for shockable, or a dash
(-) for non shockable. The unit automatically charges to the preconfigured energy level upon
detection of the first shockable segment. If at least two of the three analyses determine that the
patient has a shockable rhythm, the unit will prompt the operator to shock the patient. If two or
more of the three 3-second ECG analyses do not detect a shockable rhythm, the unit alerts the
operator that no shock is advised.
