ZOLL R Series Service Manual

R Series Service Manual

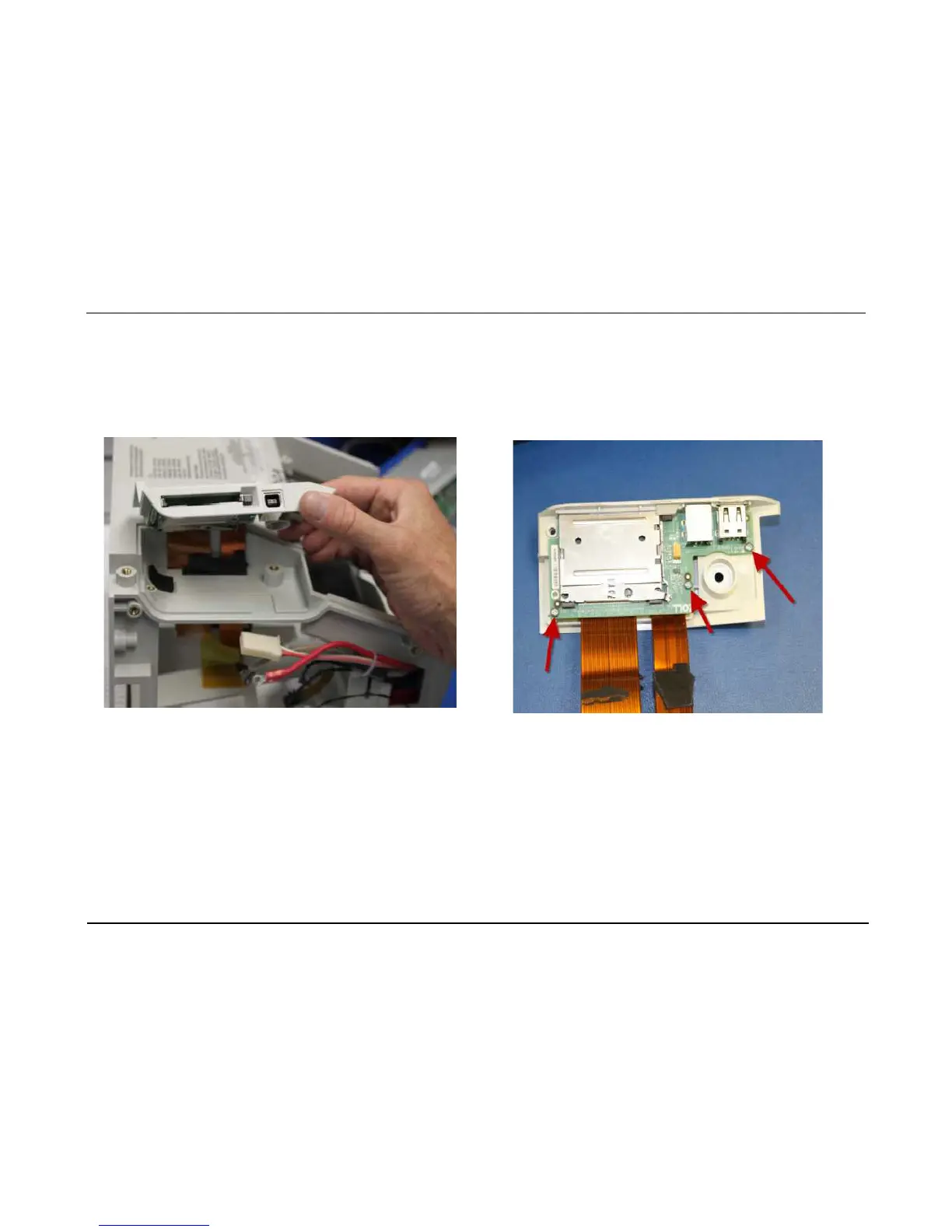

3-36 9650-0903-01 Rev. L
3. Remove foam pads from cables and ferrite beads.
Lift module up and route cables through slot in
housing.
4. Remove 3 screws and slide board back to remove.
Note: During reassembly, reapply foam pieces and secure it to the
housing.
Note: During reassembly, torque to 2 in-lbs.

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
