AED Operation
9650-0904-01 Rev. N ZOLL R Series Operator’s Guide 3–3

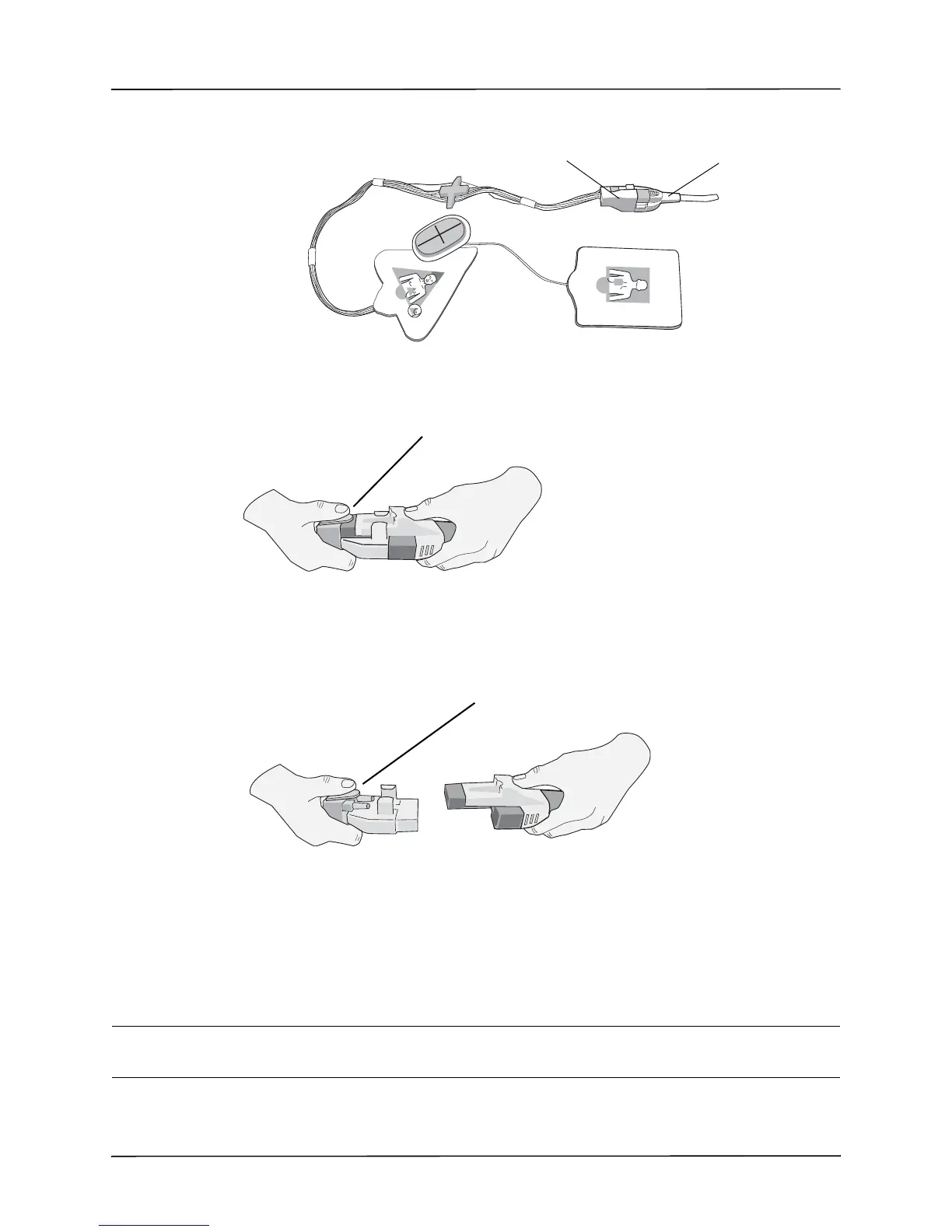

Connect the hands-free therapy electrodes to the OneStep cable if not already connected.
When connecting a OneStep electrode to the OneStep cable, push the two connectors together
until the latch clicks, as shown.
When disconnecting the OneStep electrode and OneStep cable, press down the latch with your
thumb as shown.
The message ATTACH PADS or CHECK PADS will be displayed and energy will not be
delivered if the therapy electrodes are not making good contact with the patient or if a short
circuit exists between the therapy electrodes.
Therapy Electrode Application
WARNING! Poor adherence and/or air under the therapy electrodes can lead to the possibility of
arcing and skin burns.
1. Apply one edge of the pad securely to the patient.
2
1
OneStep cable
hands-free therapy electrodes connector
Latch
Latch

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
