Heart Rate Alarm Activated Format
The summary report function records 6 seconds of pre-alarm patient ECG. Also recorded are
the ECG lead, ECG size, patient's heart rate, actual event time, and date. The date/time printed
on the top of the strip corresponds to the ECG data occurring 6 seconds before the event. If the
pacer is on during this event, the pacing rate and pacing current are also recorded.

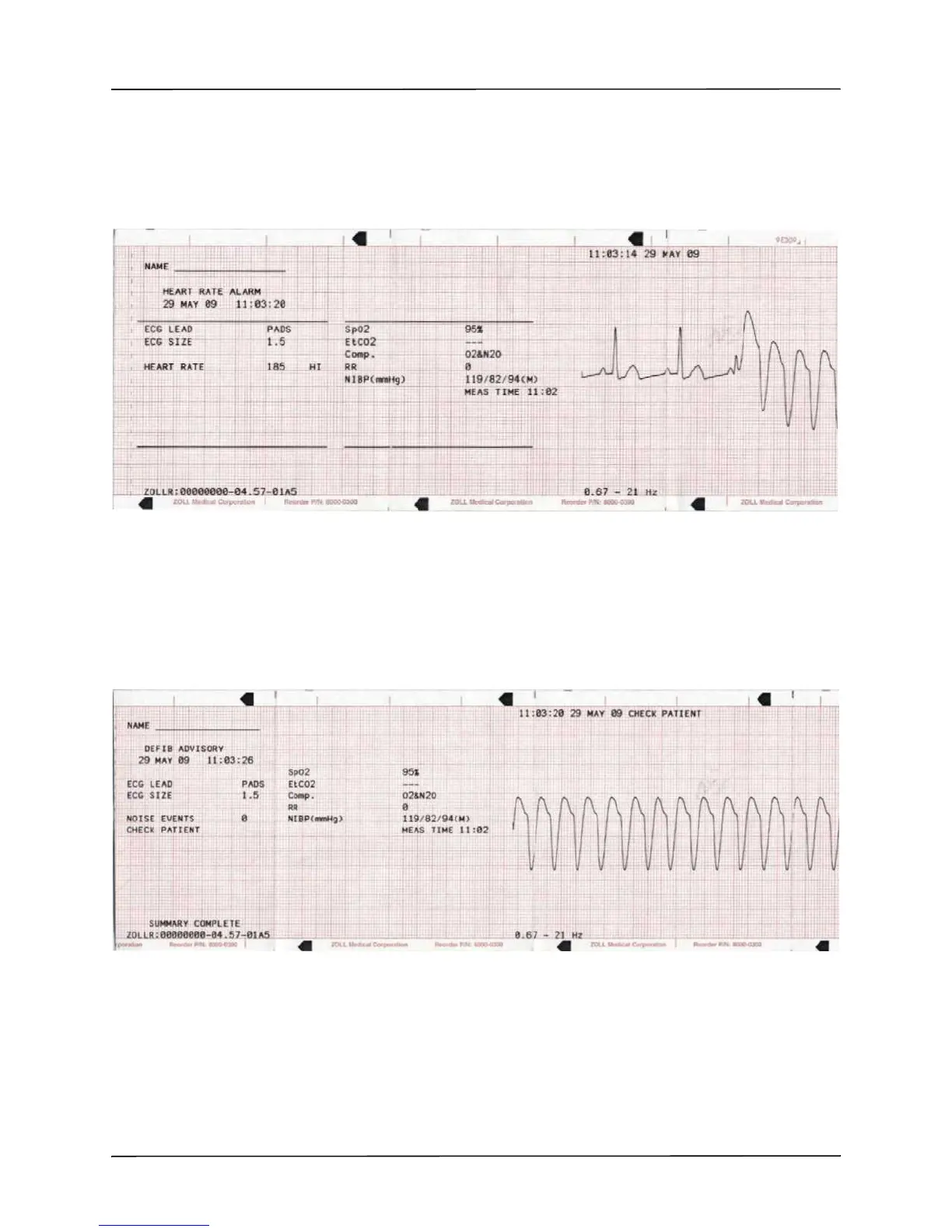

Figure 11-6. Heart Rate Alarm Activated Format
VF Alarm Activated Format
The summary report function records 18 seconds of patient ECG data associated with each VF
alarm. Also recorded are the ECG lead, ECG size, actual event time, the number of noise
events, and the message CHECK PATIENT. The date/time printed on the top of the strip
corresponds to the ECG data occurring 6 seconds before the event.
Figure 11-7. VF Alarm Activated Format

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
