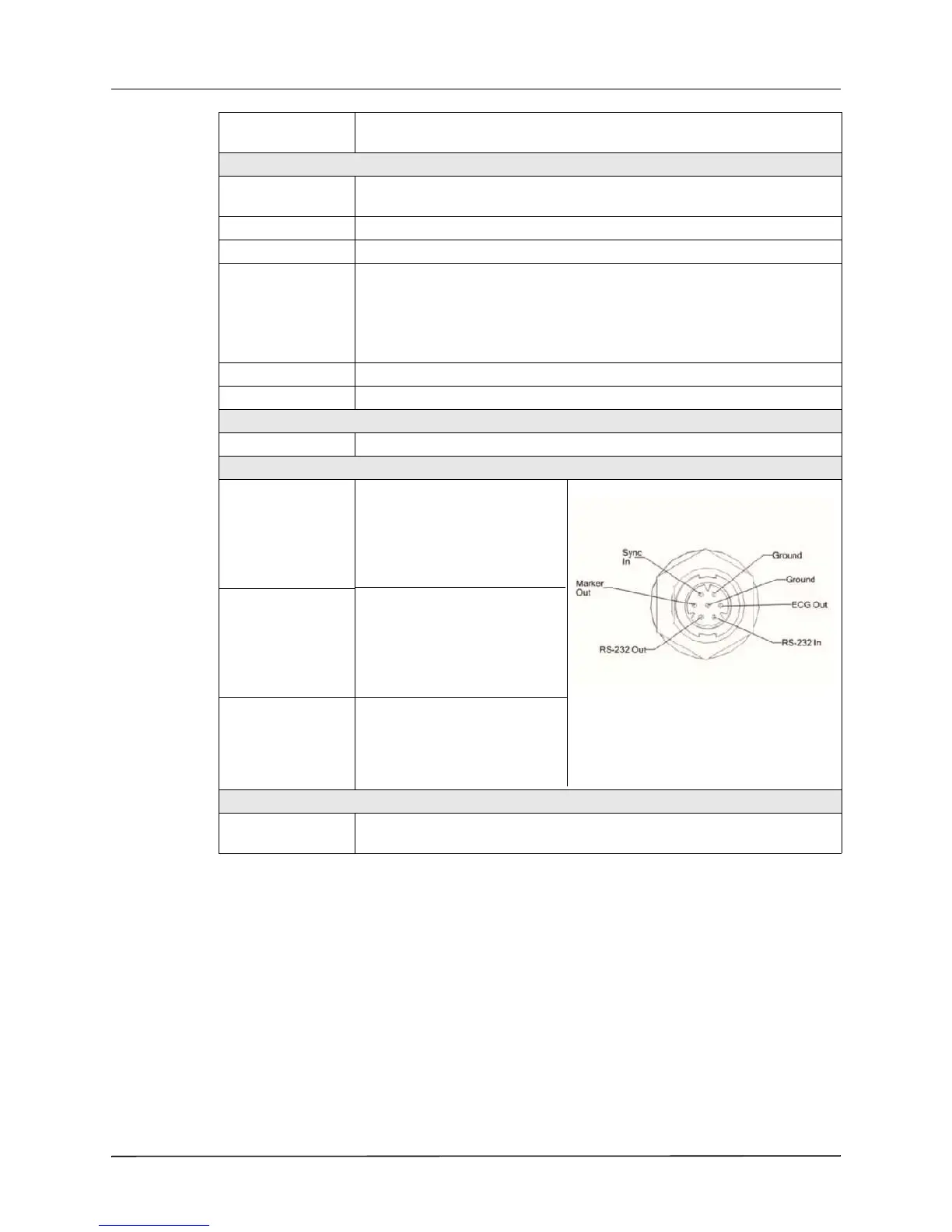

APPENDIX ASPECIFICATIONS
A–6 www.zoll.com 9650-0904-01 Rev. N
Output protection Fully defibrillator-protected and isolated
Recorder and Stripchart Printer
Paper 80 mm thermal (grid width)
90 mm (paper width)
Speed 25 mm/s
Delay 6 seconds
Annotations Time, date, defibrillation energy, heart rate, pacer output, QRS
synchronization marker, ECG size, ECG lead, alarm, defibrillator test result,
analyze ECG, diagnostic bandwidth
Messages: ANALYSIS HALTED, NOISY ECG, SHOCK ADVISED, NO
SHOCK ADV.
Printing method High-resolution, thermal array print head
Printout modes Manual or automatic; user-configurable
Data card
Type Compact flash card
Sync in / Marker out / ECG out
Sync In 0-5 V (TTL Level) pulse, active
high, 5 to 15 msec in duration,
no closer than 200 ms apart.
Energy transfer begins within 25
ms of the leading edge of the
external sync pulse.
0-5 V (TTL Level) pulse, active
high, 10 ms in duration, the
leading edge of the pulse
occurs within 35 ms of the peak
of the R-wave)
1.0 V/cm of deflection on
stripchart recorder
<25 ms delay from patient ECG
input
Marker Out
ECG Out
Wi-Fi Card
ZOLL R Series
Data COMM
Model: 802.11 abgn Wireless LAN Compact Flash Card
R Series Connector
Pinout
SWITCHCRAFT CONXALL
17982-7SG-300
Mating Connector:
SWITCHCRAFT CONXALL
16982-7PG-522
