ZOLL R Series Service Manual

R Series Rectilinear Biphasic Waveform Characteristics
9650-0904-01 Rev. N ZOLL R Series Operator’s Guide A–15
The R Series Rectilinear Biphasic waveform employs the same first and second phase timing,
similar first and second phase currents/voltages, and essentially the same mechanisms for
controlling defibrillation waveshape as the ZOLL M Series
®
defibrillator. The M Series and
R Series defibrillation waveforms are considered substantially equivalent.
Figures A-1 through A-21 show the Rectilinear Biphasic waveforms that are produced when
the R Series defibrillator is discharged into loads of 25, 50, 75, 100, 125, 150, and 175 ohms at
each energy setting.
The vertical axis shows the current in amperes (A); the horizontal axis shows the duration of
time in milliseconds (ms).

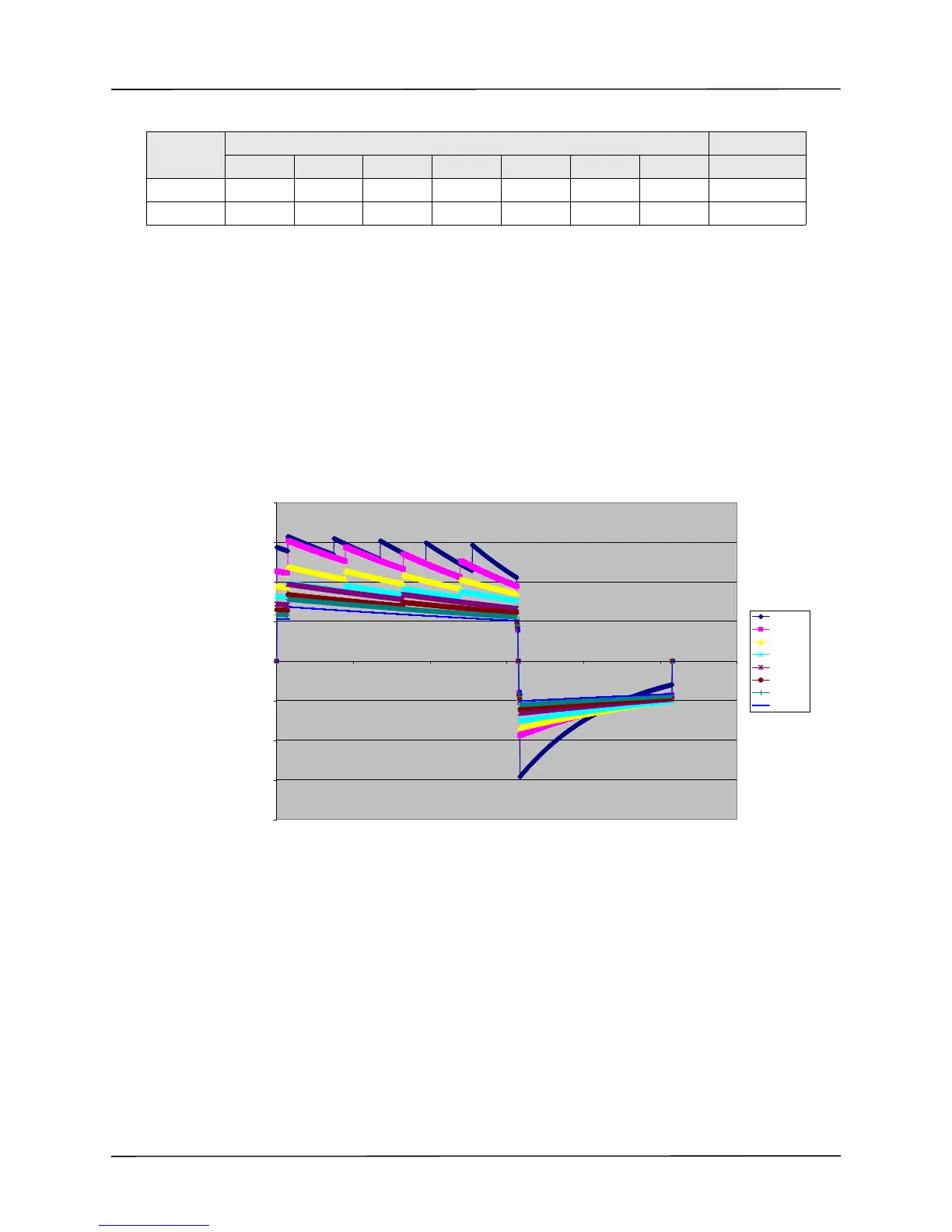

Figure A-1. Rectilinear Biphasic Waveform at 200 Joules
150 J 107 J 164 J 180 J 183 J 188 J 184 J 179 J ±15%
200 J 142 J 230 J 249 J 253 J 269 J 261 J 260 J ±15%
Table A-2. Delivered Energy at Every Defibrillator Setting into a Range of Loads
Selected
Energy
Load
25 50 75 100 125 150 175 Accuracy
-40
-30
-20
-10
0
10
20
30
40
024681012
ms
A
25 Ohm
50 Ohm
75 Ohm
100 Ohm
125 Ohm
150 Ohm
175 Ohm
200 Ohm

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
