ZOLL R Series Service Manual

Clinical Trial Results for the Biphasic Waveform
9650-0904-01 Rev. N ZOLL R Series Operator’s Guide A–29

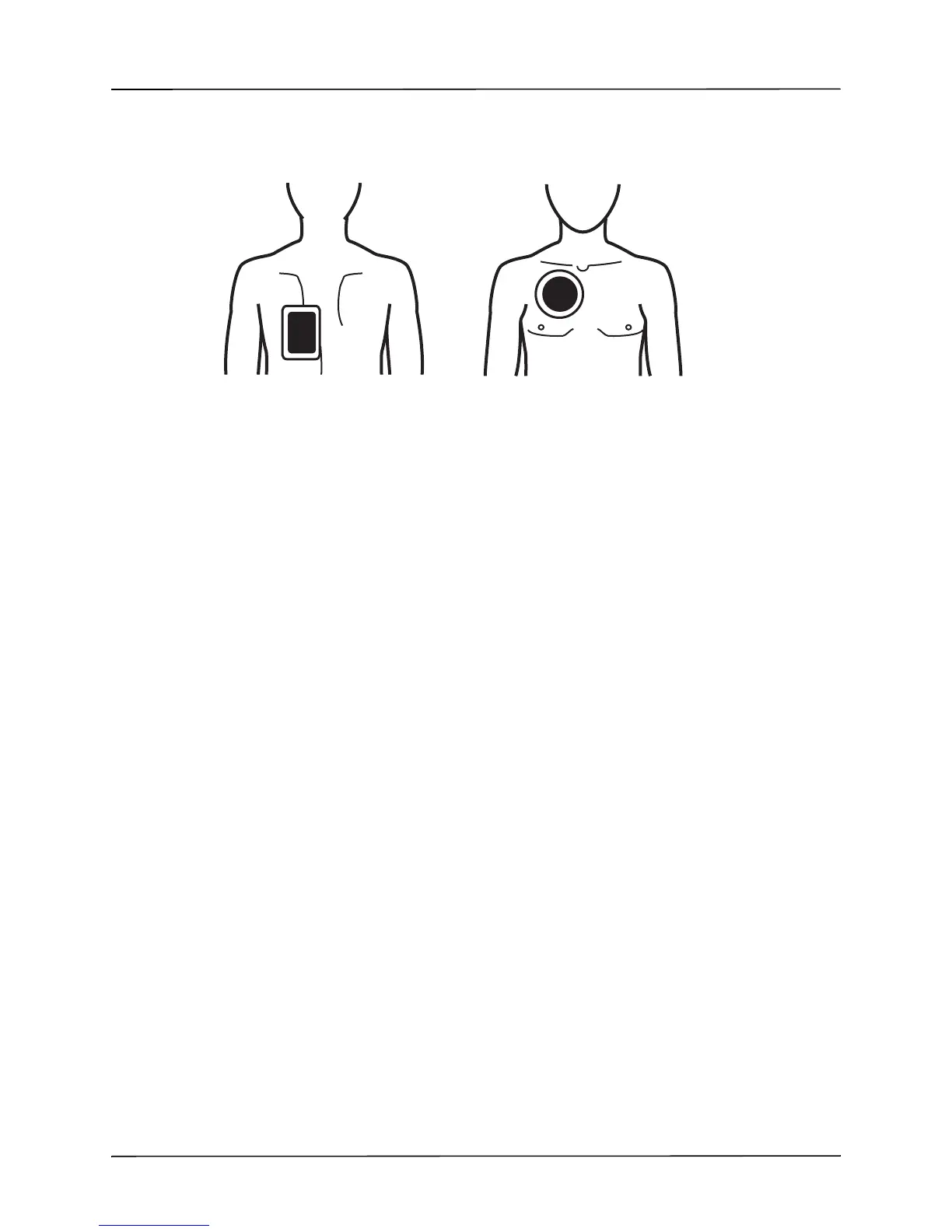

Place the front (apex) pad on the third intercostal space, mid clavicular line on the right anterior
chest. The back/posterior pad should be placed in the standard posterior position on the
patient’s left as shown.
Recommended Anterior/Posterior Placement
Back/
Posterior
Front/
Apex

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
