ZOLL R Series Service Manual

CHAPTER 9ECG MONITORING
9–6 www.zoll.com 9650-0912-01 Rev. N

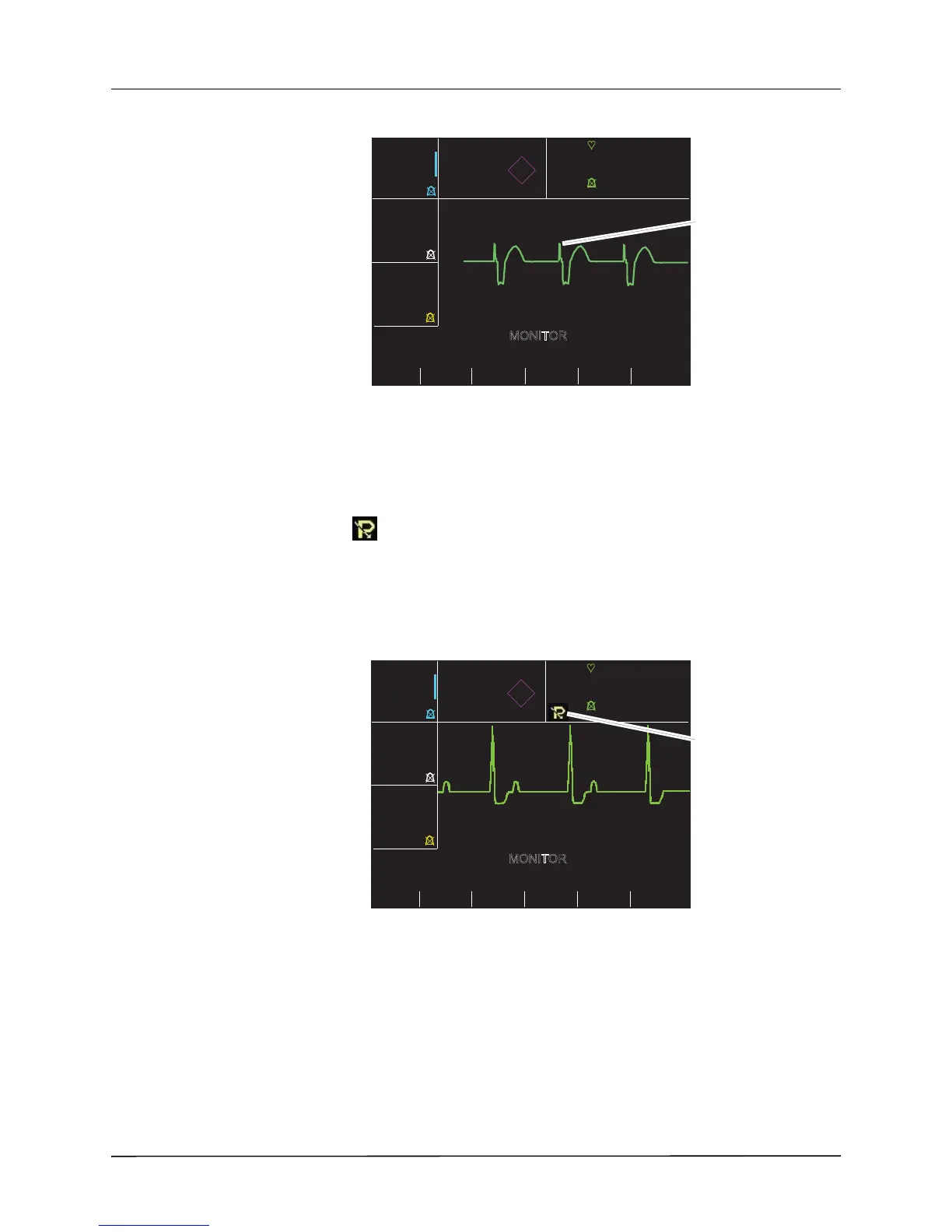

To disable detection of pacemaker spikes:
1. Press the Param softkey.
2. Press ECG.
3. Press Disable Pacer Detect.
The Pacer Off icon ( ) appears in the ECG field to indicate that detection and rejection of
implanted pacemaker pulses by the heart rate detector is disabled. Do not disable the implanted
pacemaker detector when monitoring patients known or suspected to have an implanted pacer.
Disabling pacemaker pulse detection under these conditions can result in erroneously counting
pacemaker pulses as R-waves leading to the display of inaccurate heart rates.
To re-enable detection of pacemaker spikes:
1. Press the Param softkey.
2. Press ECG.
3. Press Enable Pacer Detect.
Param
Report
Data
Test
Log
72
ECG
PADS
x1
SpO2%
0:00
IDLE
Depth
Rate
99
NIBP
mmHg
---
---
---
CO2
mmHg
---
---
RR
Ɔ
Options
Code
Marker
ECG
MONITOR
Alarms
CPR
PPI
Pace Marker
Param
Report
Data
Test
Log
75
ECG
PADS
x1
SpO2%
0:00
IDLE
Depth
Rate
99
NIBP
mmHg
---
---
---
CO2
mmHg
---
---
RR
Ɔ
Options
Code
Marker
ECG
MONITOR
Alarms
CPR
PPI
Pacer Off icon

ZOLL R Series Specifications

General

Defibrillator Type	Manual and AED
Pacing	Yes
ECG Monitoring	Yes
SpO2 Monitoring	Yes
FAST-SpO2	Yes
IP Rating	IP55
Defibrillator Waveform	Biphasic
Energy Levels	1-360 Joules
Display	LCD
Pacer Type	Demand
Pacer Rate	30-180 ppm
Pacer Output	0 – 140 mA
EtCO2 Monitoring	Optional
NIBP Monitoring	Optional
Temperature Monitoring	Optional
Printer	Integrated
Battery Type	Lithium-ion
CPR Feedback	Yes
Data Storage	Internal memory
Connectivity	USB
