R Series Service Manual
9650-0903-01 Rev. L 3-13

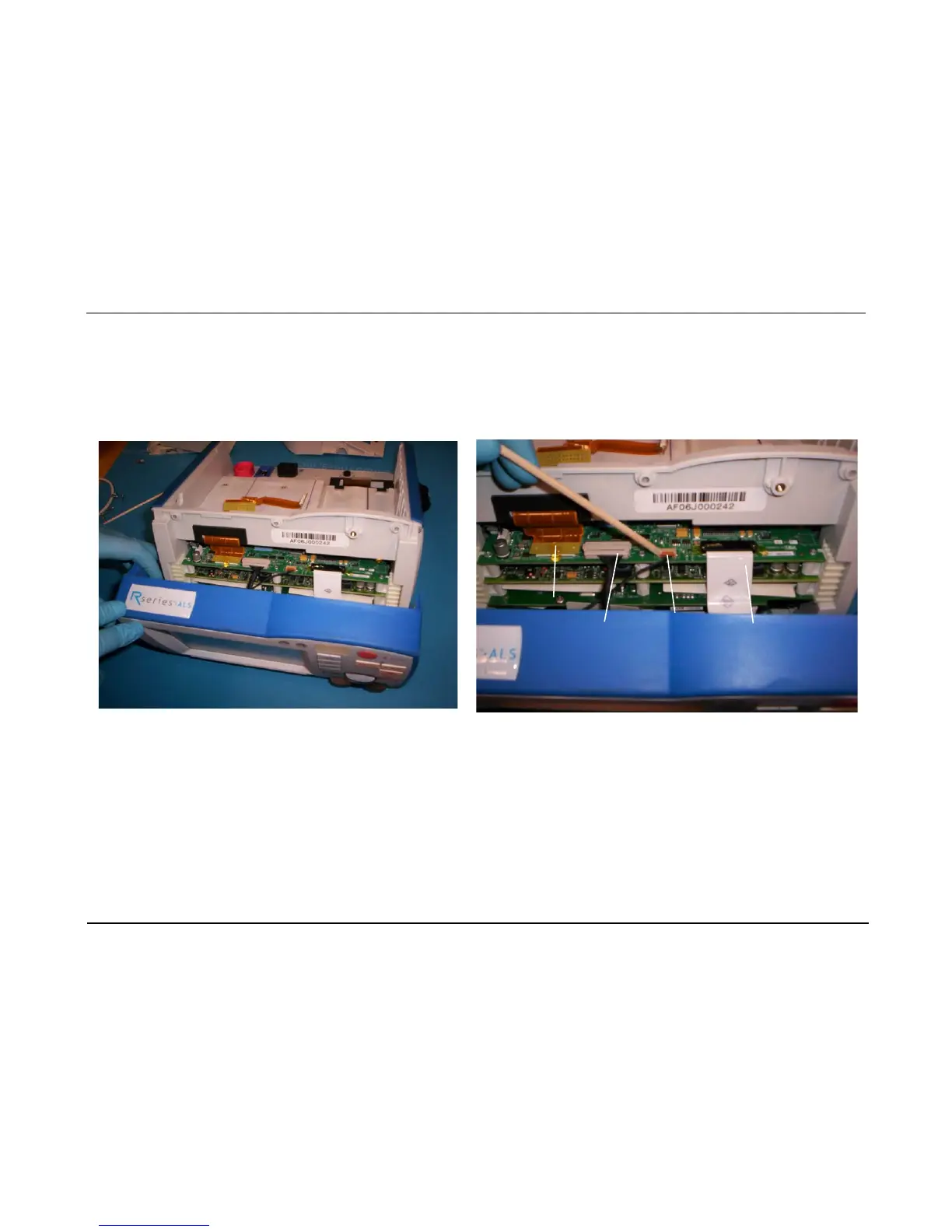

3. Tilt the front panel carefully as shown. 4. Using needlenose pliers, carefully remove the hot melt
glue from the Recorder and Controls cables. Carefully
disconnect the 4 cables shown.
Note: During reassembly, reapply hot melt glue (3M Scotch-
Weld Hot Melt Adhesive 3779 TC Amber.)
Control cable
Backlight
cable
LCD display
Recorder
cable
