R Series Service Manual
9650-0903-01 Rev. L 3-17

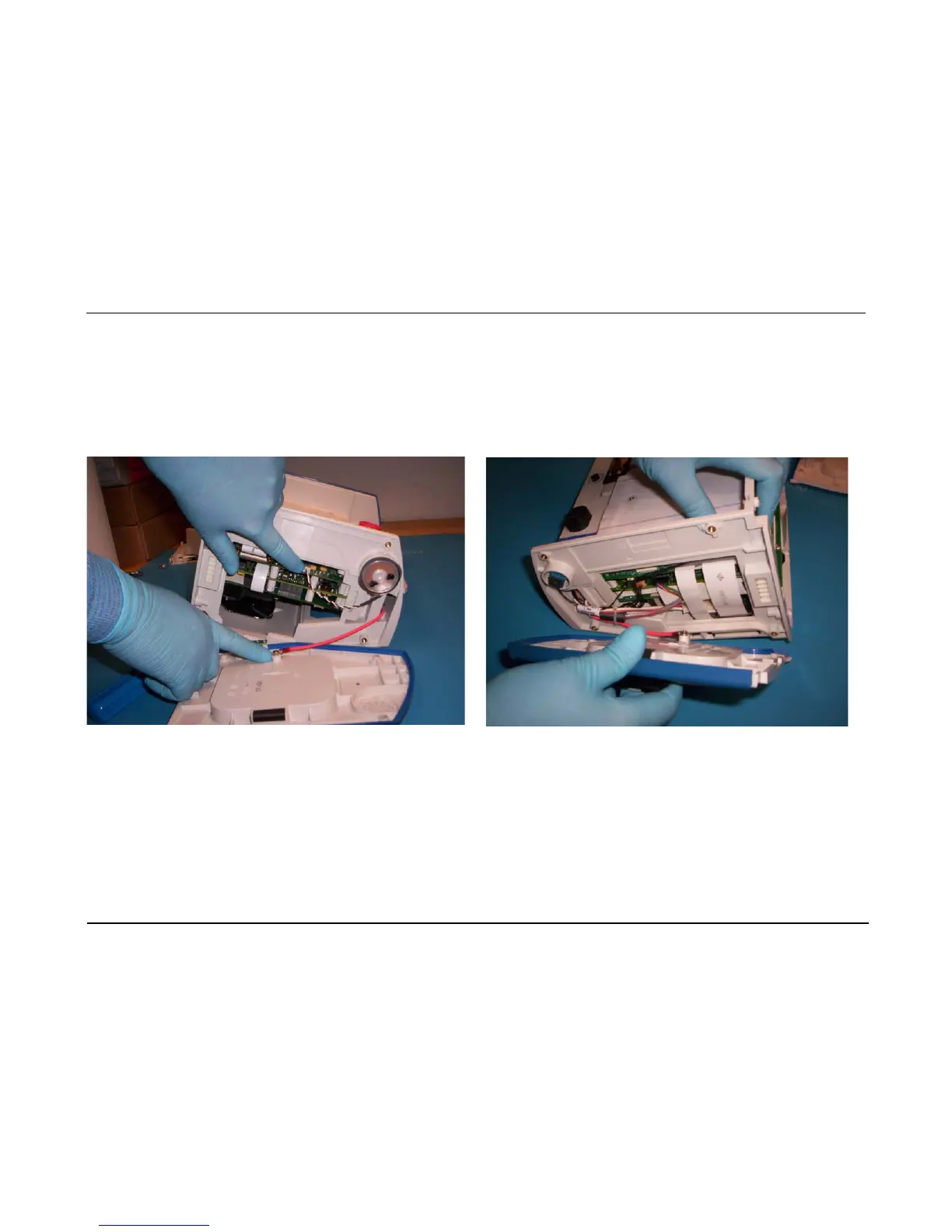

3. Remove the right panel by pulling towards you. The
speaker may or may not come off with the panel.
Disconnect the speaker from the Digital System
Board by pulling straight out. Remove the shorting
wire from the panel by taking off the nut.
4. Remove the left panel by pulling towards you. Remove the
shorting wire from the panel by taking off the nut.
Note: During reassembly, torque nut to 6 in-lbs. Note: During reassembly, torque nut to 6 in-lbs.
